IX5000 Field-Replaceable Units and Country- and Region-Specific Power Connectors
Replacing the Camera—Part Number CTS-5K-CAM-CLSTR=

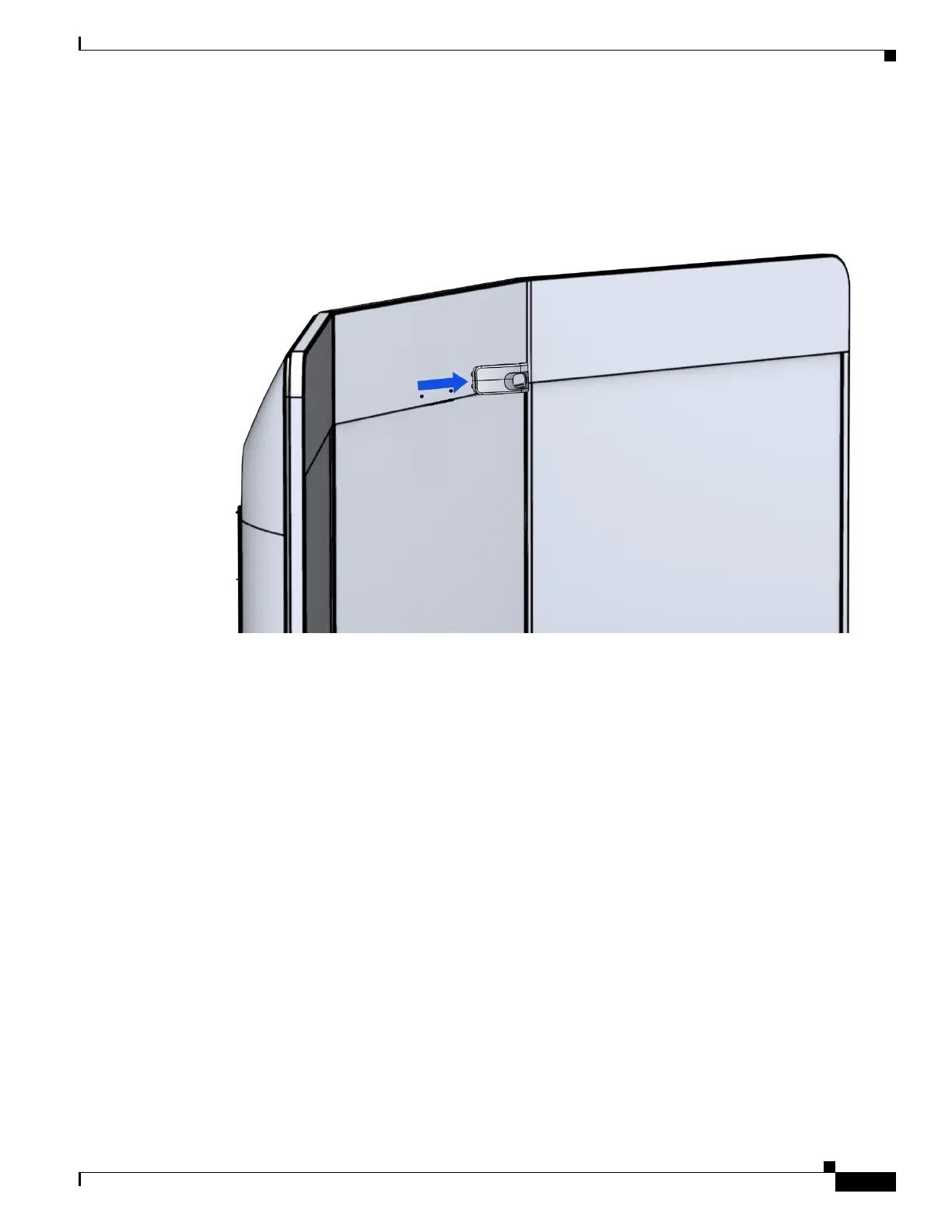

Step 2 Power down the two PDUs mounted on the lower left and lower right display frames.
Step 3 Remove the camera lens hood (camera cover) by pulling it away from the endpoint structure. The cover
attaches to the structure with magnets.
Step 4 While still wearing gloves, remove the upper fascia by grasping the left side of the fascia and pulling it
out. Continue holding the left side while moving towards the center of the system. Gently fold and join
the left side onto the center, making sure not to bend or crease the fascia (it should hold a U shape where
it folds over - not a V shape). Move to the right of the system and continue to pull the fascia outward.
