Connectivity using the Cisco UCS 2104XP Fabric Extender
The option shown in Figure 24 demonstrates how the UCS B22 M3 blade serves connects to a UCS 2104XP
Fabric Extender.
In Figure 24, one port from the VIC 1240 is channeled to 2104XP Fabric Extender A and one is channeled to
2104XP Fabric Extender B. The result is 10 Gbps of bandwidth to each Fabric Extender. The Cisco UCS
Storage Accelerator adapter located in the mezzanine connector acts as an independent device controlled
by CPU 2 and has no network connectivity.

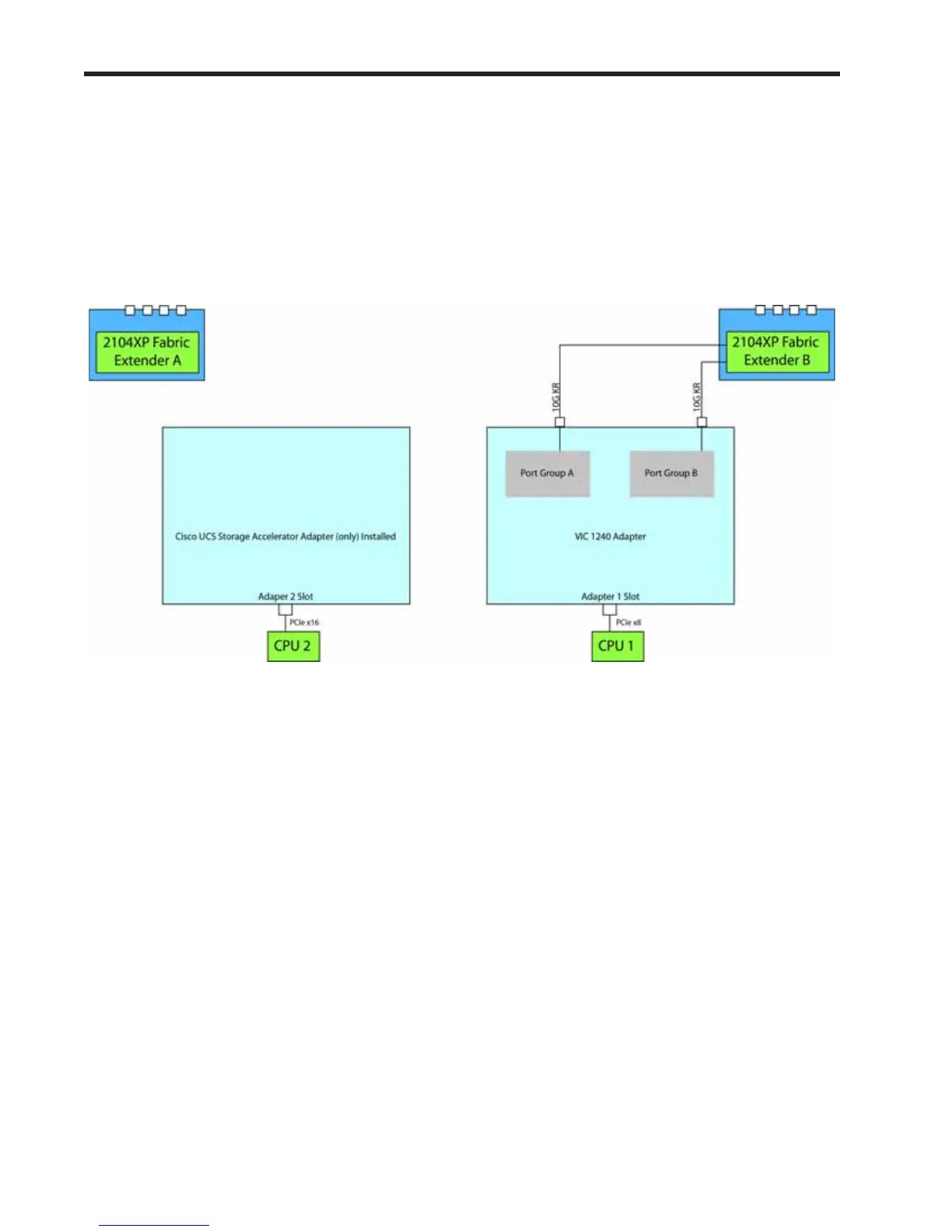

Figure 24 VIC 1240 to UCS 2104XP Fabric Extender (with Cisco UCS Storage Accelerator adapter)
