Cisco UCS C240 M3 High-Density Rack Server (Large Form Factor Hard Disk Drive Model)
OVERVIEW
3
OVERVIEW
The UCS C240 M3 rack server is designed for both performance and expandability over a wide range of
storage-intensive infrastructure workloads from big data to collaboration
Building on the success of the Cisco UCS C210 M2 rack server, the enterprise-class UCS C240 M3 server
further extends the capabilities of Cisco’s Unified Computing System portfolio in a 2U form factor with the
addition of the Intel® E5-2600 series processor family CPUs that deliver significant performance and
efficiency gains. In addition, the UCS C240 M3 server provides 24 DIMM slots, up to twelve 3.5-inch drives
and 4 x 1 GbE LOM to provide outstanding levels of internal memory and storage expandability along with
exceptional performance.
DETAILED VIEWS
Chassis Front View

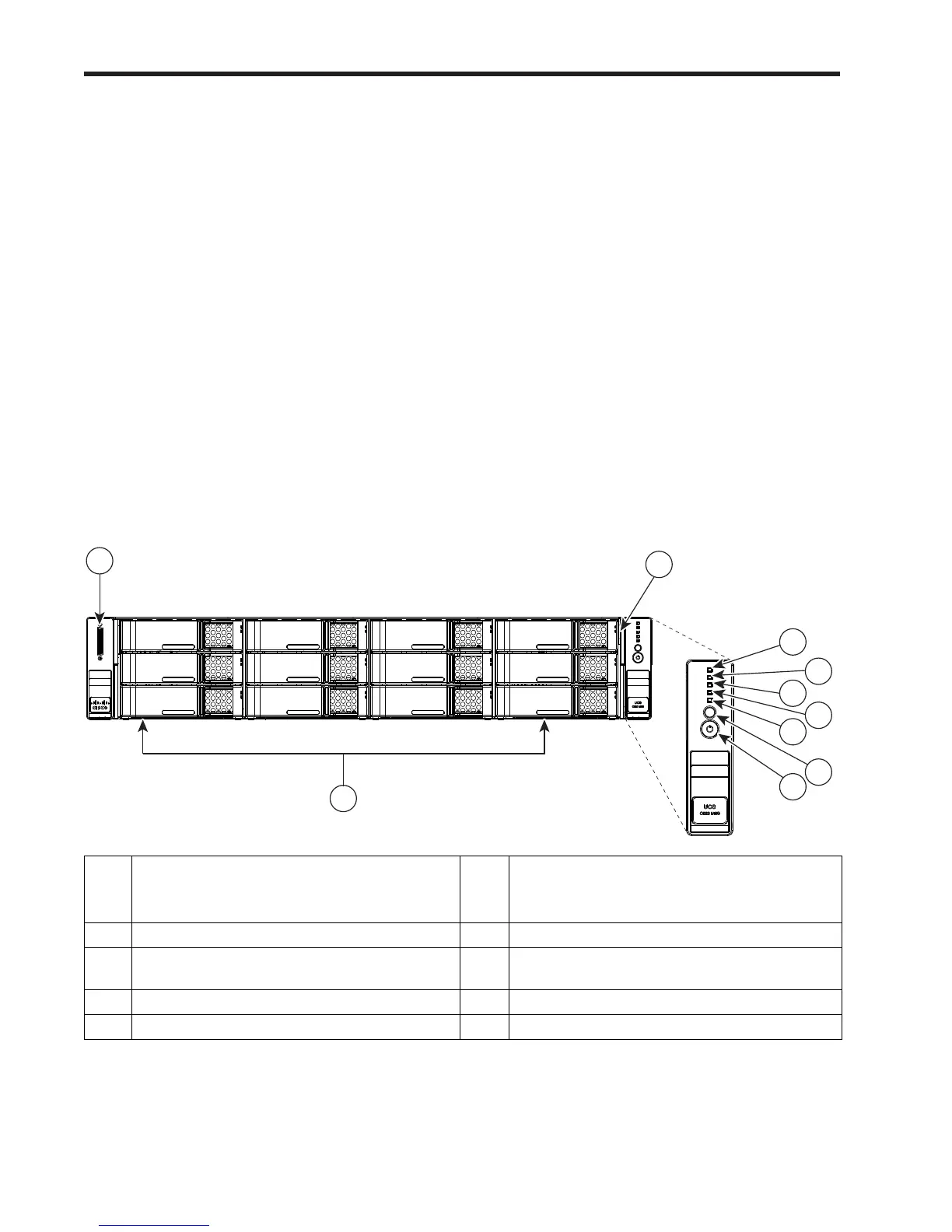

Figure 1 shows the Cisco UCS C240 M3 High-Density LFF Rack Server.
Figure 1 Chassis Front View
For more information about the KVM cable connection, see KVM CABLE, page 54.
1 KVM connector
(used with KVM cable that provides two USB,
one VGA, and one serial connector)
6 Temperature status LED
2 Asset tag (serial number) 7 Fan status LED
3 Drives (up to 12 3.5-inch hot-swappable
drives)
8 System status LED
4 Network link activity LED 9 Identification button/LED
5 Power supply status LED 10 Power button/power status LED
HDD 1
HDD 5
HDD 9
HDD 2
HDD 6
HDD 10
HDD 3
HDD 7
HDD 11
HDD 4
HDD 8
HDD 12
331825
4
5
6
7
8
10
9
3
2
1

Cisco UCS C240 M3 Specifications

General

Processor cores	8
Processor model	E5-2600
Processor frequency	2.7 GHz
Number of processors installed	2
HDD size	2.5 \
RAID support	Yes
HDD interface	-
Optical drive type	No
Total storage capacity	300 GB
Maximum storage capacity	- TB
Number of HDDs installed	16
Memory slots	24
Internal memory	96 GB
Memory clock speed	1866 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	- GB
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
PCI Express x8 slots	3
Chassis type	Rack (2U)
Power supply	650 W
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 12000 m
Operating temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	84714100

Weight and Dimensions

Depth	712 mm
Width	445 mm
Height	87 mm
