CONTOUR
ACTIVE CONTOUR
Mechanischer Ausgleich der PICK UPRegelimpulsAuflagendrucksteuerung
35
PICK UP
36
PICK UP

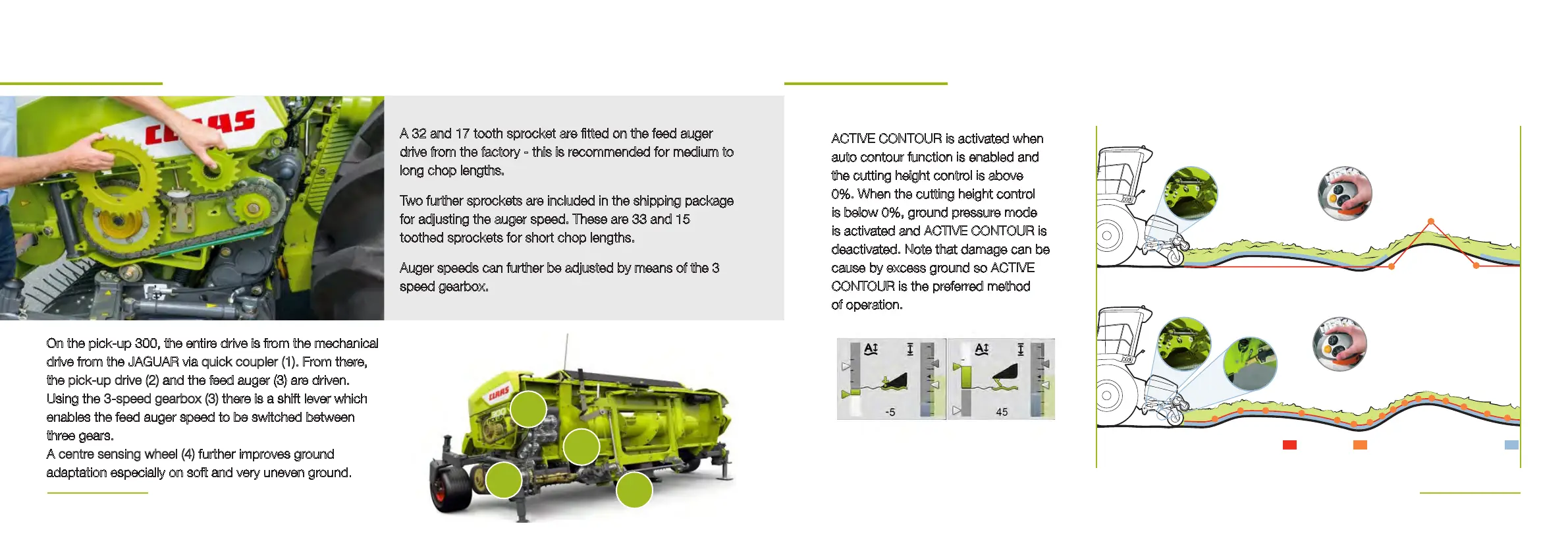

ACTIVE CONTOUR is activated when
auto contour function is enabled and
the cutting height control is above
0%. When the cutting height control
is below 0%, ground pressure mode
is activated and ACTIVE CONTOUR is
deactivated. Note that damage can be
cause by excess ground so ACTIVE
CONTOUR is the preferred method
of operation.
A 32 and 17 tooth sprocket are tted on the feed auger
drive from the factory - this is recommended for medium to
long chop lengths.
Two further sprockets are included in the shipping package
for adjusting the auger speed. These are 33 and 15
toothed sprockets for short chop lengths.
Auger speeds can further be adjusted by means of the 3
speed gearbox.
On the pick-up 300, the entire drive is from the mechanical
drive from the JAGUAR via quick coupler (1). From there,
the pick-up drive (2) and the feed auger (3) are driven.
Using the 3-speed gearbox (3) there is a shift lever which
enables the feed auger speed to be switched between
three gears.
A centre sensing wheel (4) further improves ground
adaptation especially on soft and very uneven ground.
1
2
3
4
