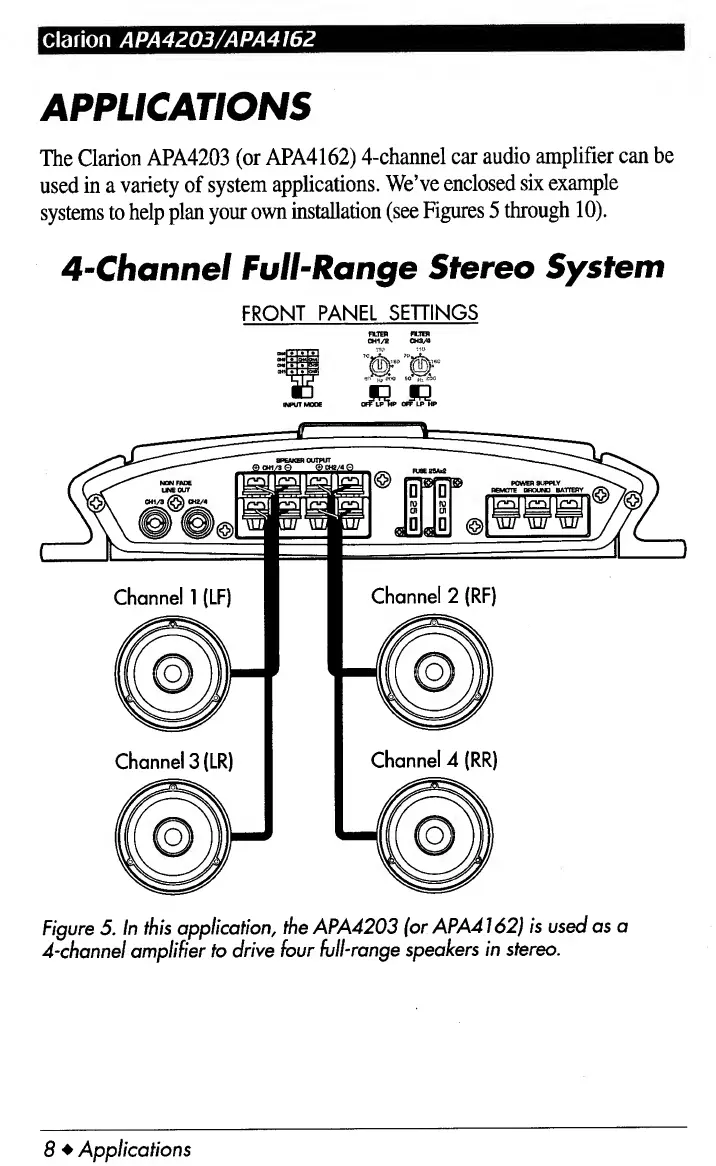

APPLICATIONS
The
Clarion
APA4203
(or
APA4162)
4-channel
car
audio
amplifier
can
be
used
in
a
variety
of
system
applications.
We’ve
enclosed
six
example
systems
to
help
plan
your
own
installation
(see
Figures
5
through
10).
4-Channel
Full-Range
Stereo
System
FRONT
PANEL
SETTINGS
Figure
5.
In
this
application
,
theAPA4203
(or
APA4162)
is
used
as
a
4-channel
amplifier
to
drive
four
full-range
speakers
in
stereo.
8
♦
Applications
7
9
