Clarion DB189RGMP Service Manual

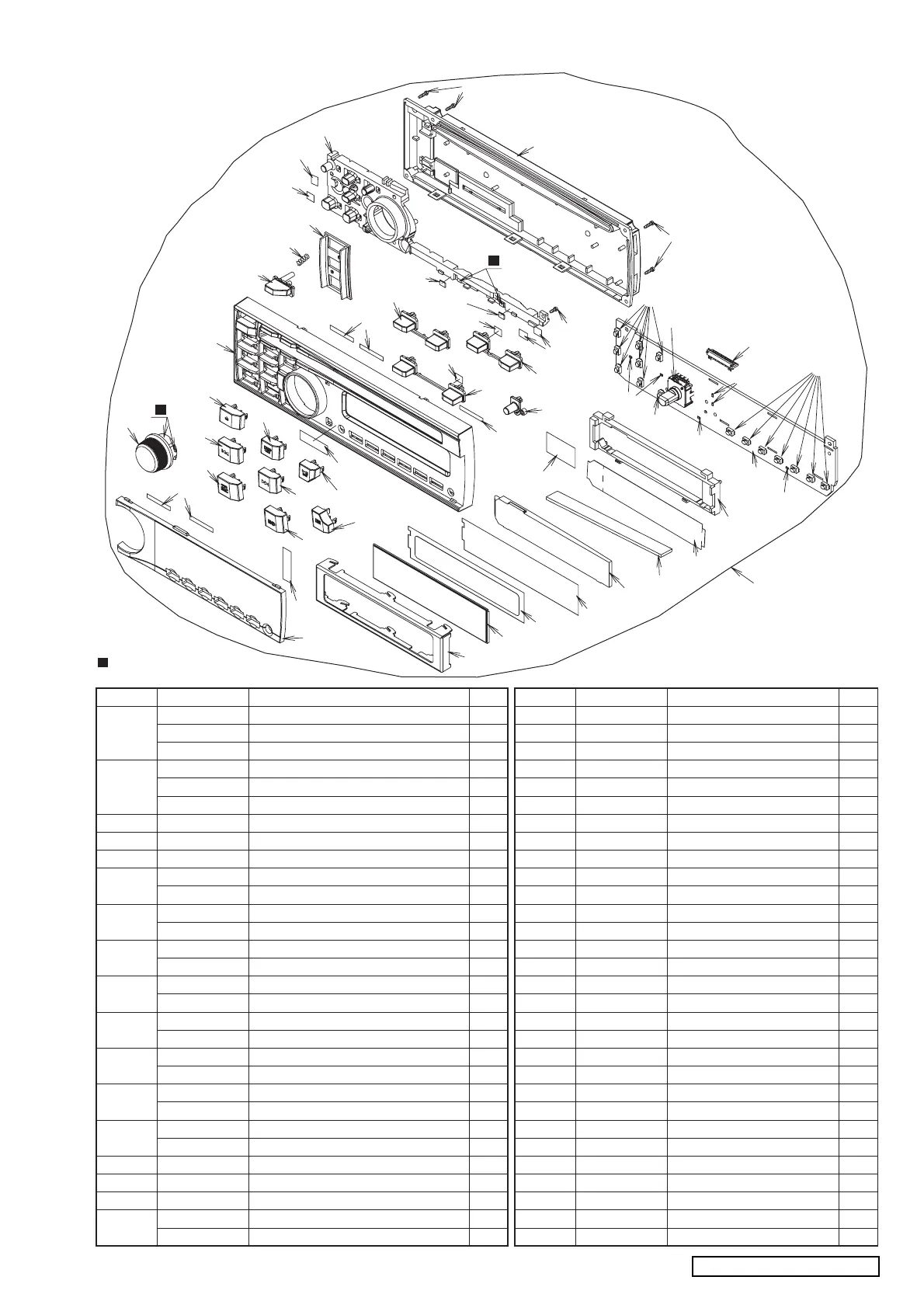

EXPLODED VIEW / PARTS LIST
DCP section
Note)Several different parts of the same
reference number are alternative parts.
One of those parts is used in the set.
Note) SANKOL uses CFD-409Z
: SANKOL application
1
1-1
1-2
1-3
1-4
1-5
1-6
1-7
1-8
1-10
1-9
1-11
1-12
1-43
1-25
1-26
1-27
1-28
1-29
1-30
1-37
1-31
1-38
1-34
1-32
1-33
1-34
1-35
1-34
1-34
1-33
1-36
1-33
1-19
1-18
1-18
1-17
1-13
1-14
1-15
1-16
1-41
1-40
1-24
1-22
1-21
1-20
1-23
1-39
1-39
1-44
1-45
1-46
1-46
NO. PART NO. DESCRIPTION Q'TY NO. PART NO. DESCRIPTION Q'TY
1 DCP-622-700 DCP ASSY
(
PE-3050E-A
)
1 1-17 335-8226-00 ILLUMI PLATE 1
DCP-623-700 DCP ASSY
(
PE-3050E-B
)
1 1-18 716-0872-62 SCREW
(
M1.7X6
)
4
DCP-624-700 DCP ASSY
(
PE-3050E-C
)
1 1-19 335-8225-00 REAR COVER 1
1-1 373-1162-00 DIAL-CVR
(
PE-3050E-A
)
1 1-20 716-1764-50 PAD SCREW
(
M1.7X6
)
1
373-1162-07 DIAL-CVR
(
PE-3050E-B
)
1 1-21 382-8588-00 BUTTON
(
1/3
)
1
373-1162-08 DIAL-CVR
(
PE-3050E-C
)
1 1-22 382-8617-00 BUTTON
(
4/6
)
1
1-2 347-7999-00 DOUBLE FACE 1 1-23 382-8589-00 BUTTON
(
2/5
)
1
1-3 347-8265-00 DOUBLE FACE 2 1-24 382-8584-00 BUTTON
(
SOUND
)
1
1-4 380-5717-01 KNOB 1 1-25 331-4527-00 LCD COVER 1
1-5 382-8583-00 BUTTON
(
SRC
)(
PE-3050E-A
)
1-26 379-1401-41 INDICATOR
(
LCD
)
1
382-8583-01 BUTTON
(
SRC
)(
PE-3050E-B/C
)
1 1-27 347-8410-00 BLACK FILM 1
1-6 382-8586-00 BUTTON
(
FW
)(
PE-3050E-A
)
1-28 347-8411-00 SHADE FILM 1
382-8586-01 BUTTON
(
FW
)(
PE-3050E-B/C
)
1 1-29 335-8227-00 LCD ILLUMI 1
1-7 382-8579-00 BUTTON
(
EJECT
)(
PE-3050E-A
)
1 1-30 345-6177-00 RUBBER PAR
T
1
382-8579-01 BUTTON
(
EJECT
)(
PE-3050E-B/C
)
1 1-31 335-8228-00 LCD HOLDER 1
1-8 382-8580-00 BUTTON
(
DISP
)(
PE-3050E-A
)
1-32 ----------- SWITCH PWB 1
382-8580-02 BUTTON
(
DISP
)(
PE-3050E-B/C
)
1 1-33 013-6312-50 TACT SWITCH 15
1-9 382-8585-00 BUTTON
(
FF
)(
PE-3050E-A
)
1-34 001-7114-90 DIODE 6
382-8585-01 BUTTON
(
FF
)(
PE-3050E-B/C
)
1-35 076-0615-50 PLUG 1
1-10 382-8581-00 BUTTON
(
BND
)(
PE-3050E-A
)
1-36 016-9901-02 VR W/SHAFT 1
382-8581-02 BUTTON
(
BND
)(
PE-3050E-B/C
)
1 1-37 347-8412-00 REFLECTOR 1
1-11 382-8582-00 BUTTON
(
TA
)(
PE-3050E-A
)
1-38 347-8413-00 FILM 1
382-8582-03 BUTTON
(
TA
)(
PE-3050E-B/C
)
1-39 347-8414-00 FILM 3
1-12 382-8578-00 BUTTON
(
ENT
)(
PE-3050E-A
)
1-40 347-8421-00 SHADE 1
382-8578-02 BUTTON
(
ENT
)(
PE-3050E-B/C
)
1 1-41 347-8426-00 FILM 1
1-13 370-6321-00 ESCUTCHEON 1-42 347-8428-00 FILM
(
PE-3050E-A
)
1
1-14 382-8587-00 BUTTON
(
RELEASE
)
1 1-43 347-8429-00 FILM 1
1-15 750-6858-00 SPRING
(
RELEASE
)
1 1-44 347-8431-00 FILM 1
1-16 335-8224-00 BAR ILLUMI
(
PE-3050E-A
)
1-45 347-8481-00 FILM 2
335-8224-01 BAR ILLUMI
(
PE-3050E-B/C
)
1-46 345-6224-00 CUSHION 2
1
1
1
1
1
1
1
1
1
1
1
1
1-42 (PE3050EA)
-7-
DB188/189RMP/DB189RGMP
