Clarion M275 User Manual

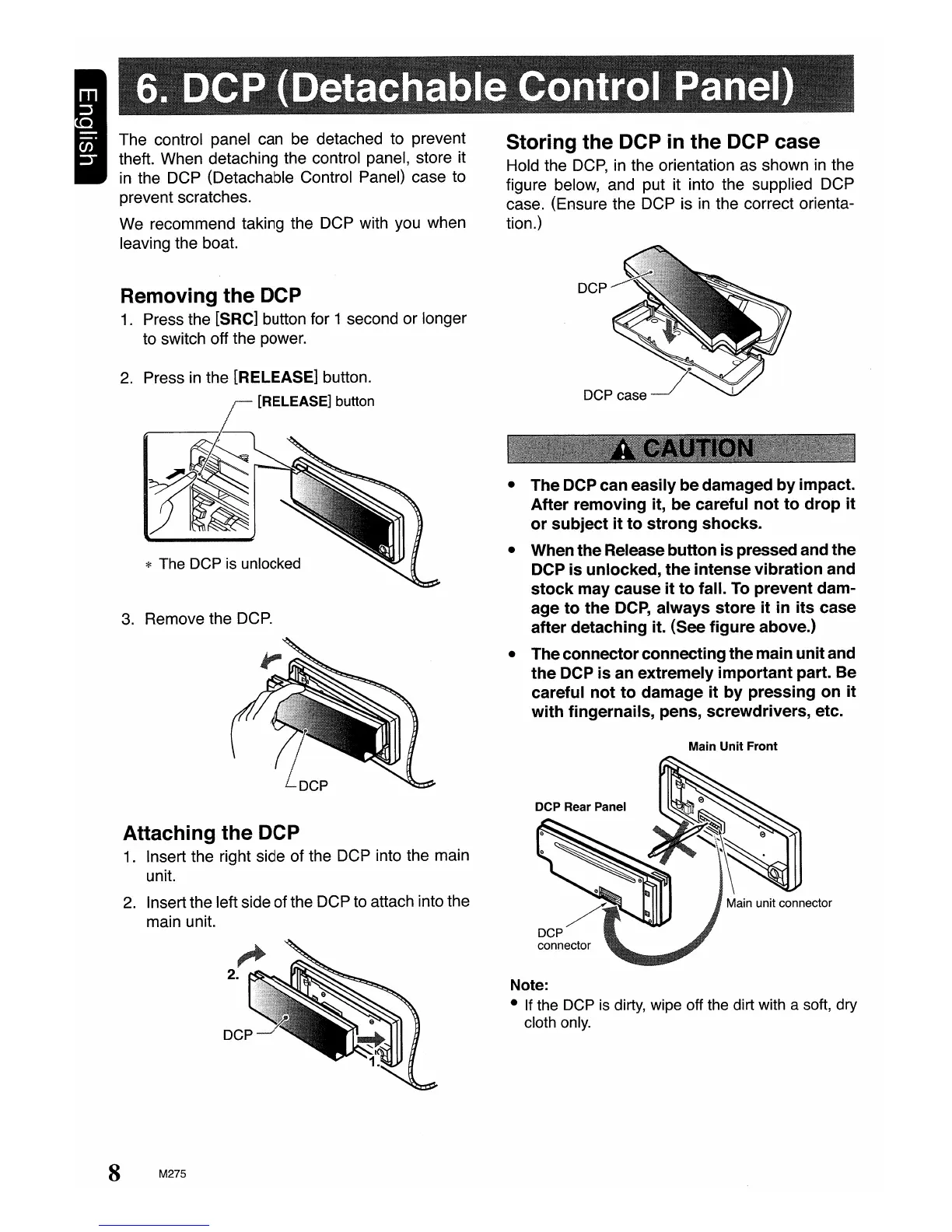

The control panel can be detached to prevent
theft. When detaching the control panel, store it
in the DCP (Detachable Control Panel) case to
prevent scratches.
We recommend taking the DCP with you when
leaving the boat.
Removing the DCP
1. Press the [SRC] button for 1 second or longer
to switch off the power.
2. Press in the [RELEASE] button.
* The DCP is unlocked
3. Remove the DCP.
Attaching the DCP
1. Insert the right side of the DCP into the main
unit.
2. Insert the left side of the DCP to attach into the
main unit.
8 M275
Storing the DCP in the DCP case
Hold the DCP, in the orientation as shown in the
figure below, and put it into the supplied DCP
case. (Ensure the DCP is in the correct orienta-
tion.)
DCP
DCP case
• The DCP can easily be damaged by impact.
After removing it, be careful not to drop it
or subject it to strong shocks.
• When the Release button is pressed and the
DCP is unlocked, the intense vibration and
stock may cause it to fall. To prevent dam-
age to the DCP, always store it in its case
after detaching it. (See figure above.)
• The connectorconnecting the main
unit and
the DCP is an extremely important part. Be
careful not to damage it by pressing on it
with fingernails, pens, screwdrivers, etc.
Main Unit Front
Note:
• If the DCP is dirty, wipe off the dirt with a soft, dry
cloth only.
