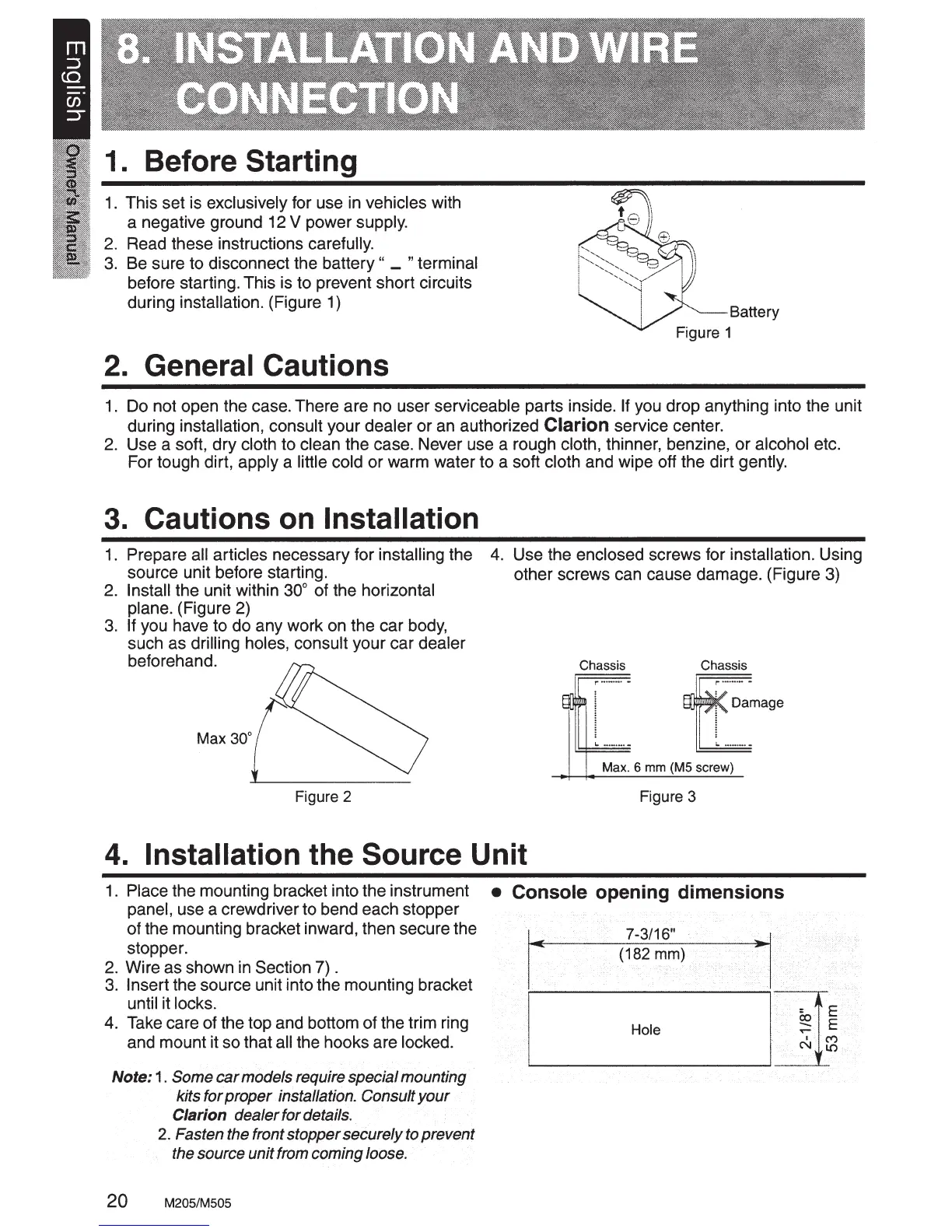

1.
Before Starting
1.
This set is exclusively for use in vehicles with
a negative ground 12 V power supply.
2.
Read these instructions carefully.
3.
Be sure to disconnect the
battery"
_ "terminal
before starting. This is to prevent short circuits
during installation. (Figure
1)
2.
General Cautions
Battery
Figure 1
1.
Do not open the case. There are no user serviceable parts inside. If you drop anything into the unit
during installation, consult your dealer or an authorized
Clarion service center.
2.
Use a soft, dry cloth to clean the case. Never use a rough cloth, thinner, benzine, or alcohol etc.
For tough dirt, apply a little cold or warm water to a soft cloth and wipe off the dirt gently.
3.
Cautions
on
Installation
1.
Prepare all articles necessary for installing the
source unit before starting.
2.
Install the unit within
30°
of the horizontal
plane. (Figure 2)
3.
If
you have to do any work on the car body,
such as drilling holes, consult your car dealer
beforehand.
Figure 2
4.
Use the enclosed screws for installation. Using
other screws can cause damage. (Figure 3)
Chassis
Max. 6 mm (MS screw)
Figure 3
4.
Installation the Source Unit
1.
Place the mounting bracket into the instrument • Console opening dimensions
panel, use a crewdriver to bend each stopper
of the mounting bracket inward, then secure the
stopper.
2.
Wire as shown in Section
7).
3.
Insert the source unit into the mounting bracket
until it locks.
4. Take care of the top and bottom of the trim ring
and mount it so that all the hooks are locked.
Note: 1.
Some
car models require special mounting
kits for proper installation. Consult your
Clarion dealer for details.
2.
Fasten
the
front stopper securely toprevent
the
source unit from coming
loose.
20 M205/M505
