Clarion XC6210 User Manual

4 XC6210/XC6410
English
Owner’s Manual

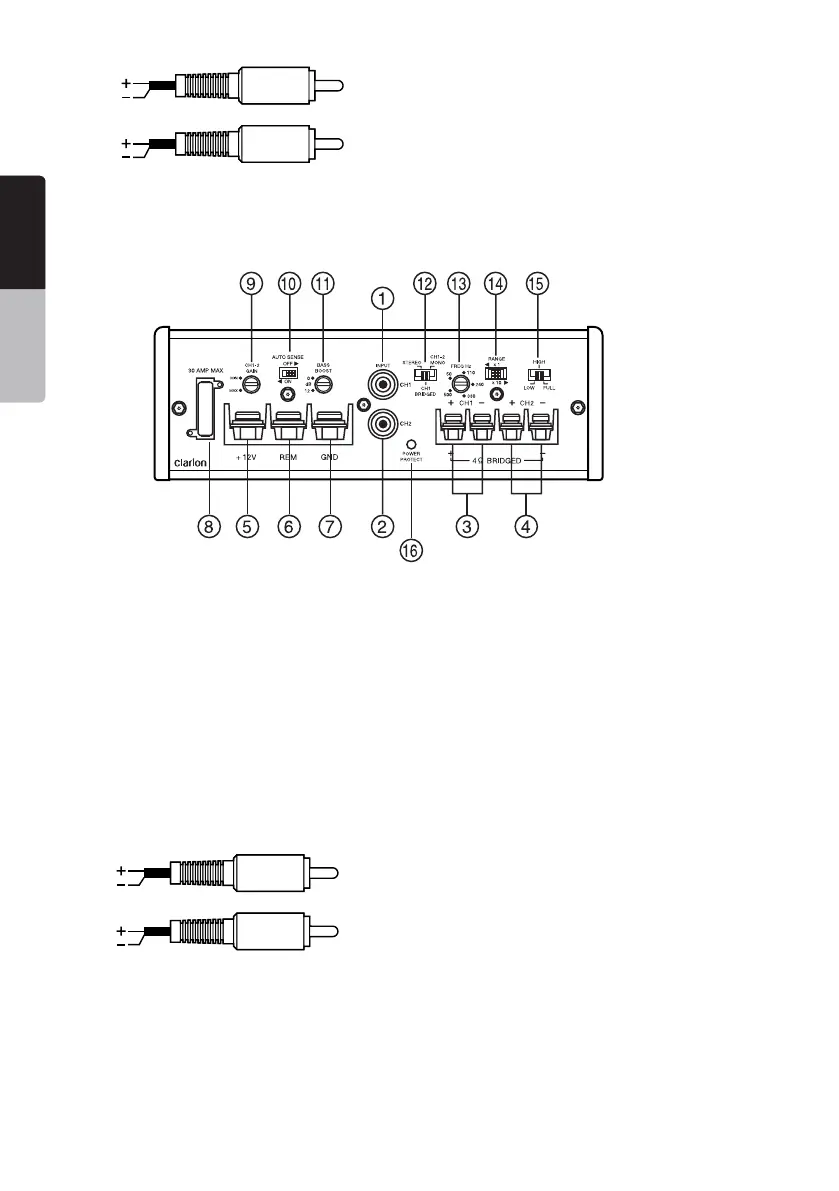

1. CH1RCAInput
2. CH2RCAInput
3. CH1SpeakerOutput
4. CH2SpeakerOutput
5. +12VDCInputBattery
6. RemoteTurn-onInput
7. Ground(ChassisGround)
8. 30AmpATCFuse
9. CH1/CH2InputGainControl
10.AutoSense(AutomaticPower-on/off)
11.BassBoost
12.OutputModeSelectorSwitch
 (STEREO/CH1Bridged/CH1-2
 MONO)
13.CH1/CH2CrossoverFrequency
 Selector(50Hz~500Hz),ifx10Range
 Selected(500Hz~5kHz)
14.CrossoverRangeSelection(x1or
 x10)multiplier
15.CH1/2CrossoverModeSelection
 (LowPass,HighPass,FullRange)
16.PowerProtect(StatusLED)
TheRCAconnectionsarecorrosionresistantforoptimumperformanceandlowsignal
loss.TheRCAconnectorsarelabeledCH1,CH2[forXC6410:CH3,andCH4].
InapplicationswhereRCAsignalsarenotpresent,thespeakerleveloutputfromthe
headunitcanbeused.(High-levelspeakeroutputtoRCAinputadaptersincluded).
XC6210
Red
White
Red
Black
White
Blue
SpeakerleveladaptorcableRCAinputsarefully
balancedandcanacceptRCApreamplevels.
Withspeakerleveladaptorcabletheinputs
willacceptspeakerlevels.(HighLevelRCA
SpeakerAdapterIncluded)
Red
White
Red
Black
White
Blue
SpeakerleveladaptorcableRCAinputsarefully
balancedandcanacceptRCApreamplevels.
Withspeakerleveladaptorcabletheinputswill
acceptspeakerlevels.(HighLevelRCASpeaker
AdapterIncluded)
