UNPACKING & ASSEMBLY
UNPACKING
Before assembling, please check contents against the following list and
advise your dealer immediately if any parts are missing. Refer to parts list and
diagram on pages 21 & 22.
1 x Barrel Stove
1 x Ash Box
1 x Fixings Kit
1 x Cooking Lid
1 x Lid Handle
1 x Wooden Handle
1 x Flue Connection c/w Gasket
TOOLS REQUIRED
Phillips screwdriver 11mm spanner
A full range of flue pipes and fire cement is available from your dealer.
WARNING: DUE TO THE WEIGHT OF THE STOVE IT IS RECOMMENDED
THAT TWO PEOPLE PERFORM THE UNPACKING AND ASSEMBLY.
Unpack the stove and remove packing materials.
Open the door and remove the lid, chimney connector and ashpan from
inside the stove.
1. Slide the ashpan into place below the grate as in Fig 1.
2. Attach the chimney flue connector as shown in Fig 2 using the screws
supplied. Ensure the fireproof gasket is correctly seated in the recess.
3. Place cooking lid in position on the top of the stove.
4. Place stove in the desired location as shown in POSITIONING AND
INSTALLATION.

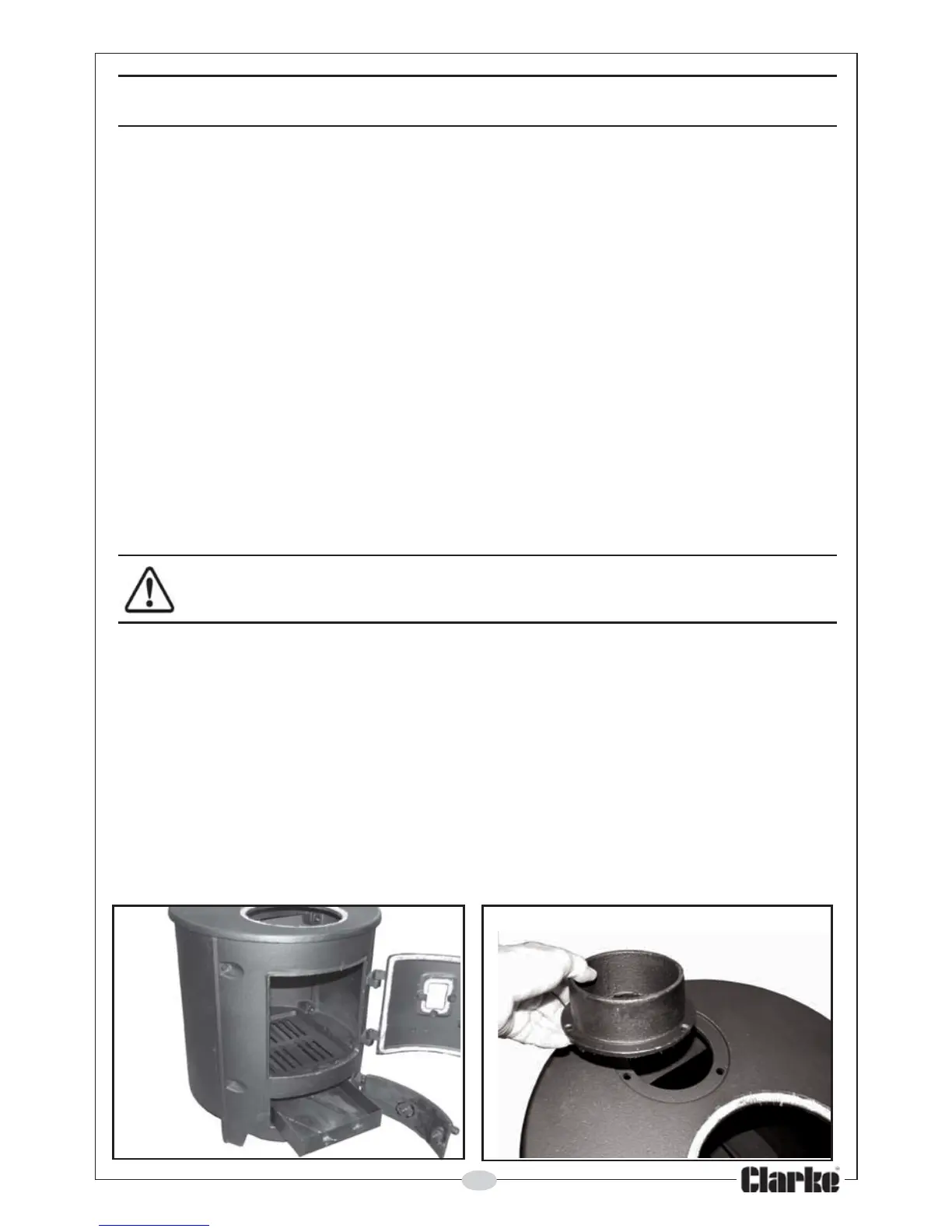

Fig 1
Fig 2
