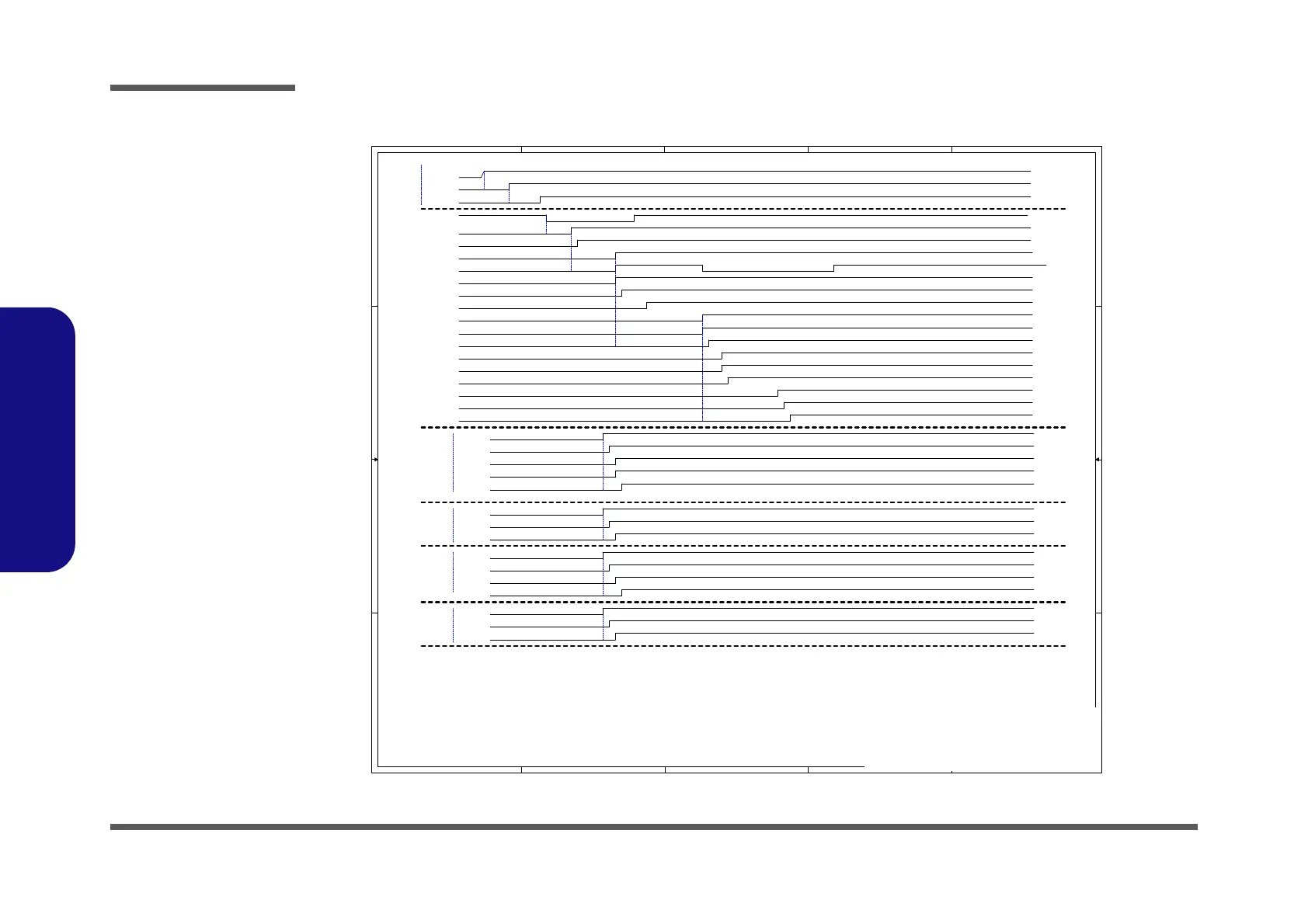

NP50PNP POWER ON SEQUENCE EVT M/B(BIOS E3, EC E3)
DSW_PWROK 78.79ms (to VDD3)
95.89ms (to DSW_PWROK)
AC IN
M_BTN#
379.31ms (to M_BTN#)
VA_EC_EN
DD_ON
10.97ms (to VA_EC_EN)
140.48ms (to VA_EC_EN)RSMRST#
140.77ms (to VA_EC_EN)PWR_BTN#
2.65ms (to RSMRST#)ESPI_RESET#
888ns (to RSMRST#)
SLP_S0#
AC_PRESENT 39.5ms (to RSMRST#)
272.49ms (to RSMRST#)
SUSC#
273.53ms (to RSMRST#)
SUSB#
274.54ms (to RSMRST#)
CPU_C10_GATE#
ALL_SYS_PWRGD 8.83ms (to SUSC#)
8.79ms (to SUSC#)VCCST_PWRGD
10.24ms (to SUSC#)H_VR_READY
SYS_PWROK 229.5ms (to SUSC#)
242.04ms (to SUSC#)
242.27ms (to SUSC#)
PLT_RST#
VCORE
3.3VA
1.8VA
VCCIN_AUX
VA_EC_EN
VA_EC_EN
392.7us (to VA_EC_EN)
3.48ms (to VA_EC_EN)
4.81ms (to VA_EC_EN)
3.3V
5V
DD_ON
DD_ON
377.63us (to DD_ON)
2.24ms (to DD_ON)
2.5V
VDDQ
VTT_MEM
SUSC#
SUSC#
998.36us (to SUSC#)
5.58ms (to SUSC#)
8.07ms (to SUSC#)
3.3VS
5VS
SUSB#
SUSB#
413.49us (to SUSB#)
1.04ms (to SUSB#)
3.61ms (to VA_EC_EN)VCCST
<--------------410.29ms------------->
Title
Size Document Number Rev
Date: Sheet
of
6-7P-NP5P4-002
002
[71] Power Sequencing
Custom
71 72Wednesday, December 29, 2021
啵 ⣑ 暣 儎
CLEVO CO.
Title
Size Document Number Rev
Date: Sheet
of
6-7P-NP5P4-002
002
[71] Power Sequencing
Custom
71 72Wednesday, December 29, 2021
啵 ⣑ 暣 儎
CLEVO CO.
Title
Size Document Number Rev
Date: Sheet
of
6-7P-NP5P4-002
002
[71] Power Sequencing
Custom
71 72Wednesday, December 29, 2021
啵 ⣑ 暣 儎
CLEVO CO.
Sheet 69 of 69
Power Sequence
Schematic Diagrams
B - 70 Power Sequence
B.Schematic Diagrams
Power Sequence
