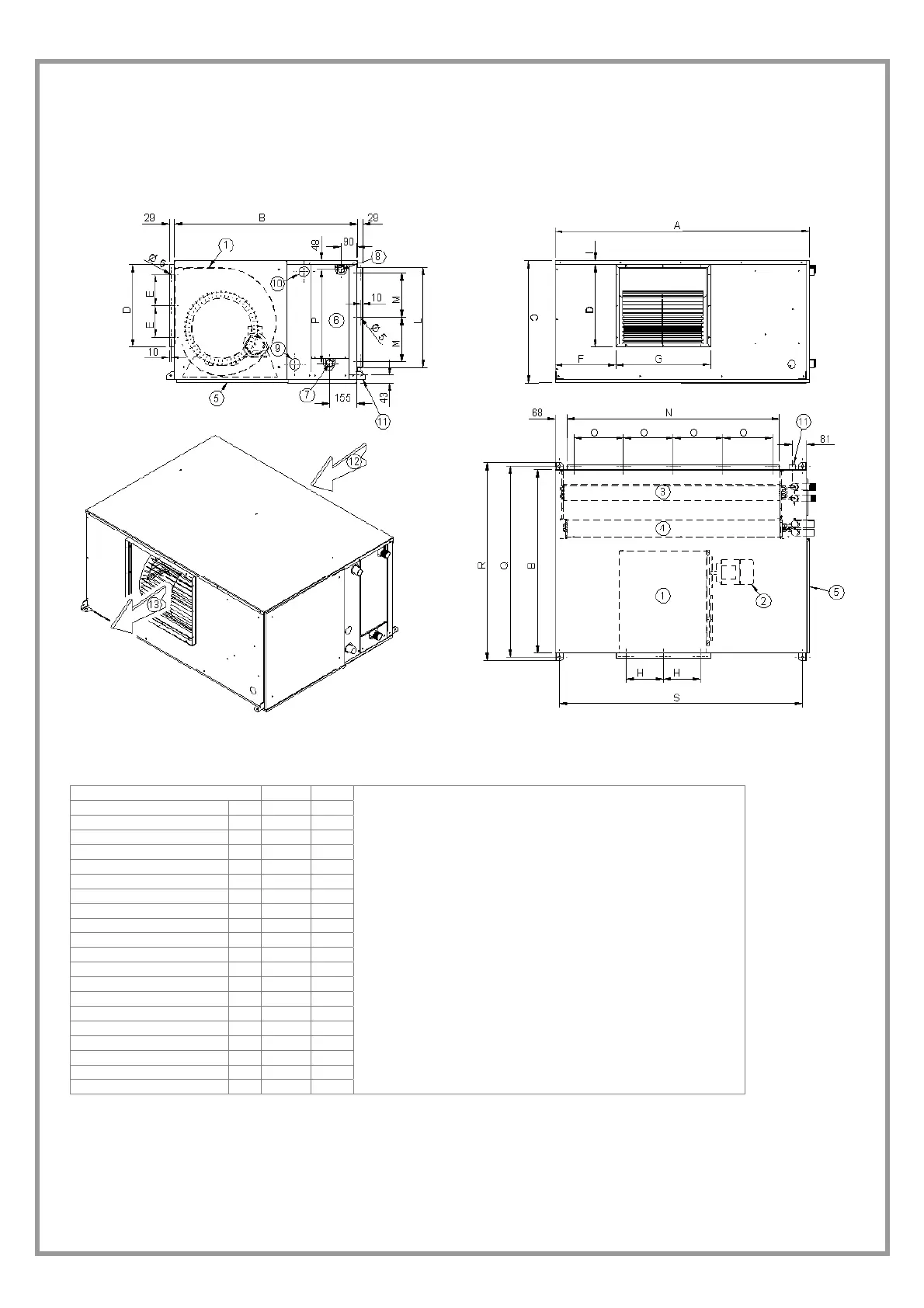

DIMENSIONS
Size 91-121
Size 91 121
A mm 1285 1435
B mm 945 1030
C mm 585 685
D mm 407 465
E mm 147 176
F mm 270 344
G mm 460 533
H mm 173 210
I mm 7 21
L mm 465 565
M mm 200 250
N mm 1047 1200
O mm 243 280
P mm 435 530
Q mm 987 1074
R mm 1028 1114
S mm 1222 1372
Length mm 1285 1435
Depth mm 945 1030
Height mm 585 685
(1) CENTRIFUGAL FAN
(2) FAN MOTOR
(3) MAIN WATER COIL
(4) WATER HEATING COIL (OPTIONAL)
(5) PANEL FOR MOTOR AND FAN INSPECTION
(6) PANEL FOR EXCHANGER INSPECTION
(7) EXCHANGER WATER INLET
MAIN WATER COIL
(8) EXCHANGER WATER OUTLET
MAIN WATER COIL
(9) EXCHANGER WATER INLET
ADDITIONAL WATER COIL
(10) EXCHANGER WATER OUTLET
ADDITIONAL WATER COIL
(11) CONDENSATE DISCHARGE
(12) RETURN AIR DIRECTION
(13) SUPPLY AIR DIRECTION
