5–16 Maintenance and Service Guide
Removal and Replacement Procedures
5.8 LED Cover
1. Prepare the notebook for disassembly (Section 5.3).
2. Turn the notebook bottom side up with the rear panel facing
forward.
3. Remove the two black PM2.0 × 10.0 screws that secure the
LED cover to the base enclosure (Figure 5-13).

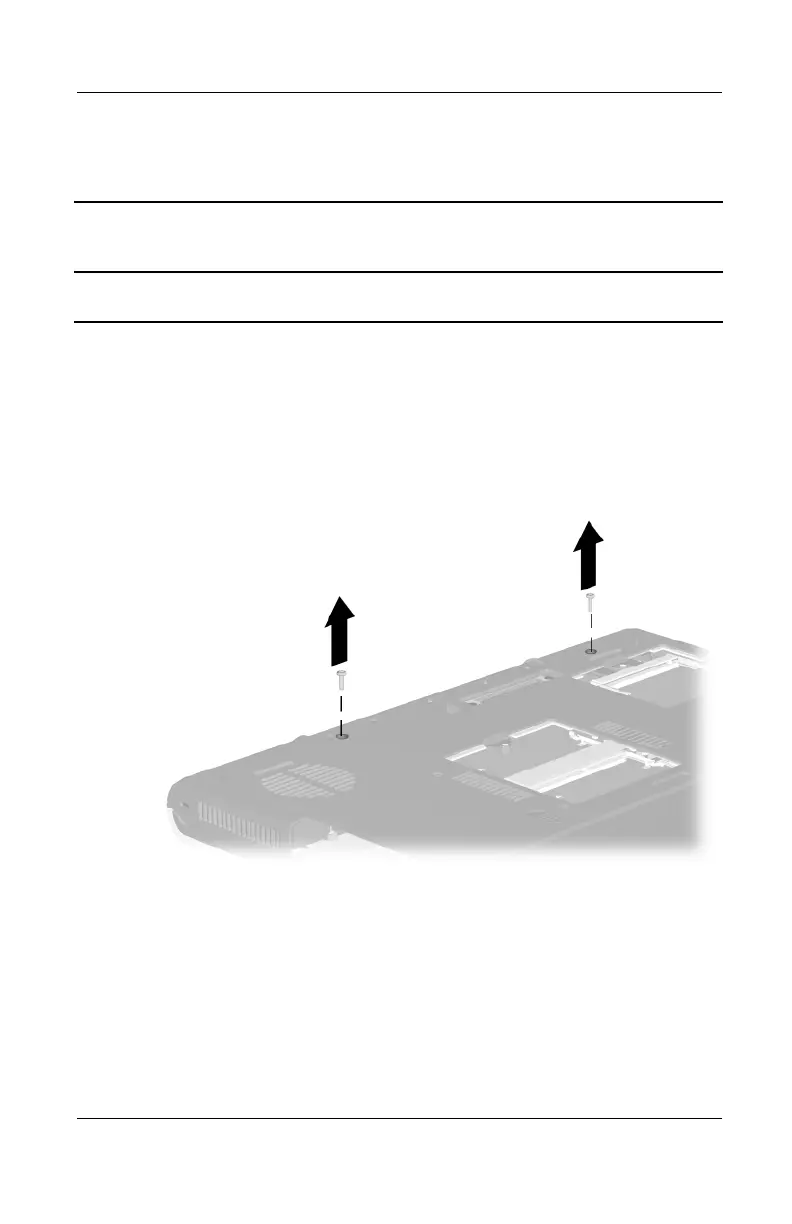

Figure 5-13. Removing the LED Cover Screws
4. Turn the notebook top side up with the front facing forward.
5. Open the notebook.
LED Cover
Spare Part Number Information
LED cover 288503-001
To Next Page
