Coralife TurboTwist Series User Manual

Instructions
Instructions
1. Set up and positioning
➁ Carefully twist the quartz housing
and the main body opposite of each
other. (Picture 2)
➀ Lift the red safelock and unlock
the quartz housing. (Picture 1)
Adjusting the hose barb inlet and outlet
The hose barbs can be positioned in four different
locations to facilitate connections to other applications.
➂ The quartz housing can now be
rotated 360
o
. (Picture 3)
Adjust the orientation of the hose
barb and set the main body into
the quartz housing.
➃ Combine the main body with the
quartz housing and rotate
according to the arrowhead
“close”. (Picture 4)
➄ Press in the red safelock and the
UV Sterilizer is now ready to install.
(Picture 5)
The Coralife Turbo-Twist Ultraviolet Sterilizers are easy to set up and operate.
Please read all instructions in their entirety before installation.
To accommodate your new sterilizer, you will need a power-head, pump, or canister fi lter
with an appropriate fl ow rate for the size of your UV Sterilizer to ensure adequate ultraviolet
exposure while treating the entire volume of aquarium water with appropriate frequency.
SPECIFICATIONS
Article Turbo-Twist 3x Turbo-Twist 6x Turbo-Twist 12x
UVC Lamp 9 watt 18 watt 36 watt
Rated Voltage AC120V AC120V AC120V
Rated Cycle 60Hz 60Hz 60Hz
Rated Power 10.2 watt 19 watt 38 watt
Irradiation of UVC Radiation* 9,580 µW/cm
2
11,400 µW/cm
2
11,400 µW/cm
2
Wavelength of Radiation 253.7mm 253.7mm 253.7mm
Life of UVC Lamp Approx. 8,000 hrs Approx. 8,000 hrs Approx. 8,000 hrs
Aquarium Volume Up to 125 gals Up to 250 gals Up to 500 gals
Flow Rate (gallons per hour) 100-200 gph 200-400 gph 400-1200 gph
Size of O-ring (mm) 12/16, 16/22 16/22, 22/28 16/22, 16/28
Cord Length Approx. 9 ft Approx. 9 ft Approx. 9 ft
*(value @ 20mm distance from the UVC lamp)
QUARTZ
HOUSING
SAFELOCK O-RING GASKET MAIN BODY
QUARTZ SLEEVE
SAFELOCK
QUARTZ HOUSING
QUARTZ HOUSING
SAME AS PICTURE
(PICTURE 1)
MAIN BODY
MAIN
BODY
(PICTURE 2)
(PICTURE 3)
(PICTURE 4)
(PICTURE 5)

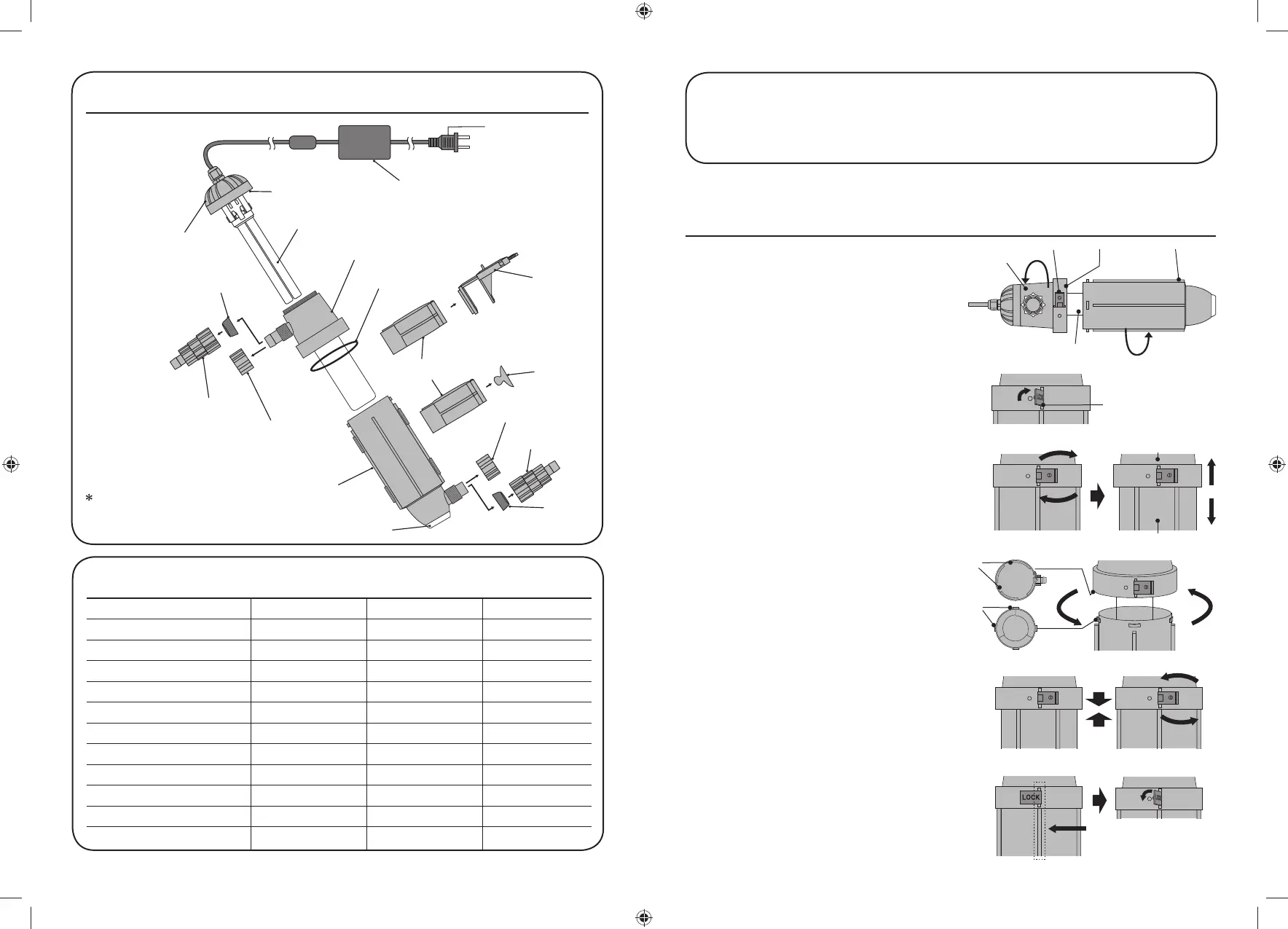

PARTS DIAGRAM
Water pump
not included.
PLUG
THREADED CAP
FLAT O-RING
UVC LAMP
QUARTZ HOUSING
O-RING GASKET
O-RING
O-RING
TURBO-TWIST
BRACKET
TANK
BRACKET
BALLAST
SUCTION
CUP
HOSE LOCK NUT
HOSE BARB
ADAPTER
HOSE BARB
ADAPTER
LAMP ON INDICATOR
MAIN
BODY
(HOSE
BARB
OUTLET)
(HOSE
BARB INLET)
HOSE LOCK NUT
1 2
