Cornwell Tools CSESJ350A User Manual

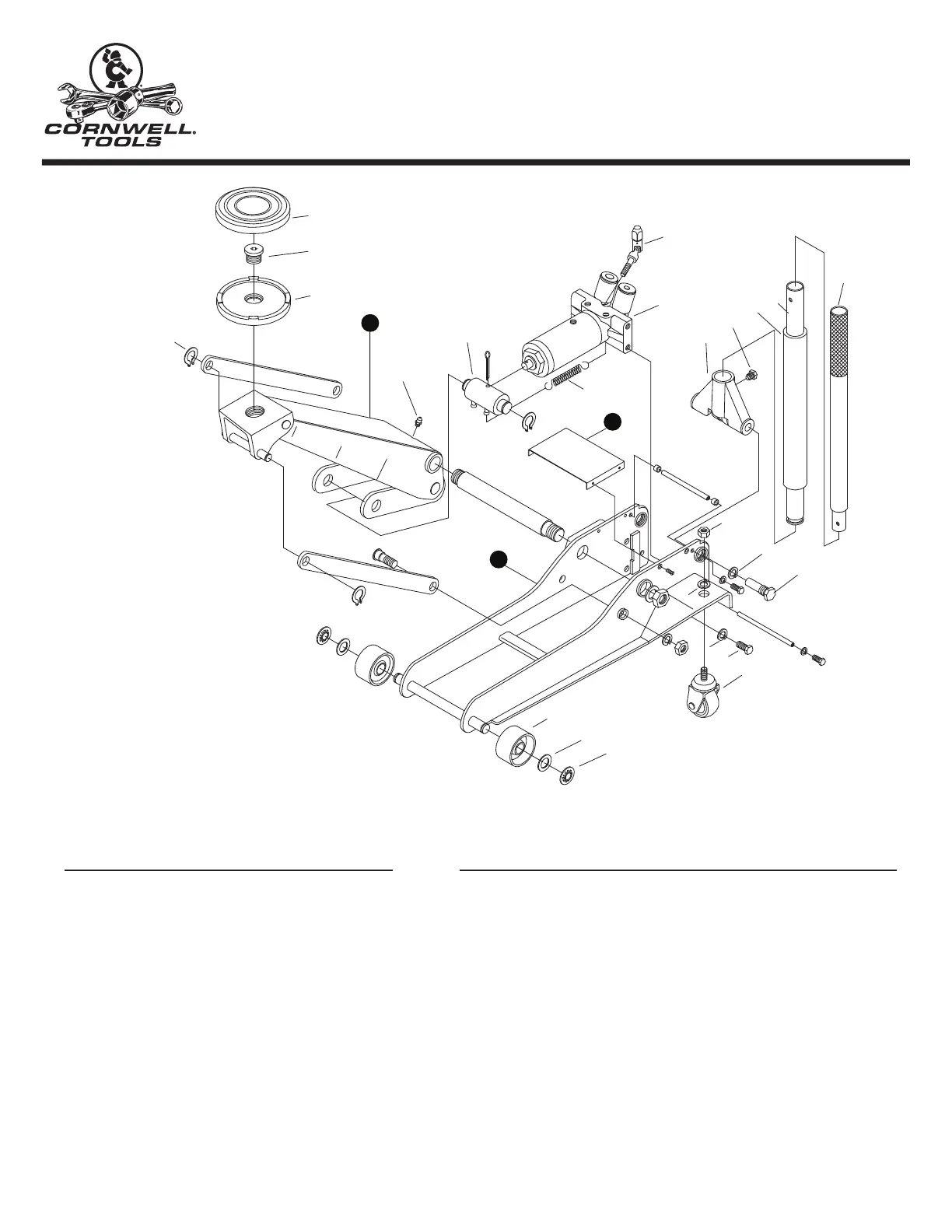

PARTS LIST
CSESJ350A (BLUE) /
CSESJ350ANG (NEON GREEN)
3-1/2 Ton Service Jack
CSESJ350A / CSESJ350ANG 6 11/10/2020
A
C
B
1
2
3
5
5
6
7
8
9
10
11
12
13
20
14
15
16
17
18
19
6
4
4
4
Item Part
No. No. Description Qty.
1 RS35T01 Star Clip 2
2 RS35T02 Washer (M20) 2
3 RS35B03 Front Wheel 2
4 RS35B10 Rear Caster Ass'y. - Blue 2
RS35B10NG Rear Caster Ass'y. - Neon Green 2
5 RS35T08 Hex Nut & Lock Washer (M16) 2
6 RS35B11 Yoke Retaining Bolt & Washer 2
7 RS35T17 Handle Lever "B" 1
RS35T17BK Handle Lever "B" - Black 1
8 RS35T15 Handle Lever "A" 1
RS35T18BK Handle Lever "A" - Black 1
9 RS35009C Handle Bumper 1
10 RS35T13 Set Screw - Handle 1
11 RS35011C Handle Yoke 1
RS35011CNG Handle Yoke - Neon Green 1
12 RS35B20 Power Unit Ass'y. - Black 1
13 RS35T18 Universal Joint Ass'y. 1
14 RS35B24 Block Linkage - Black
(incl. Split Pin, Ret. Rings) 1
15 RS35T12 Grease Fitting 1
16 RS35T04 Retaining Ring 2
17 RS35017 Saddle 1
18 RS35018 Saddle Screw (16) 1
19 RS35019C Rubber Saddle Pad 1
20 RS35T19 Return Spring 2
N/S RS35THB Handle Button 1
N/S RSCSESJ350ALK Product Label Kit 1
N/S RSCSESJ350ANGLK Product Label Kit - Neon Green 1
Item
No. Part No. Description Qty.
1 RS35T01 Star Clip 2
2 RS35T02 Washer (M20) 2
3 RS35B03 Front Wheel 2
4 RS35B10 Rear Caster Ass'y. - Blue 2
4 RS35B10NG Rear Caster Ass'y. - Neon Green 2
5 RS35T08 Hex Nut & Lock Washer (M16) 2
6 RS35B11 Yoke Retaining Bolt & Washer 2
7 RS35T17 Handle Lever "B" 1
7 RS35T17BK Handle Lever "B" - Black 1
8 RS35T15 Handle Lever "A" 1
8 RS35T15BK Handle Lever "A" - Black 1
9 RS35009C Handle Bumper 1
10 RS35T13 Set Screw - Handle 1
Item
No. Part No. Description Qty.
11 RS35011C Handle Yoke 1
11 RS35011CNG Handle Yoke - Neon Green 1
12 RS35B20 Power Unit Ass'y. - Black 1
13 RS35T18 Universal Joint Ass'y. 1
14 RS35B24 Block Linkage - Black (incl. Split Pin, Ret. Rings) 1
15 RS35T12 Grease Fitting 1
16 RS35T04 Retaining Ring 2
17 RS35017 Saddle 1
18 RS35018 Saddle Screw (16) 1
19 RS35019C Rubber Saddle Pad 1
20 RS35T19 Return Spring 2
N/S RS35THB Handle Button 1
N/S RSCSESJ350ALK Product Label Kit - CSESJ350A 1
N/S RSCSESJ350ANGLK Product Label Kit - CSESJ350ANG 1
