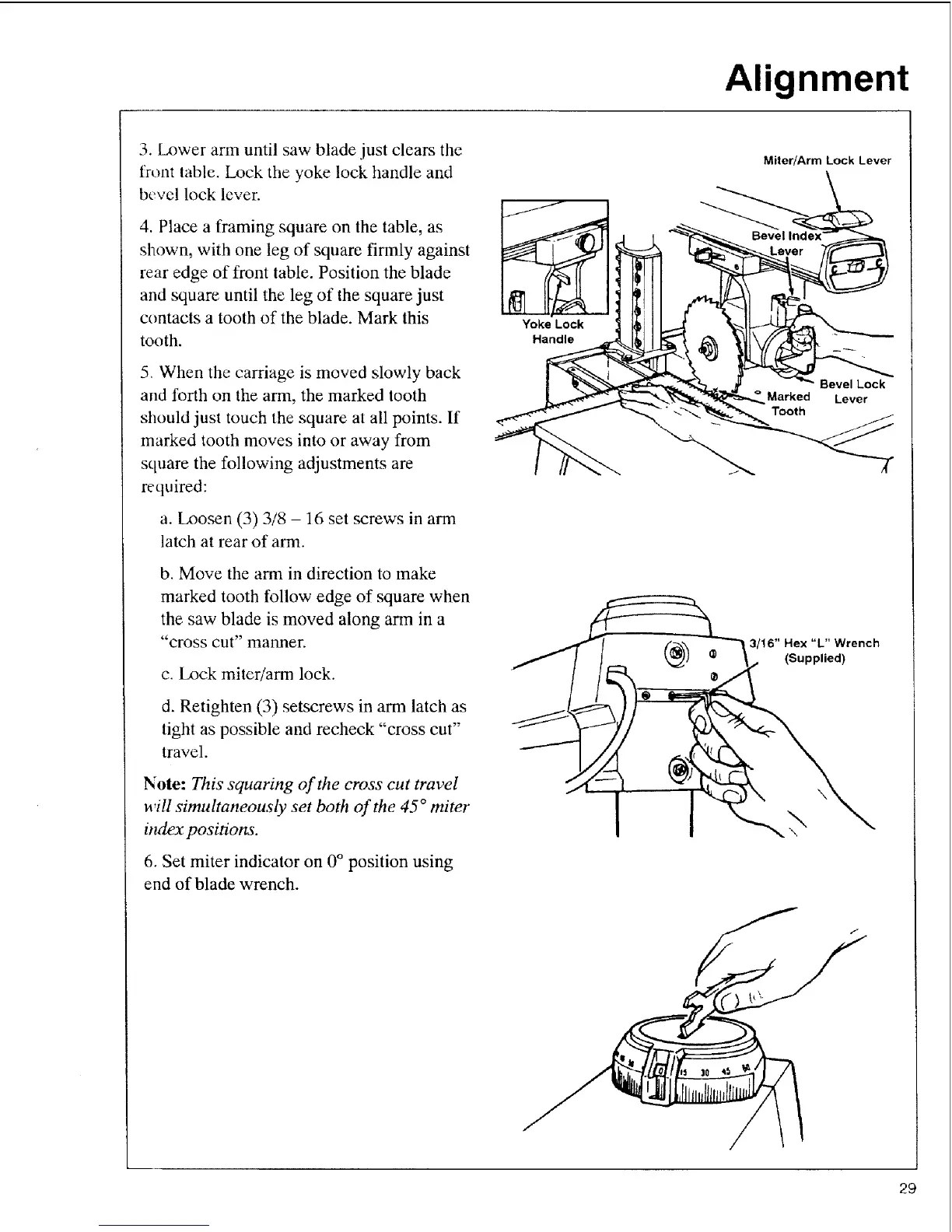

Ali nment
3. Lower ann until saw blade just clears the
front table. Lock the yoke lock handle and
bevel lock lever.
4. Place a framing square on the table, as
shown, with one leg of square firmly against
rear edge of front table. Position the blade
and square until the leg of the square just
contacts a tooth of the blade. Mark this
tooth.
5. When the carriage is moved slowly back
and forth on the arm, the marked tooth
should just touch the square at all points. If
marked tooth moves into or away from
square the following adjustments are
required:
a. Loosen (3) 3/8 - 16 set screws in arm
latch at rear of arm.
b. Move the arm in direction to make
marked tooth follow edge of square when
the saw blade is moved along arm in a
"cross cut" manner.
c. Lock miter/arm lock.
d. Retighten (3) setscrews in arm latch as
tight as possible and recheck "cross cut"
travel.
Note: This squaring of the cross cut travel
will simultaneously set both of the 45 ° miter
itwlex positions.
6. Set miter indicator on 0 ° position using
end of blade wrench.
Yoke Lock
Handle
Miter/Arm Lock Lever
Bevel Lock
Marked Lever
"L" Wrench
(Supplied)
\
29
