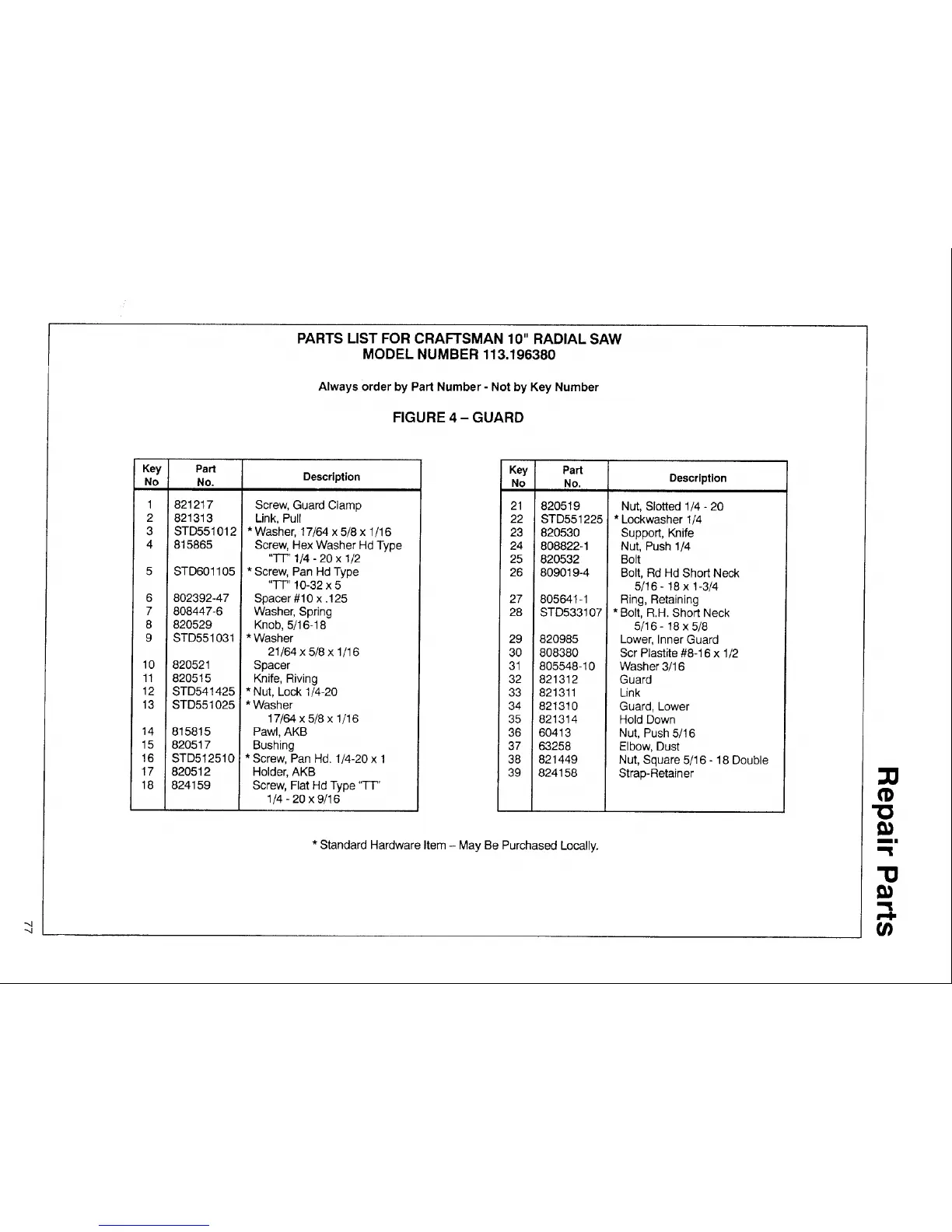

PARTS LIST FOR CRAFTSMAN 10" RADIAL SAW
MODEL NUMBER 113.196380
Always order by Part Number - Not by Key Number
FIGURE 4 - GUARD
Description Key
No
1 821217 Screw, Guard Clamp
2 821313 Link, Pulr
3 STD551012 i *Washer, 17/64 x 5/8 x 1/16
4 815865 Screw, Hex Washer Hd Type
"IF' 1/4 - 20 x 1/2
5 STD601105 *Screw, Pan Hd Type
"iT' 10-32 x 5
6 802392-47 Spacer #10 x. 125
7 808447-6 Washer, Spring
8 820529 Knob, 5/16-18
9 STD551031 *Washer
21/64 x 5/8 x 1/16
10 820521 Spacer
11 820515 Knife, Riving
12 STD541425 * Nut, Lock 1/4-20
13 STD551025 *Washer
17/64 x 5/8 x 1/16
14 815815 Pawl, AKB
15 820517 Bushing
16 STD512510 * Screw, Pan Hd. 1/4-20 x 1
17 820512 Holder, AKB
18 824159 Screw, Flat Hd Type "IT'
1/4 - 20 x 9/16
Part
No.
21 820519
22 STD551225
23 820530
24 808822-1
25 820532
26 809019-4
27 805641-1
28 STD533107
29 820985
30 808380
31 805548-10
32 821312
33 821311
34 821310
35 821314
36 6O413
37 63258
38 821449
39 824158
Description
Nut, Slotted 1/4 - 20
* Lockwasher 1/4
Support, Knife
Nut, Push 1/4
Bolt
Bolt, Rd Hd Short Neck
5/16 - 18 x 1-3/4
Ring, Retaining
* Bolt, R.H. Short Neck
5/16 - 18 x 5/8
Lower, Inner Guard
Scr Ptastite #8-16 x 1/2
Washer 3/16
Guard
Link
Guard, Lower
Hold Down
Nut, Push 5/16
Elbow, Dust
Nut, Square 5/16 - 18 Double
Strap-Retainer
* Standard Hardware Item - May Be Purchased Locally.
HI
"O
