Repair Parts
2
\
C

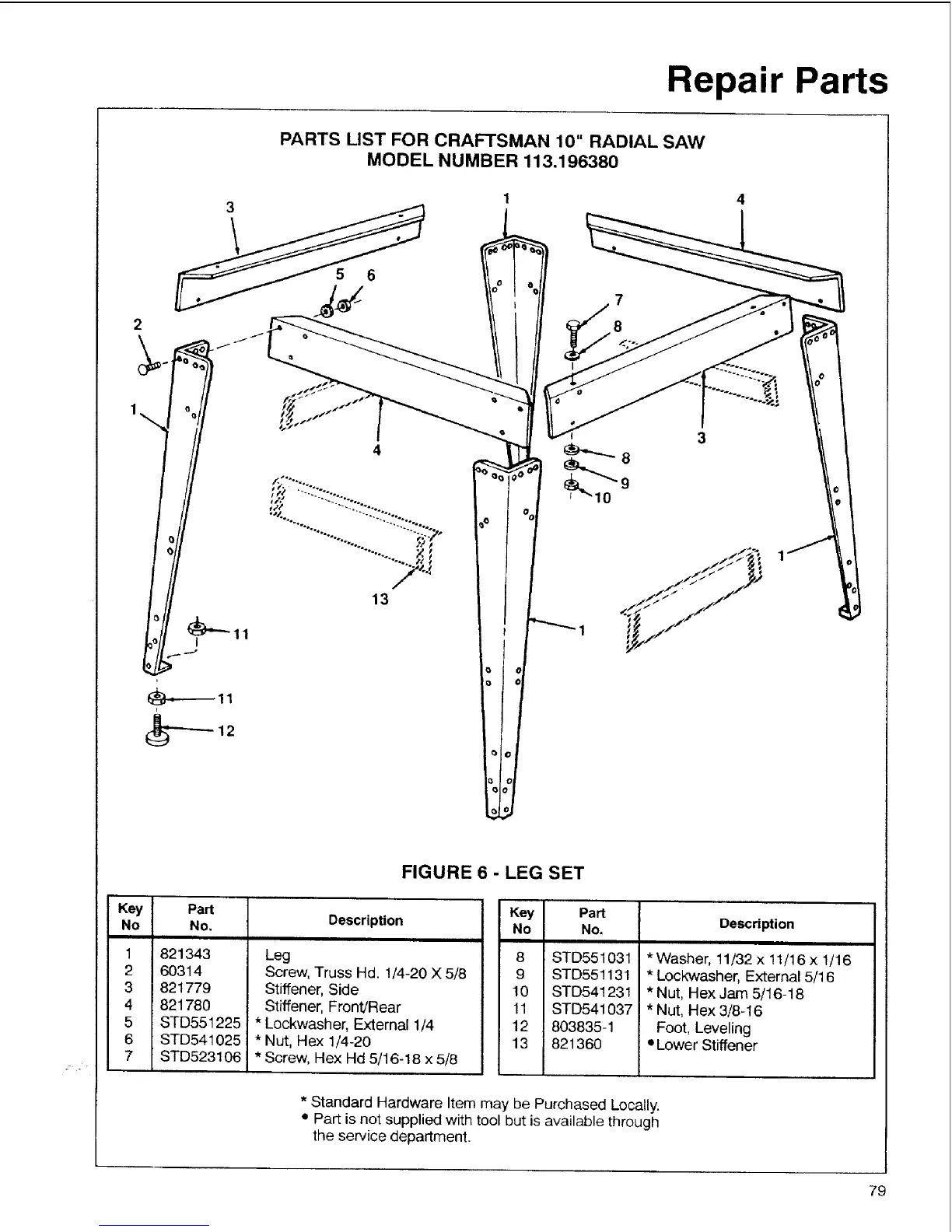

PARTS LIST FOR CRAFTSMAN 10" RADIAL SAW
MODEL NUMBER 113.196380
13
1
Key
No
1
2
5
6
7
FIGURE 6 - LEG SET
Part
No.
821343
60314
821779
821780
STD551225
STD541025
STD5231 O6
Description
i
Leg
Screw, Truss Hd. !/4-20 X 5/8
Stiffener, Side
Stiffener, Front/Rear
* Lockwasher, External 1/4
* Nut, Hex 1/4-20
* Screw, Hex Hd 5/16-18 x 5/8
Key PaN
No No.
8 STD551031
9 STD551131
10 STD541231
11 STD541037
12 803835-1
13 821360
Description
*Washer, 11/32 x 11/16 x 1/16
* Lockwasher, External 5/16
* Nut, Hex Jam 5/16-18
*Nut, Hex 3/8-16
Foot, Leveling
• Lower Stiffener
* Standard Hardware Item may be Purchased Locally.
• Part isnot supplied with tool but is available through
the service department.
79
