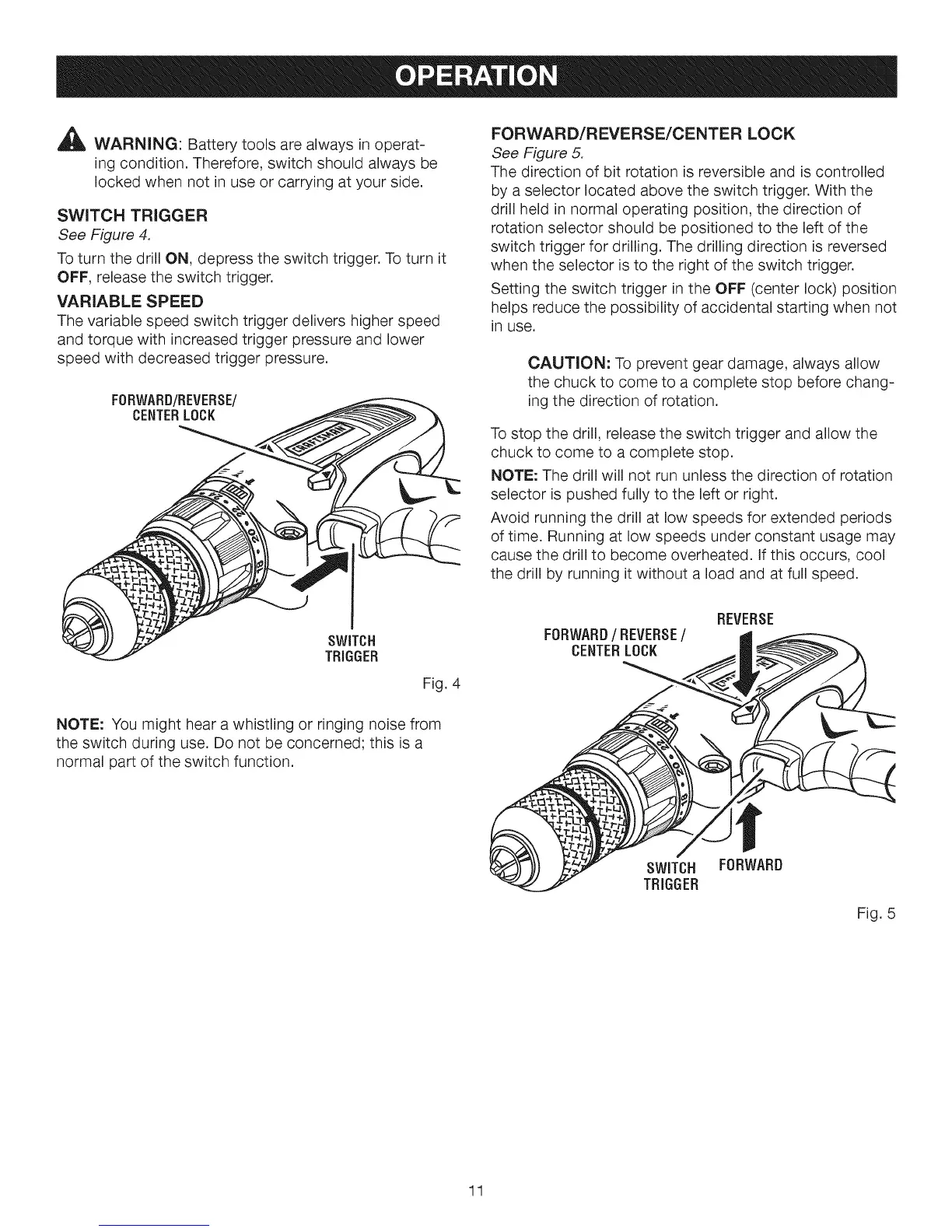

_hL WARNING:Batterytoolsarealwaysinoperat-
ingcondition.Therefore,switchshouldalwaysbe
lockedwhennotinuseorcarryingatyourside.
SWITCHTRIGGER
See Figure 4.
To turn the drill ON, depress the switch trigger. To turn it
OFF, release the switch trigger.
VARIABLE SPEED
The variable speed switch trigger delivers higher speed
and torque with increased trigger pressure and lower
speed with decreased trigger pressure.
FORWARD/REVERSE/
CENTERLOCK
SWITCH
TRIGGER
Fig. 4
NOTE: You might hear a whistling or ringing noise from
the switch during use. Do not be concerned; this is a
normal part of the switch function.
FORWARD/REVERSE/CENTER LOCK
See Figure 5.
The direction of bit rotation is reversible and is controlled
by a selector located above the switch trigger. With the
drill held in normal operating position, the direction of
rotation selector should be positioned to the left of the
switch trigger for drilling. The drilling direction is reversed
when the selector is to the right of the switch trigger.
Setting the switch trigger in the OFF (center lock) position
helps reduce the possibility of accidental starting when not
in use.
CAUTION: To prevent gear damage, always allow
the chuck to come to a complete stop before chang-
ing the direction of rotation.
To stop the drill, release the switch trigger and allow the
chuck to come to a complete stop.
NOTE: The drill will not run unless the direction of rotation
selector is pushed fully to the left or right.
Avoid running the drill at low speeds for extended periods
of time. Running at low speeds under constant usage may
cause the drill to become overheated. If this occurs, cool
the drill by running it without a load and at full speed.
FORWARD/ REVERSE/
CENTERLOCK
REVERSE
SWITCH FORWARD
TRIGGER
Fig. 5
11

Craftsman 11580 - C3 19.2 Volt Hammer Specifications

General

Brand	Craftsman
Model	11580 - C3 19.2 Volt Hammer
Category	Drill
Language	English
