AVAILABLE ACCESSORIES
Use only accessories recommended [or this drill press.
Follow instruction,s that accompany accessories, Use of
improper accessories may cause hazards.
Visit your Sears Hardware Department or see the Sears
Power and Hand _bol Catalogue for the following
accessories:
o Dri_ bits
o_ Hold-Down and Guide
Drill Press Vises
Clamping Kit
Use oniy accessories designed for this drill press to
avoid injury from thrown broken parts or workpieces.
Sears may reco_.-nmendother accessories not listed in
this manual. See your nearest Sears store or Power and
!..-landTool Catalogue for other accessories.
Do not t_se any accessory unless you have completely
read the instruction or owner's manual for that accessory.

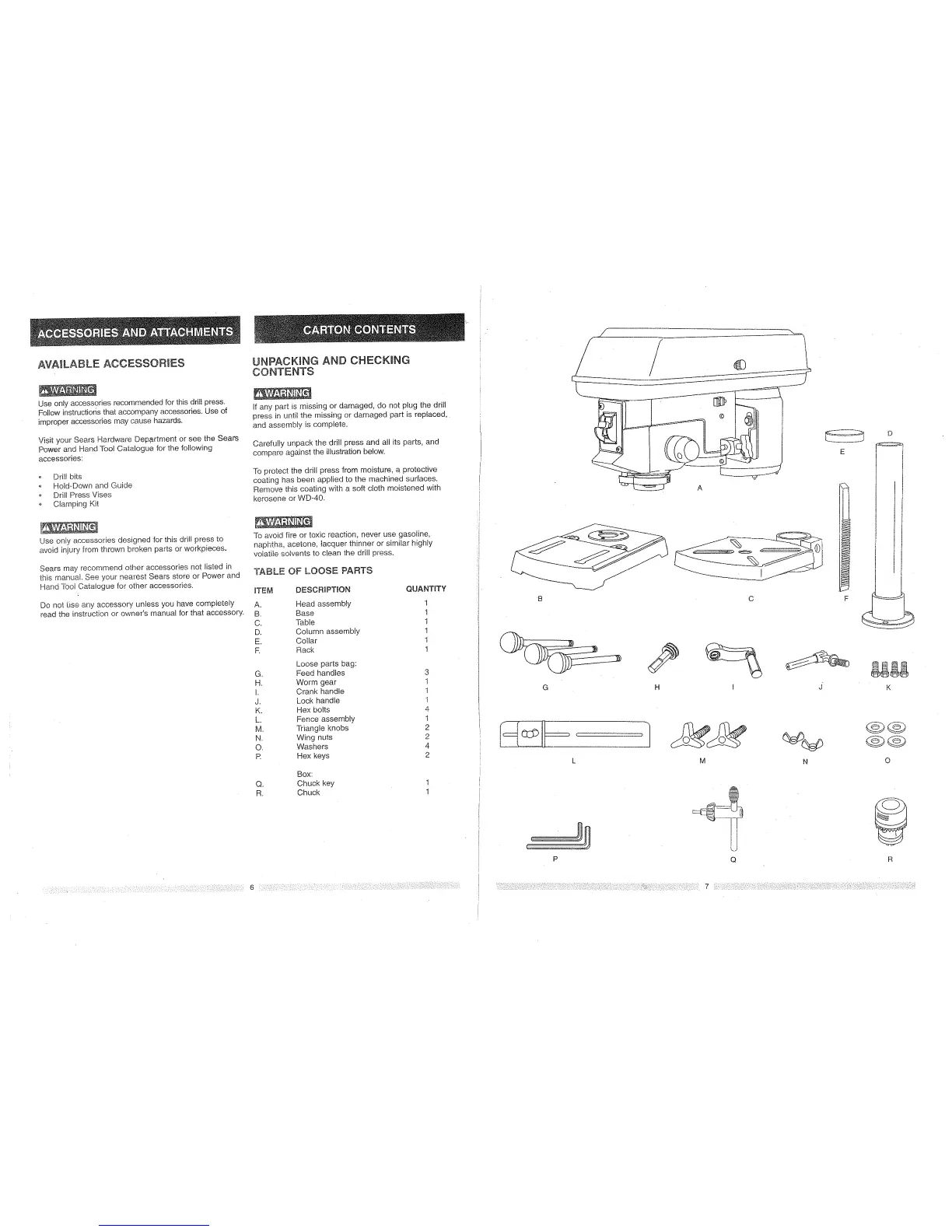

UNPACKmNG AND CHECKmNG
CONTENTS
If any part is missing or damaged, do not plug the drill
press in until the missing or damaged part is replaced,
and assembly is complete.
Carefully unpack the drill press and al! its parts, and
compare against the illustration below.
To protect the drill press from moisture, a protective
coating has been applied to the machined surfaces.
Remove this coating with a soft cloth moistened with
kerosene or WD-40.
-Foavoid fire or toxic reaction, never use gasoline,
naphtha, acetone, facquer thinner or similar highly
volatite solvents to clean the drill press.
TABLE OF LOOSE PARTS
ITEM DESCRIPTION QUANTITY
A. Head assembly
B. Base
C. Table
D. Coiumn assembly
E. Collar
R Rack
Loose parts bag:
G. Feed handles
H. Worm gear
I. Crank handle
J. Lock handle
K. Hex bolts
L. Fence assembly
M. Triangle knobs
N. Wing nuts
O. Washers
R Hex keys
Box:
Q. Chuck key
R. Chuck
1
t
1
1
1
1
3
1
t
1
4
t
2
2
4
2
1
t
i
::ii
q
i
B
C
G I J"
E
D
K
L M N O
P
Q R
