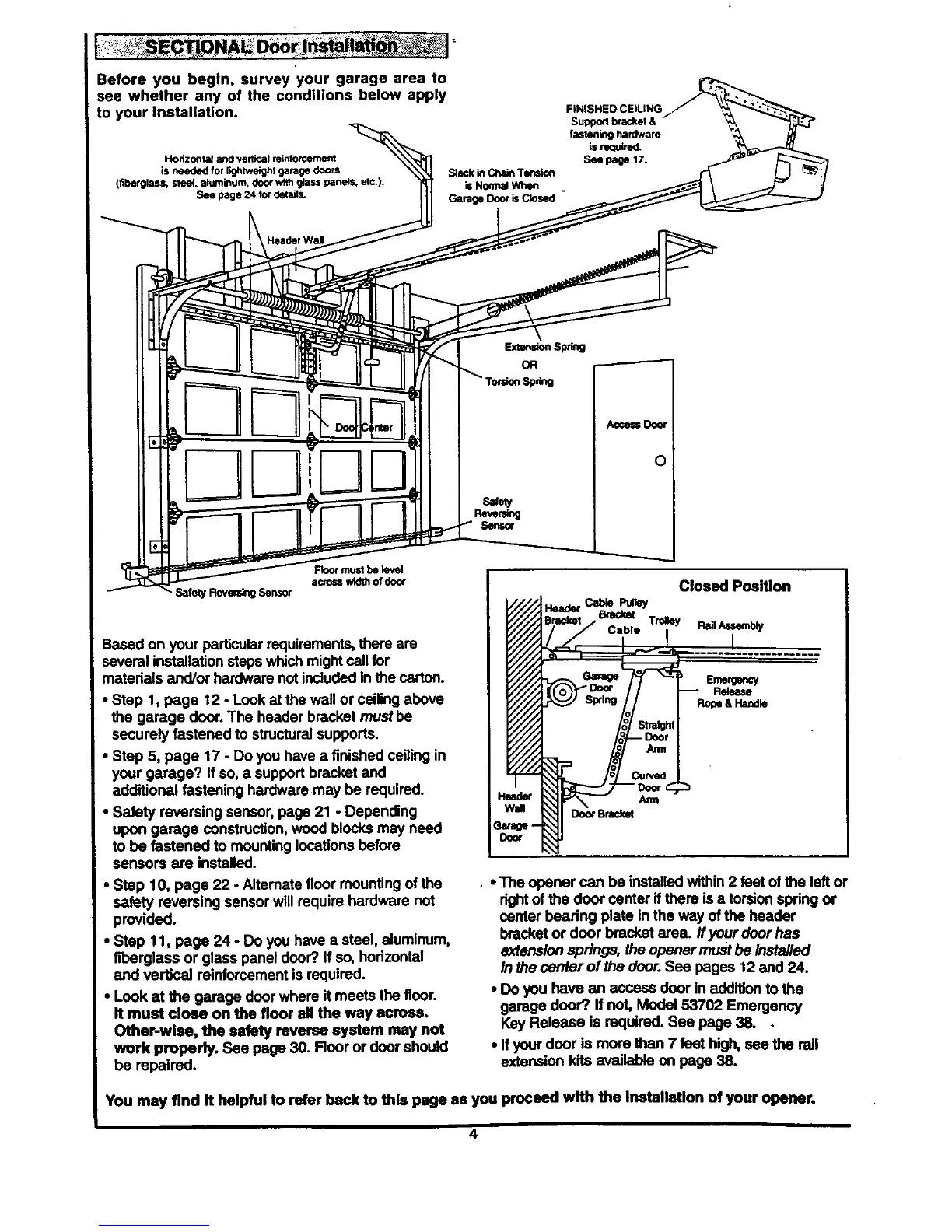

Before you begln, survey your garage area to
see whether any of the conditions below apply
to your installation.
Horizontal and vertical reinforcement
iS needed to_'llghtw_ght _ doors
(fiberglass. steel, akJminum, door v_th glass panels, etc.).
See page 24 for details.
FINISHED CEILING
SuI_ bracket &
fastlminghardware
Seg page 17.
Slackin ChainTen6ion
isNormalWhen
Garage DoorisClosed "
AccellDoor
o
Based on your particular requirements, there are
several installation steps which might call for
matedals and/or hardware not included in the carton.
• Step 1, page 12 - Look at the wall or ceiling above
the garage door. The header bracket must be
securely fastened to structural supports.
• Step 5, page 17 - Do you have a finished ceiling in
your garage? If so, a support bracket and
additional fastening hardware may be required.
• Safety reversing sensor, page 21 - Depending
upon garage construction, wood blocks may need
to be fastened to mounting locations before
sensors are installed.
• Step 10, page 22 - Alternate floor mounting of the
safety reversing sensor will require hardware not
provided.
• Step 11, page 24 - Do you have a steel, aluminum,
fiberglass or glass panel deer?.If so, horizontal
and vertical reinforcement is required.
• Look at the garage door where it meets the floor.
It must close on the floor all the way across.
Other-wise, the safety reveree system may not
work properly. See page 30. Floor or door should
be repaired.
Closed PeeWon
Cab_ Puny
Bracket Troaey
Cable RailAssembly
I
Emergency
Release
Roge&Hand_
, • The opener can be installed within 2 feet of the left or
rightof the door center ifthere is a torsion spdng or
center bearing plate in the way of the header
bracket or door bracket area. If your door has
extension springs, the opener must be installed
in the center of the door.See pages 12 and 24.
• Do you have an access door in addition to the
garage door? If not, Model 53702 Emergency
Key Release is required. See page 38.
• If your door is more than 7 feet high, see the rail
extension kits avaJlable on page 38.
You may find It helpful to refer back to this page as you proceed with the Installation of your opener.
