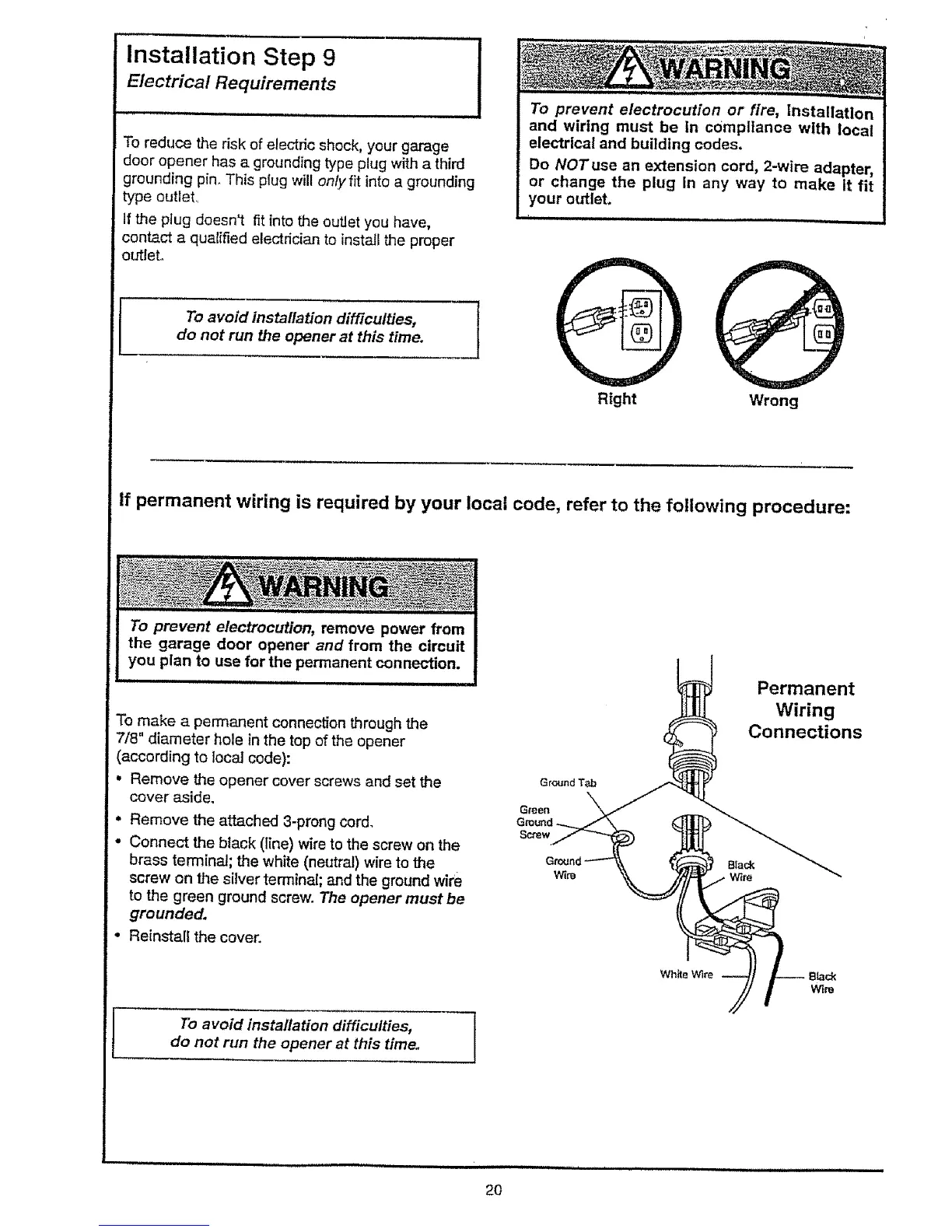

Installation Step 9
Electrical Requirements
To reduce the risk of electric shock, your garage
door opener has a grounding type plug with a third
grounding pin_This plug will onlyfit into a grounding
type cutlet..
If the plug doesn_ fitinto the outlet you have,
contact a qualified electrician to install the proper
outlet,
To prevent electrocution or fire, Installation
and wiring must be In compliance with local
electrical and building codes.
Do NOTuse an extension cord, 2-wire adapter,
or change the plug In any way to make It fit
your outlet.
/ ilu== i uHu==l i i,= _,
l
To avoM installation difficulties,
do not run the opener at this time.
Right Wrong
If permanent wiring is required by your local code, refer to the following procedure:
= ii=,,ll i ='=uLu= i llll ,,,,,,,,,,,,,,,,,,,, j
To prevent electrocution, remove power from
the garage door opener and from the circuit
you plan to use for the permanent connection.
HHH=== _,H',U_ HHH,=
To make a permanent connection through the
718" diameter hole in the top of the opener
(according to local code):
• Remove the opener cover screws and set the
cover aside.
• Remove the attached 3-prong cord.
• Connect the black (line) wire to the screw on the
brass terminal; the white (neutra!) wire to the
screw on the silver terminal; and the ground wire
to the green ground screw. The opener must be
grounded.
• Reinstall the cover.
To avoid installation difficulties,
do not run the opener at this time. 1
Ground Tab
G_een
Screw
W_rB
Permanent
Wiring
Connections
B_ac_k
Wire
20
