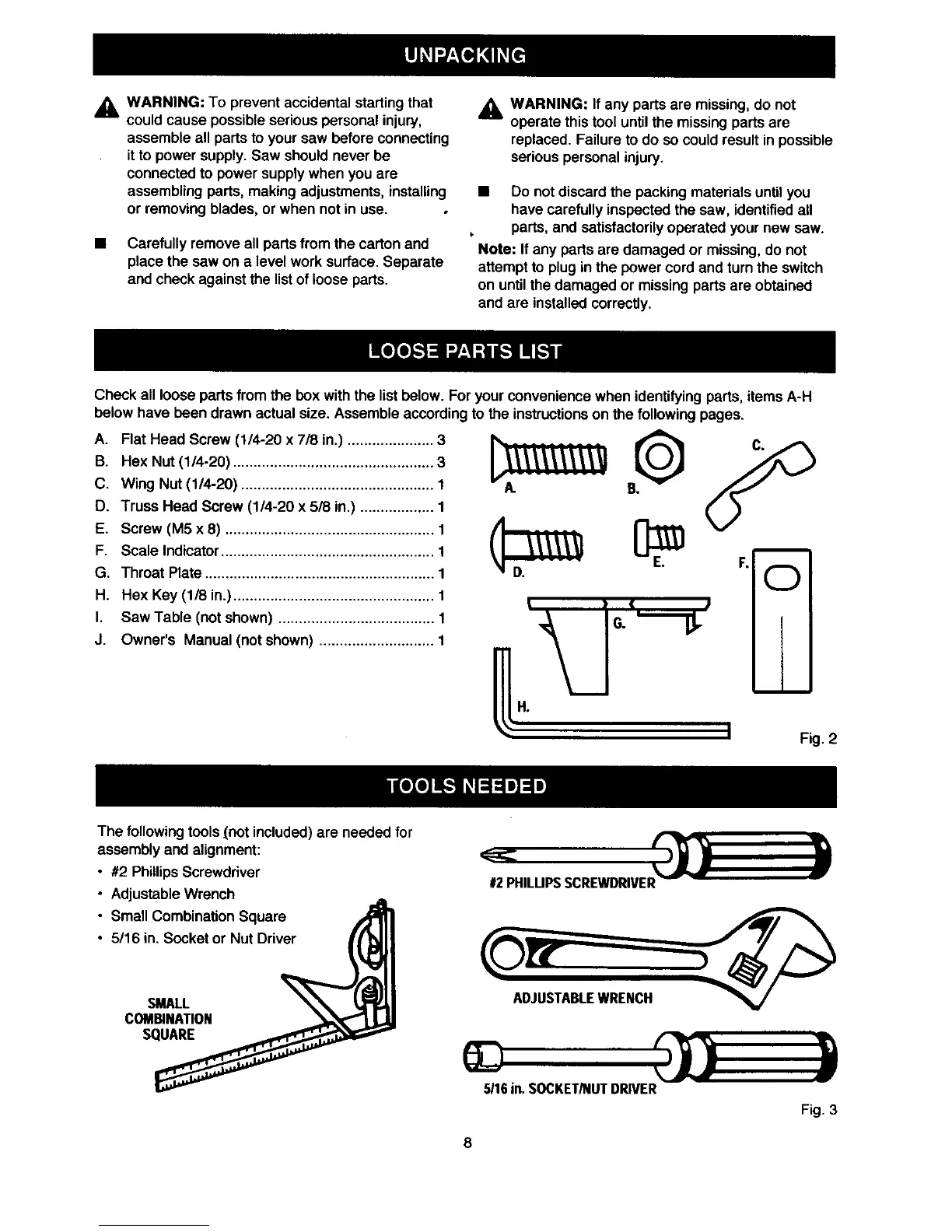

_i, WARNING: To prevent accidental starting that
could cause possible serious personal injury,
assemble all parts to your saw before connecting
it to power supply. Saw should never be
connected to power supply when you are
assembling parts, making adjustments, installing
or removing blades, or when not in use.
• Carefully remove all parts from the carton and
place the saw on a level work surface. Separate
and check against the list of loose parts.
_k WARNING: If any parts are missing, do not
operate this tool until the missing parts are
replaced. Failure to do so could result in possible
serious personal injury.
• Do not discard the packing materials until you
have carefully inspected the saw, identified all
parts, and satisfactorily operated your new saw.
Note: If any parts are damaged or missing, do not
attempt to plug in the power cord and turn the switch
on until the damaged or missing parts are obtained
and are installed correctly.
Check all loose parts from the box with the list below. For your convenience when identifying parts, items A-H
below have been drawn actual size. Assemble according to the instructions on the following pages.
C. Wing Nut (1/4-20) ............................................... 1
D. Truss Head Screw (1/4-20 x 5/8 in.) .................. 1
E. Screw (M5 x 8) ................................................... 1
F. Scale Indicator .................................................... 1
G. Throat Plate ........................................................ 1
H. Hex Key (1/8 in.) ................................................. 1
I. Saw Table (not shown) ...................................... 1
J. Owner's Manual (not shown) ............................ 1
B. Hex Nut (1/4-20) ................................................. 3
__
V
Fig. 2
The following tools (not included) are needed for
assembly and alignment:
• #'2 Phillips Screwdriver
• Adjustable Wrench
• Small Combination Square
• 5/16 in. Socket or Nut Driver
SMALL
COMBINATION
SQUARE
#2 PHILUPSSCREWDRIVE
5116in.SOCKET/NUTDRIVER
Fig. 3
