Craftsman 50284 User Manual

ASSEMBLY
CARTON CONTENTS

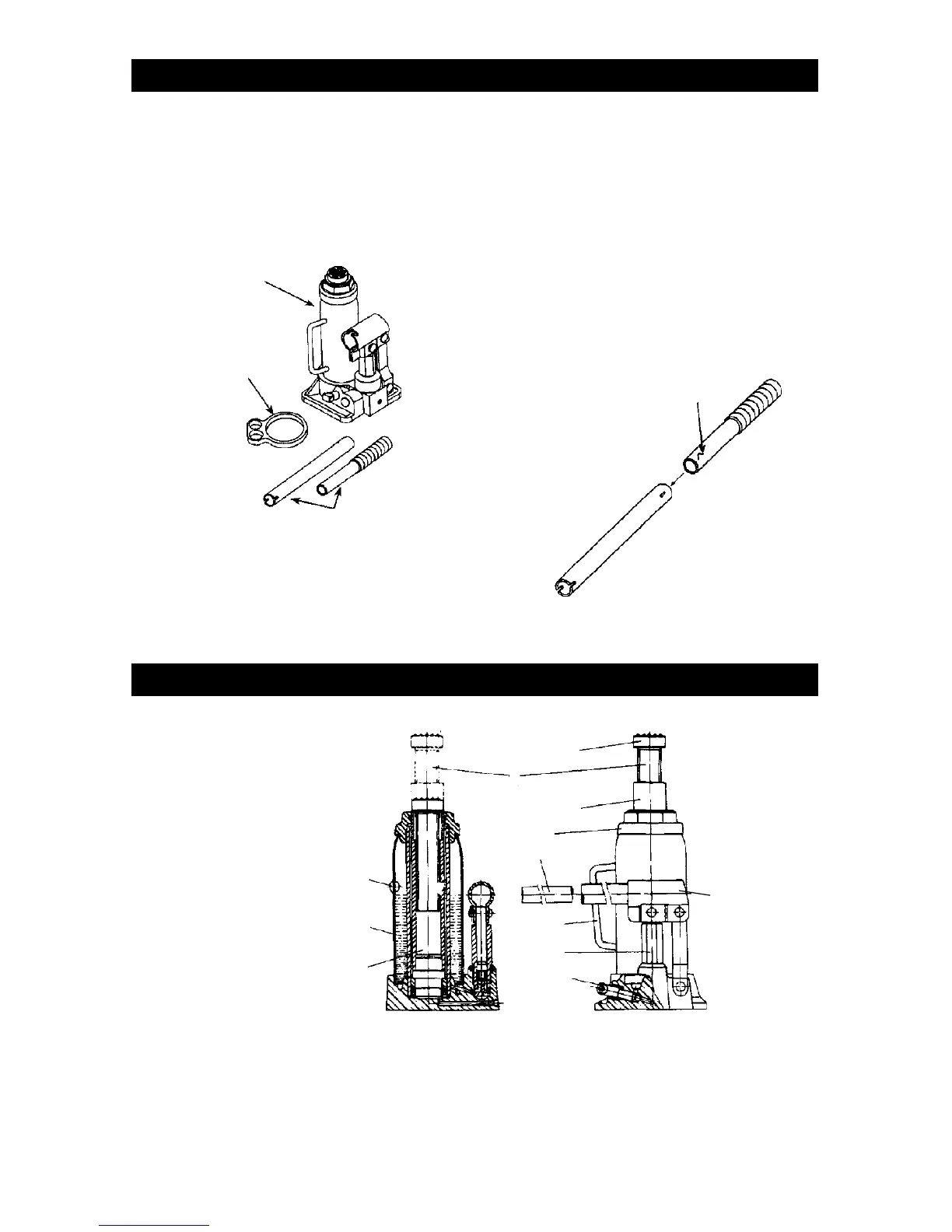

Inside the box, you will find (see Fig. 1):
1. A jack
2. A rubber handle holder
3. A 2-piece handle
OPERATION
HOW TO ASSEMBLE YOUR JACK
(refer to Figs. 1, 2)
•Install the rubber handle holder onto the
top nut and slide downward until it rests
upon the reservoir of the jack. Orient the
holder portion away from the handle socket
so that it does not interfere with the release
valve and handle socket operation.
•Assemble the handle sections by lining up
the spring detent in the rubber grip section
with the slot in the other section.
A. Handle
B. Handle Socket
C. Oil Filler Plug
D. Saddle
E. Oil Reservoir
F. Cylinder
G. Ram
H. Release Valve
I. Screw Extension
J. Plunger
K. Carrying Handle
L. Top Nut
Jack
2-piece handle
Rubber handle
holder
Spring lock
FIG. 1
FIG. 2
C
B
A
D
E
G
H
I
J
K
L
F
FIG. 3
4
