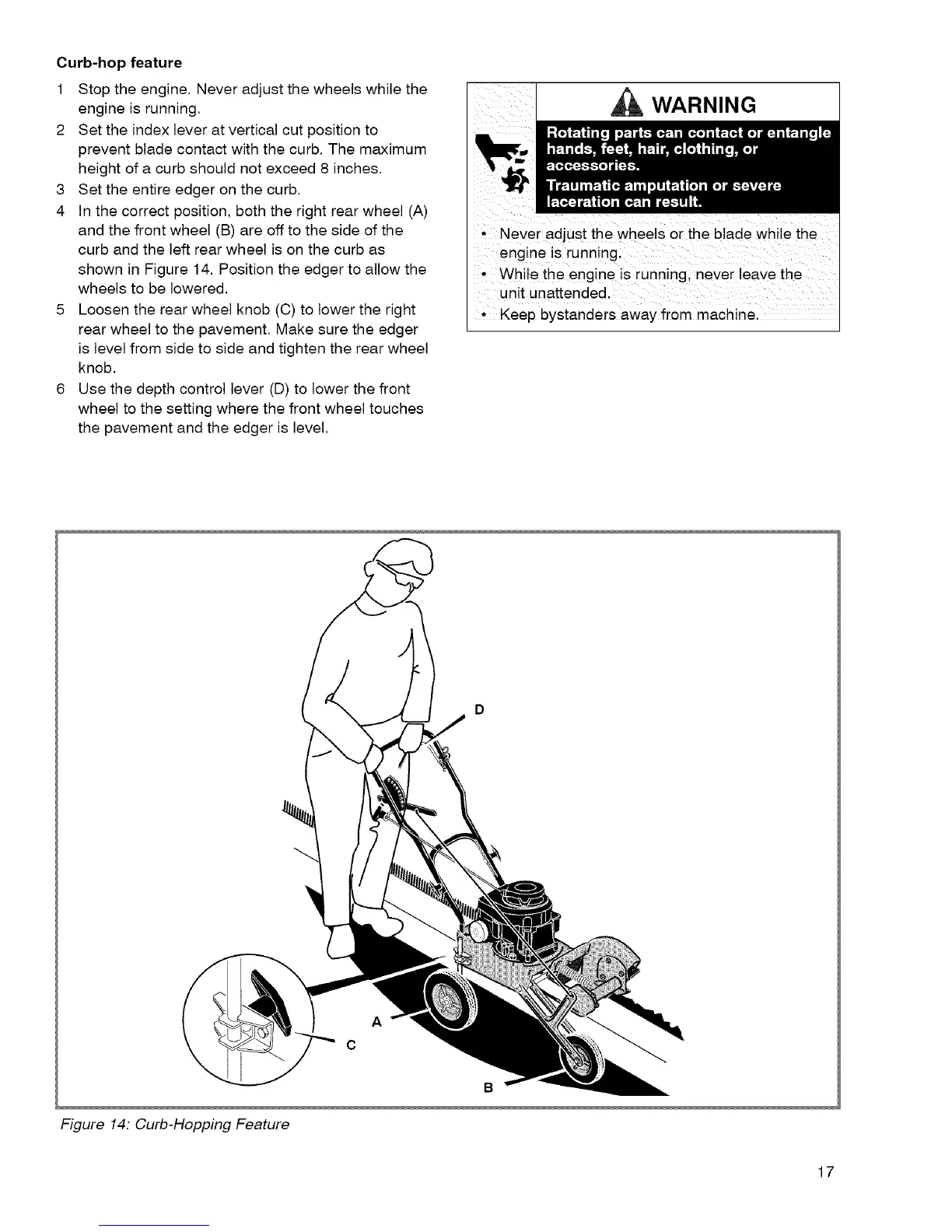

Curb-hopfeature
1 Stoptheengine.Neveradjustthewheelswhilethe
engineisrunning.
2 Settheindexleveratverticalcutpositionto
preventbladecontactwiththecurb.Themaximum
heightofacurbshouldnotexceed8inches.
3 Settheentire edger on the curb.
4 In the correct position, both the right rear wheel (A)
and the front wheel (B) are off to the side of the
curb and the left rear wheel is on the curb as
shown in Figure 14. Position the edger to allow the
wheels to be lowered.
5 Loosen the rear wheel knob (C) to lower the right
rear wheel to the pavement. Make sure the edger
is level from side to side and tighten the rear wheel
knob.
6 Use the depth control lever (D) to lower the front
wheel to the setting where the front wheel touches
the pavement and the edger is level.
WARNING
ii i i i
Never adjust the wheels 01the blade While the
engine is running.
While the engine is running; never leave the
unit Unattended.
* Keep bystanders away from machine.
A
C
B
Figure 14: Curb-Hopping Feature
17
