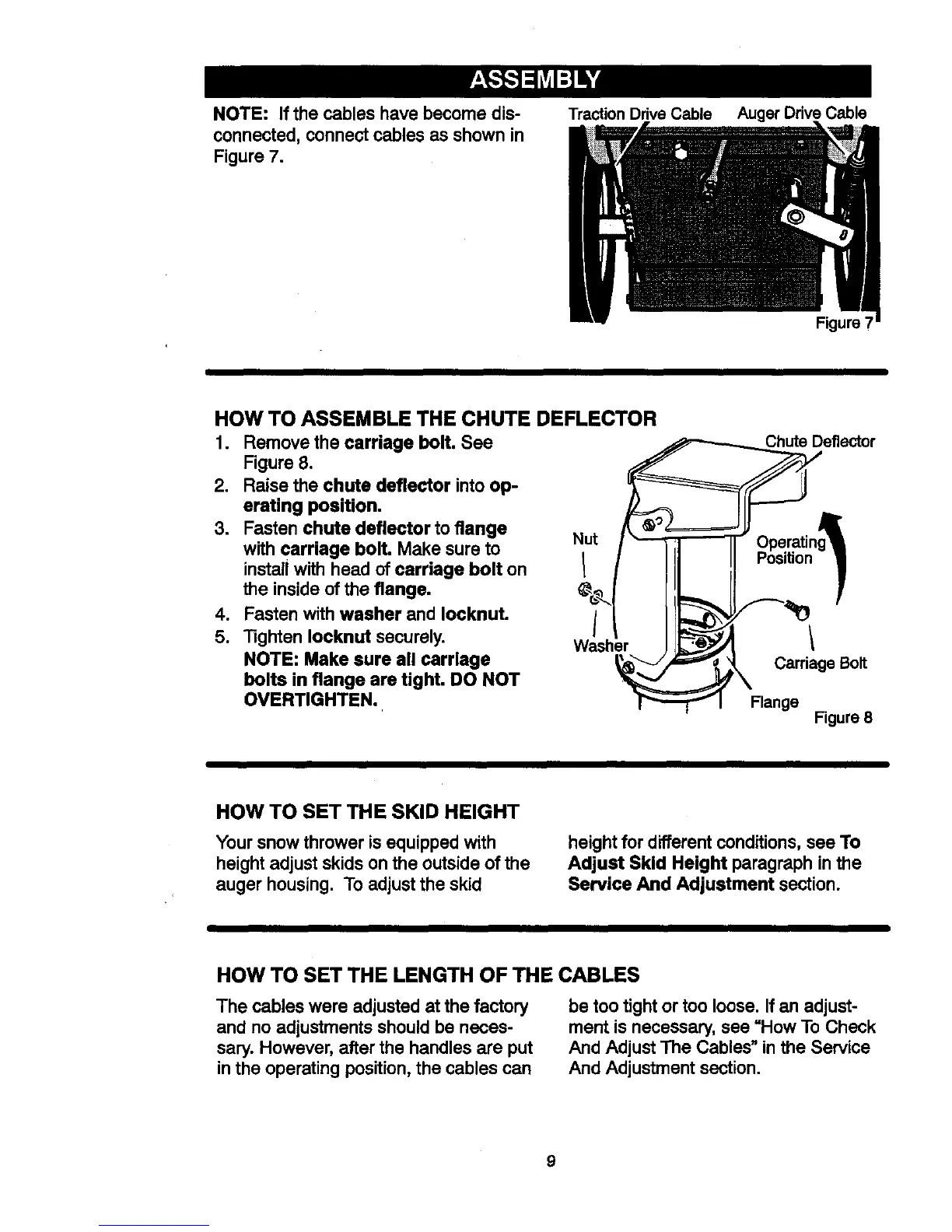

NOTE: If the cables have become dis-
connected, connect cables as shown in
Figure 7.
Traction Drive Cable Auger Drive Cable
HOW TO ASSEMBLE THE CHUTE DEFLECTOR
1. Remove the carriage bolt. See
Figure8.
2. Raise the chute deflector into op-
erating position.
3. Fasten chute deflector to flange
with carriage bolt, Make sure to
installwith head ofcarriage bolt on
the insideof the flange.
4. Fasten with washer and Iocknut.
5. 13ghten Iocknut securely.
NOTE: Make sure all carriage
bolts in flange are tight. DO NOT
OVERTIGHTEN,
Nut
Figure 7
Chute Deflector
Operating_
Position
CarriageBolt
Flange
Figure8
HOW TO SET THE SKID HEIGHT
Your snow thrower is equipped with
height adjust skids on the outside of the
auger housing. To adjust the skid
height for different conditions, see To
Adjust Skid Height paragraph in the
Service And Adjustment section.
HOW TO SET THE LENGTH OF THE CABLES
The cables were adjusted at the factory
and no adjustments should be neces-
sary. However, after the handles are put
in the operating position, the cables can
be too tight or too loose. If an adjust-
ment is necessary, see =How To Check
And Adjust The Cables" in the Service
And Adjustment section.
To Next Page
