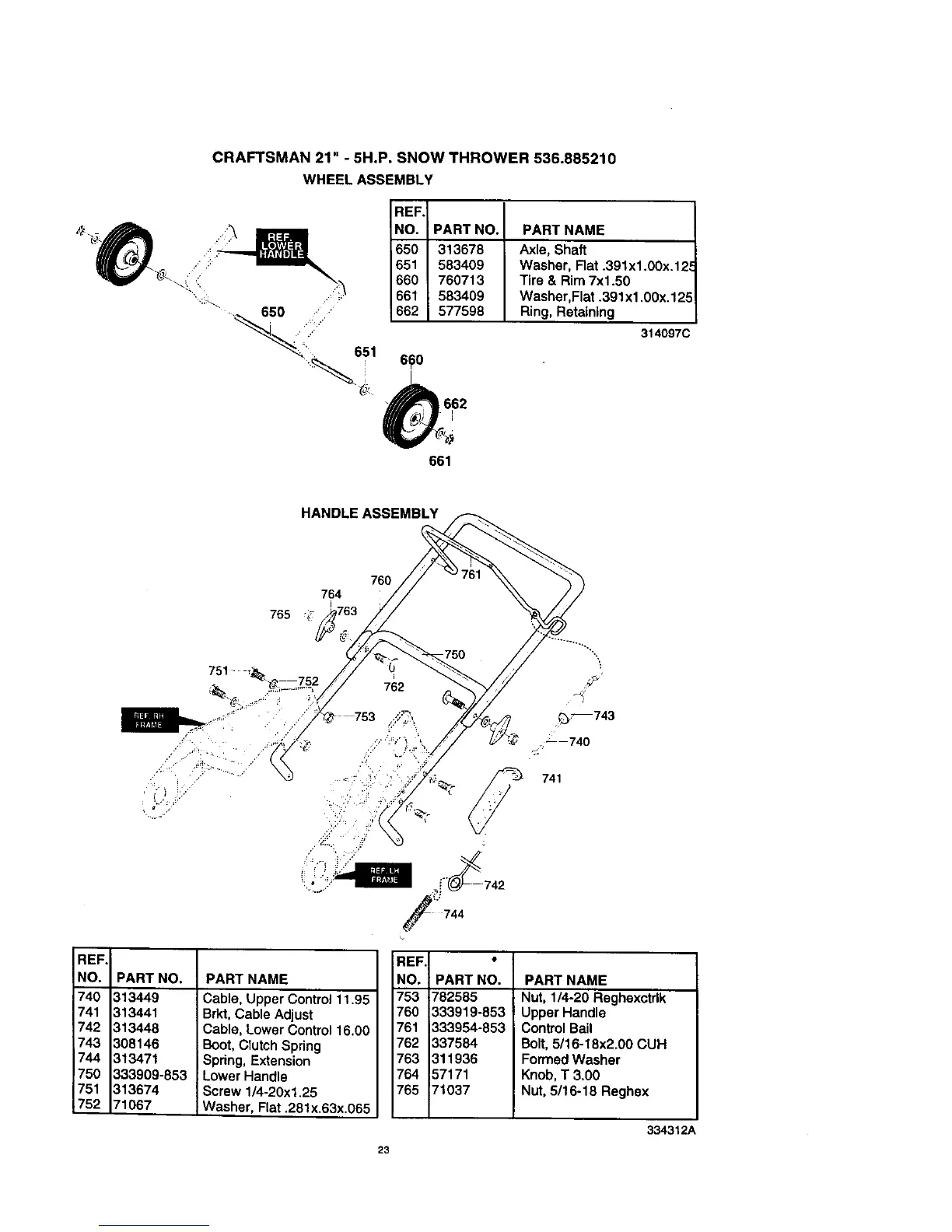

CRAFTSMAN 21" -5H.P. SNOW THROWER 536.885210
WHEEL ASSEMBLY
iiIIIII
651
;_ 662
681
REF.
NO. PART NO. PART NAME
650 313678 Axle, Shaft
651 583409 Washer, Rat .391x1.00x.12, =
660 760713 Tire & Rim 7xl .50
661 583409 Washer,Flat .391xl .00x.12!
662 577598 Ring, Retaining
314o97c
HANDLE ASSEMBLY
760
764
765 _
REF.
NO.
740
741
742
743
744
750
751
752
" =.i
PART NO.
313449
] 13441
313448
308146
313471
333909-853
313674
71067
PARTNAME
Cable, Upper Control 11.95
Brkt, Cable Adjust
Cable, Lower Control 16.00
Boot, Clutch Spring
Spdng, Extension
Lower Handle
Screw 1/4-20xl .25
Washer, Flat .281x.63x.065
762
[.-
750
741
42
_" 744
REF
NO. PART NO.
753 782585
760 333919-853
761 333954-853
762 337584
763 311936
764 57171
765 71037
PART NAME
Nut, 1/4-20 Reghexctdk
i Upper Handle
i ControlBail
Bolt, 5/16-18x2.00 CUH
FormedWasher
Knob,T 3.00
Nut, 5/16-18 Reghex
334312A
23
