ASSEMBLY / PRE-OPERATION
Read these instructions and this manual
in its entirety before you attempt to as-
semble or operate your new lawn mower.
IMPORTANT: This lawn mower is shipped
WITHOUT OIL OR GASOLINE in the
engine.
Your new lawn mower has been as sem-
bled at the factory with the exception of
those parts left unassembled for shipping
pur pos es. To ensure safe and proper op-
er a tion of your lawn mower, all parts and
hard ware you assemble must be tight-
ened securely. Use the correct tools as
nec es sary to ensure proper tightness. All
parts such as nuts, wash ers, bolts, etc.,
nec es sary to complete the as sem bly have
been placed in the parts bag.
TOOLS REQUIRED FOR AS SEM BLY
1/2" Wrench
TO REMOVE MOWER FROM
CARTON
1. Remove loose parts included with
mower.
2. Cut down two end corners of carton
and lay end panel down flat.
3. Remove all packing materials except
padding be tween upper and lower
handle and padding holding operator
presence control bar to upper handle.
4. Roll lawn mower out of carton and
check carton thor ough ly for additional
loose parts.
MOWING
POSITION
Lower handle
LIFT
UP
Operator
presence
control bar
Bolt
Nut
Bracket
Upper
handle
LIFT
UP
Handle
knob

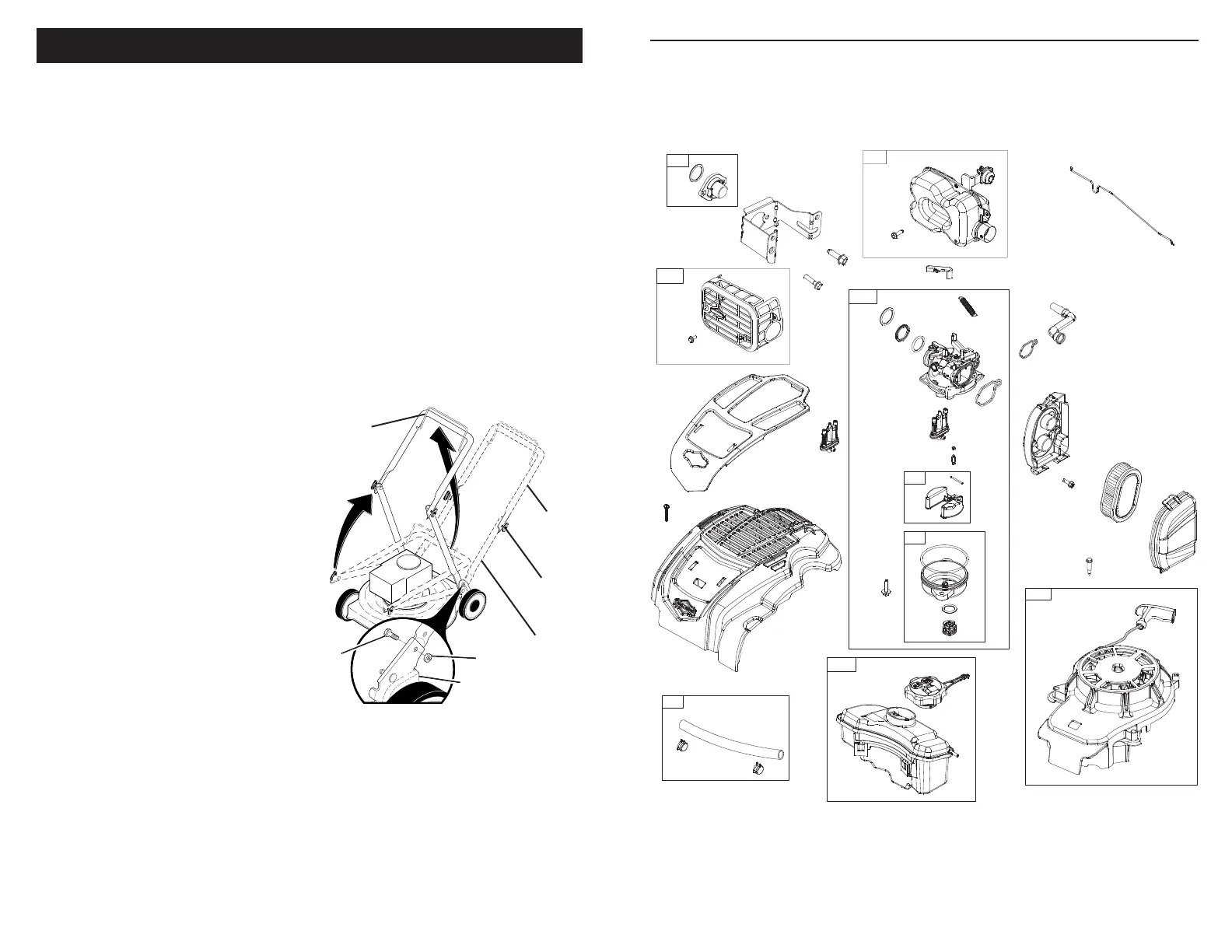

HOW TO SET UP YOUR LAWN
MOW ER
TO UNFOLD HANDLE
IMPORTANT: Unfold handle carefully so
as not to pinch or damage con trol cables.
1. Raise handles until lower handle sec-
tion locks into place in mowing posi-
tion.
2. Insert bolt through handle and bracket
and secure with nut. A 1/2" wrench will
be required.
3. Remove protective padding, raise up-
per handle sec tion into place on lower
handle and tighten both handle knobs.
4. Remove handle padding holding
operator pres ence control bar to upper
handle.
Your lawn mower handle can be adjusted
for your mowing comfort. Refer to “AD-
JUST HANDLE” in the Service and Adjust-
ments section of this manual.
