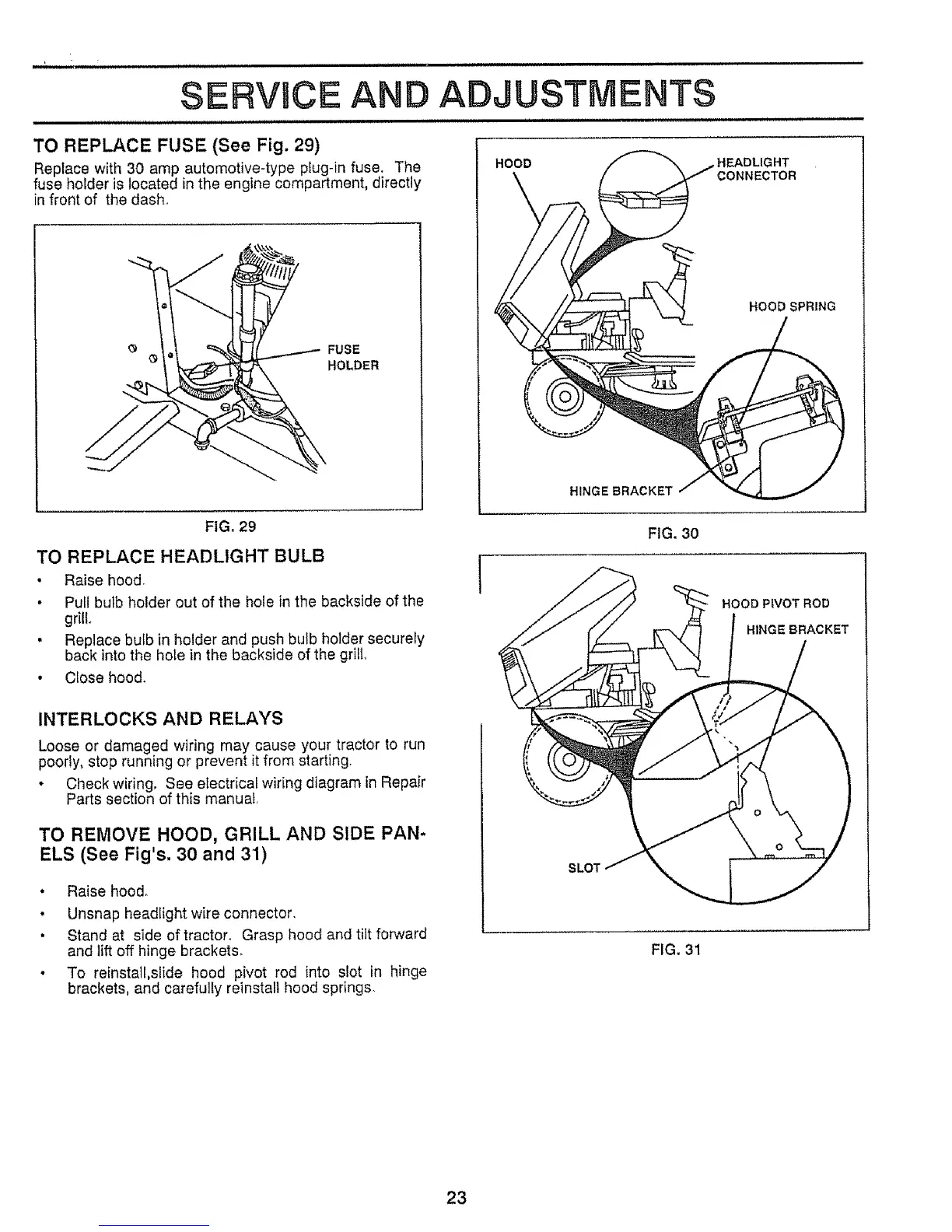

SERVICE AN
TO REPLACE FUSE (See Fig. 29)
Replace with 30 amp automotive-type plug-in fuse. The
fuse holder is located in the engine compartment, directly
in front of the dash.
FUSE
HOLDER
ADJUSTMENTS
ii iiii NIIIII, ,NN,, ,,,,,, ,,, I L,,JJUL_IIIJlJI,,UUL
HOOD
CONNECTOR
HOOD SPRING
HINGEBRACKET
FIG. 30
FIG, 29
TO REPLACE HEADLIGHT BULB
• Raise hood.
• Pull bulb holder out of the hole in the backside ofthe
grill.
• Replace bulb in holder and push bulb holder securely
back into the hole in the backside of the grill
• Close hood.
INTERLOCKS AND RELAYS
Loose or damaged wiring may cause your tractor to run
poorly, stop running or prevent it from starting.
• Check wiring, See electrical wiring diagram in Repair
Parts section of this manual,
TO REMOVE HOOD, GRILL AND SIDE PAN-
ELS (See Fig's. 30 and 31)
• Raise hood°
• Unsnap headlight wire connector,
• Stand at side of tractor, Grasp hood and tilt forward
and lift off hinge brackets,
• To reinstall,slide hood pivot rod into slot in hinge
brackets, and carefully reinstall hood springs,
[
HOOD PIVOT ROD
HINGE BRACKET
SLOT
FIG. 31
