Craftsman 919.174211 User Manual

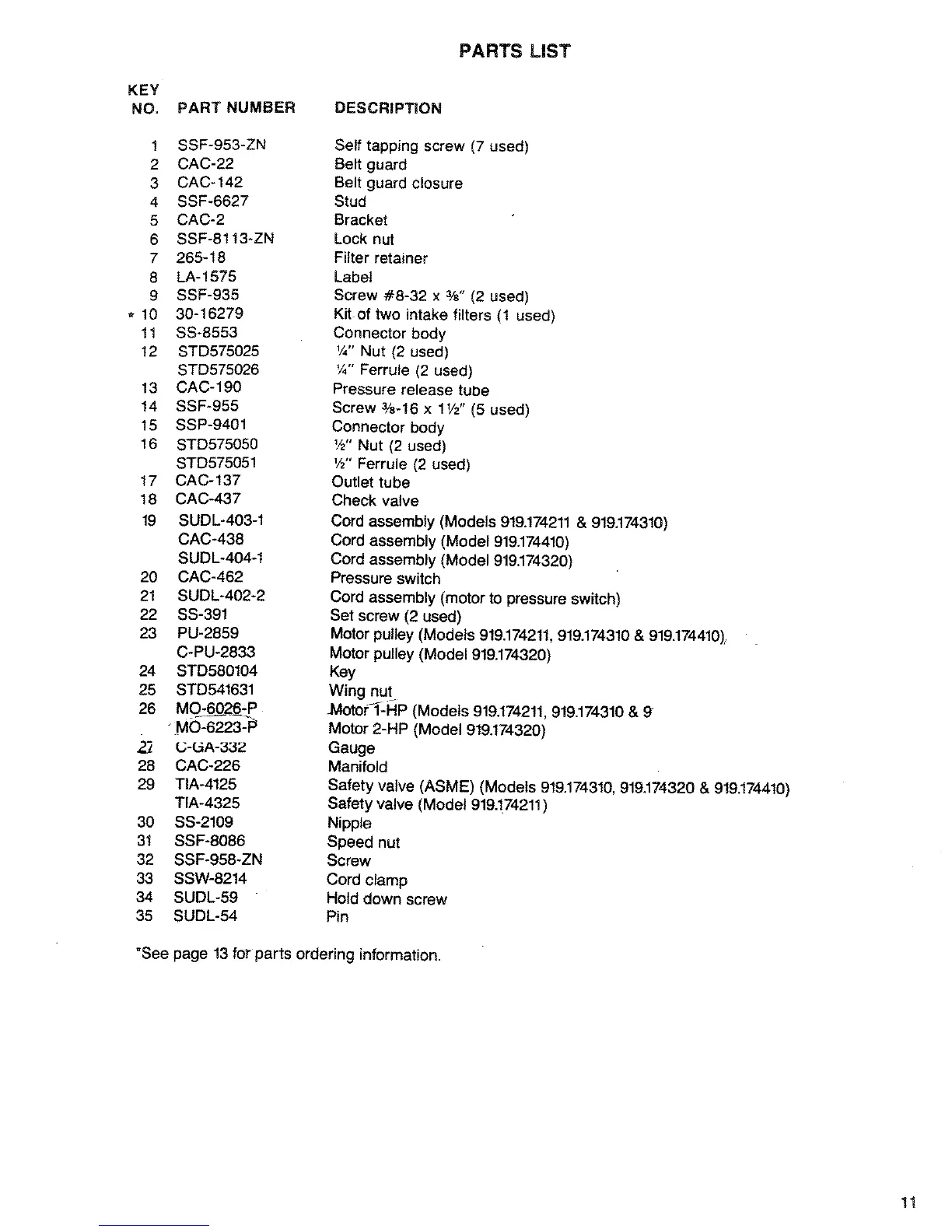

PARTS LIST
KEY
NO,
PART NUMBER DESCRIPTION
1 SSF-953-ZN
2 CAC-22
3 CAC-142
4 SSF-6627
5 CAC-2
6 SSF-8113-ZN
7 265-18
8 LA-1575
9 SSF-935
* 10 30-16279
11 SS-8553
12 STD575025
STD575026
13 CAC-190
14 SSF-955
15 SSP-9401
16 STD575050
STD575051
17 CAC-137
18 CAC-437
19 SUDL-403-1
CAC-438
SUDL-404-1
20 CAC-462
21 SUDL-402-2
22 SS-391
23 PU-2859
C-PU-2833
24 STD580104
25 STD541631
26 MO-6026-p
MO-6223-P
27 C-5A-332
28 CAC-226
29 TIA-4125
TIA-4325
30 SS-2109
31 SSF-6086
32 SSF-958-ZN
33 SSW-8214
34 SUDL-59
35 SUDL-54
Self tapping screw (7 used)
Belt guard
Belt guard closure
Stud
Bracket
Lock nut
Filter retainer
Label
Screw #8-32 x _" (2 used)
Kit of two intake filters (1 used)
Connector body
W' Nut (2 used)
V4"Ferrule (2 used)
Pressure release tube
Screw 3/s-16 x 11/2" (5 used)
Connector body
1/2"Nut (2 used)
'/=" Ferrule (2 used)
Outlet tube
Check valve
Cord assembly (Models 919.174211& 919.174310)
Cord assembty (Model 919.174410)
Cord assembly (Model 919.174320)
Pressure switch
Cord assembly (motor to pressure switch)
Set screw (2 used)
Motor pulley (Models 919.174211,919.174310& 919.174410),
Motor pulley (Model 919.174320)
Key
Wing nut
Motor_.l_P (Models 919.174211,919.174310 & 9
Motor 2-HP (Model 919.174320)
Gauge
Manifold
Safety valve (ASME) (Models 919.174310,919.174320 & 919.174410)
Safety valve (Model 919.!74211)
Nippte
Speed nut
Screw
Cord clamp
Hold down screw
Pin
"See page 13 for parts ordering information.
