ASSEMBLY
4. The rope guide is attached to the right side of the upper handle.
Loosen the wing knob which secures the rope guide. See Figure 6.
a. Hold blade control against upper handle.
b. Slowly pull starter rope handle from engine and slip starter
rope into the rope guide. See Figure 6.
c. Tighten rope guide wing knob.
d. Use cable tie(s) to secure cable(s) to lower handle.
Grass Catcher
Follow steps below to assemble the grass catcher (if needed). Make
certain bag is turned right side out before assembling (warning label
will be on the outside).
a. Place bag over frame so that its black plastic side is at the
bottom.
b. Slip plastic channel of grass bag over hooks on the frame.
See Figure 7.
Follow steps below to attach grass catcher:
a. Lift rear discharge door.
b. Place grass catcher into the slots in the handle brackets as
shown in Figure 8. Let go of discharge door so that it rests
on the grass catcher.
To remove grass catcher, lift rear discharge door on the mower. Lift
grass catcher up and of the slots in the handle brackets. Release rear
discharge door to allow it to close rear opening of mower.

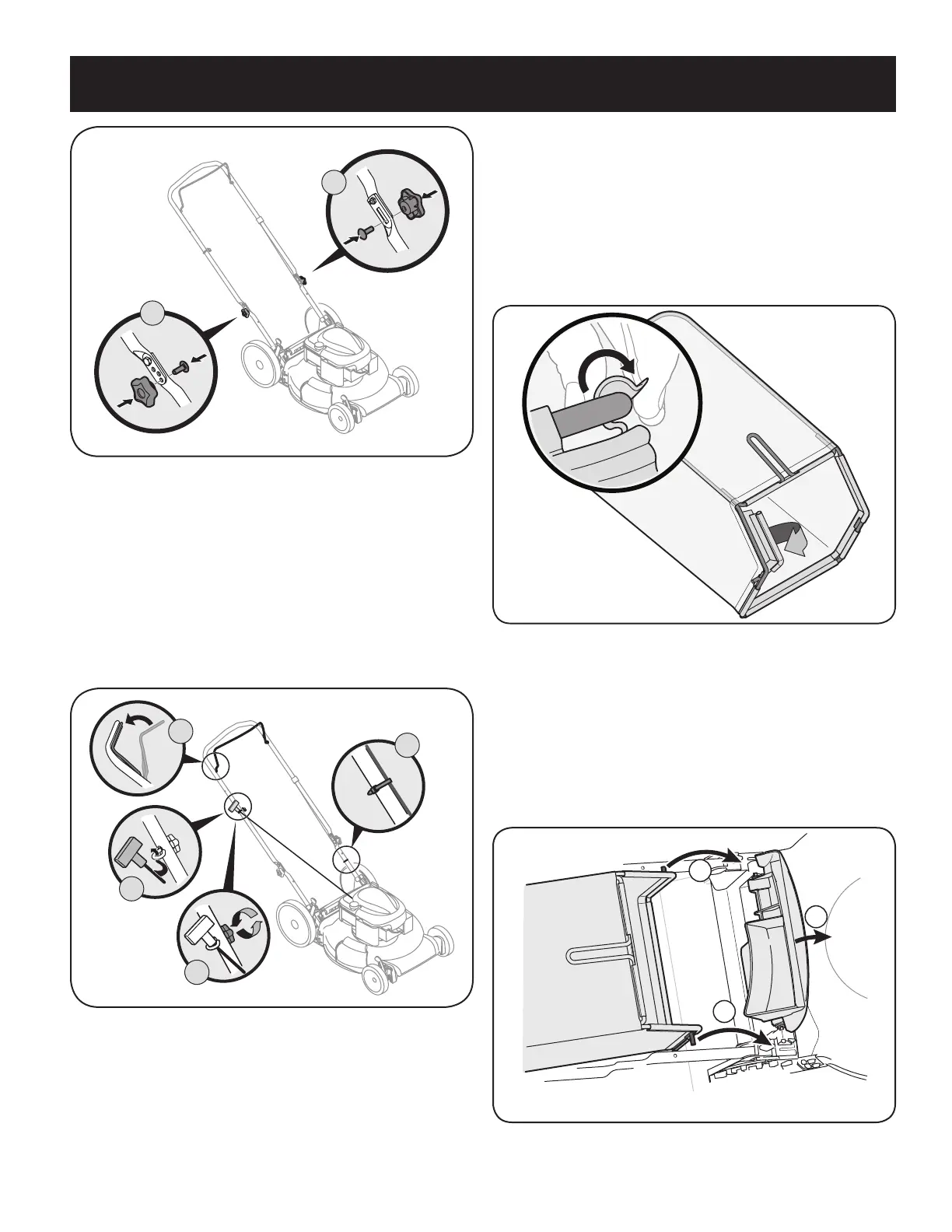

Figure 7
Figure 5
Figure 6
Figure 8
A
B
B
C
C
A
B
C
D
