Craftsman CMCST900D1 User Manual

7
ENGLISH

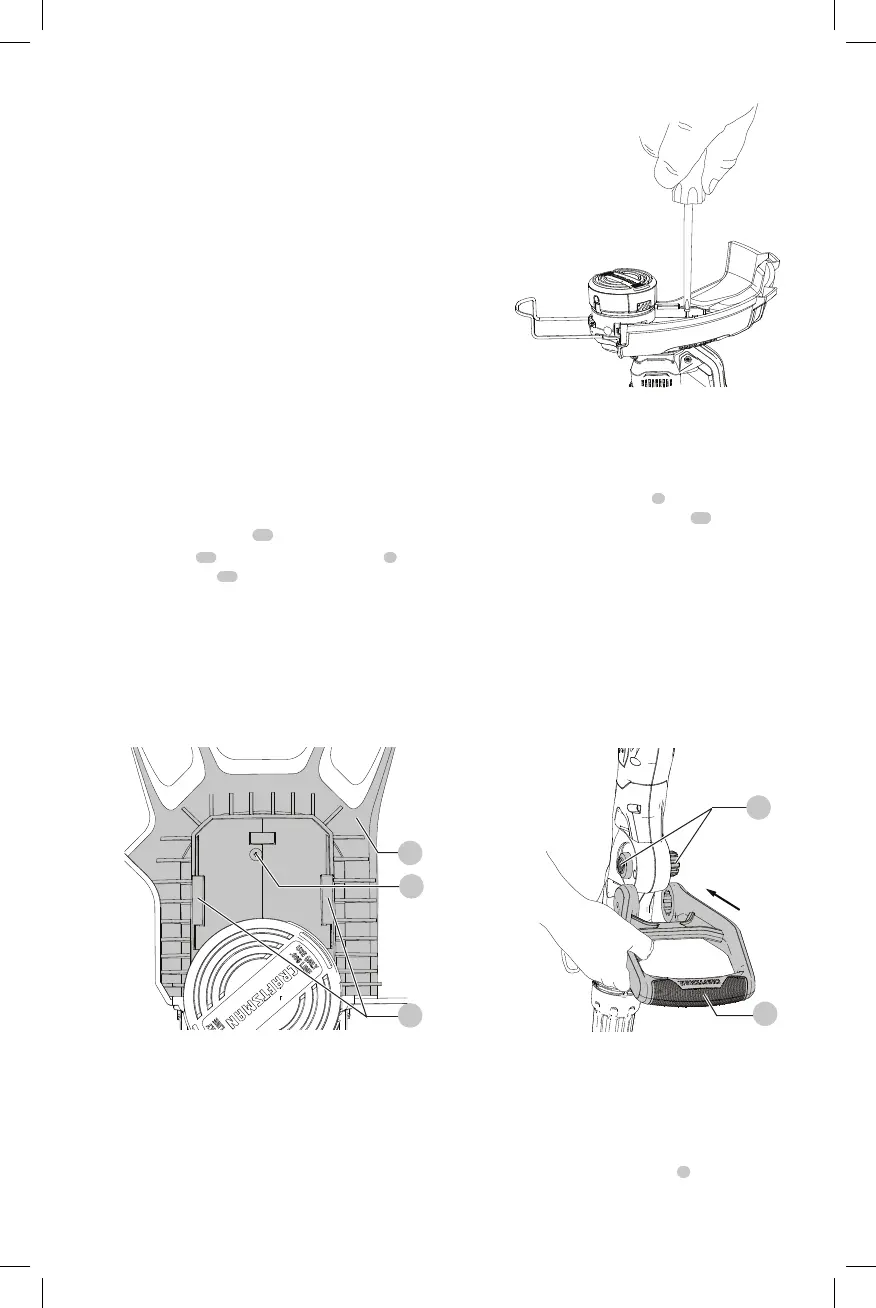

Attaching Guard (Fig. B, C)

WARNING: Never remove the guard.
Damage or personal injury couldresult.

WARNING: NEVER OPERATE
APPLIANCE WITHOUT GUARD FIRMLY IN PLACE.
The guard must always be properly attached on the
appliance to protect theuser.
1. Remove the guard screw
16
.
2. Slide the guard
11
fully onto the trimmer head
8
.
Make sure the tabs
17
on the guard engage the ribs on
the trimmer head.
3. Continue to slide the guard on until it “snaps”into place.
The locking tab should snap into the housing slot.
4. Using a crosshead screwdriver, insert the guard screw
and tighten securely.
5. Once the guard is installed, remove the covering from
the line cut-off blade, located on the edge of the guard.
Fig.B
16
11
17
Fig.C
Attaching the Auxiliary Handle (Fig. D)
For some models the auxiliary handle may need to be
attached. If the model needs the auxiliary handle attached,
please refer to these instructions.
1. To attach the auxiliary handle
5
, press in on the
auxiliary handle adjustment buttons
15
on both sides
of the upper housing as shown in Figure D.
2. Position the auxiliary handle as shown in Figure D .
Partially push the auxiliary handle on so it will hold the
buttons in when you release them with your hand.
3. Push the auxiliary handle completely onto the housing
and position it slightly until it “snaps” into place.
NOTE: To adjust the auxiliary handle up or down, press in
on the buttons and raise or lower the handle.
NOTE: The handle should be adjusted so that your front
arm is straight when the trimmer is in the working position.
Fig.D
15
5
Height Adjustment (Fig. E)

CAUTION: Adjust the length of the trimmer
to obtain proper working positions.
1. The overall height of the trimmer can be adjusted by
loosening the height-adjust collar
6
by rotating it in the
direction of the arrow shown in Figure E.
ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of
serious personal injury, turn unit off and
remove the battery pack before making any
adjustments or removing/installing attachments
or accessories, when replacing line, or prior to
cleaning. An accidental start-up can causeinjury.
DO NOT let children come into contact with the tool.
Supervision is required when inexperienced operators use
thistool.

Craftsman CMCST900D1 Specifications

General

Brand	Craftsman
Model	CMCST900D1
Category	Trimmer
Language	English
