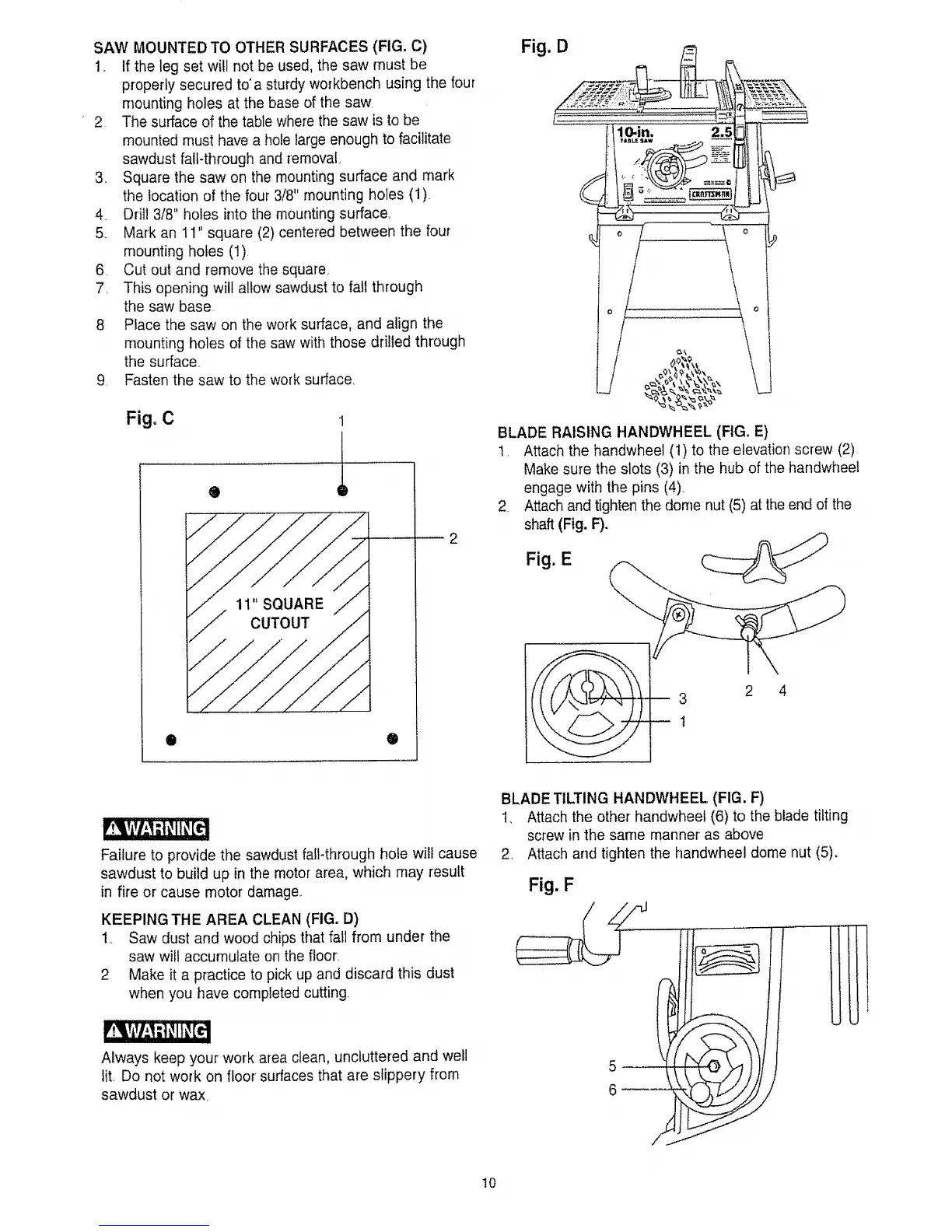

SAWMOUNTEDTOOTHERSURFACES(FIG.C)
1 Ifthelegsetwillnotbeused,thesawmustbe
properlysecuredto'asturdyworkbenchusingthefour
mountingholesatthebaseofthesaw
2 Thesurfaceofthetablewherethesawistobe
mountedmusthaveaholelargeenoughtofacilitate
sawdustfall-throughandremoval.
3_ Squarethesawonthemountingsurfaceandmark
thelocationof thefour3/8"mountingholes(1)
4 Dril!3/8"holesintothemountingsurface_
5. Markan11"square(2)centeredbetweenthefour
mountingholes(1)
6 Cutoutandremovethesquare
7 Thisopeningwillallow sawdust to fall through
the saw base
8 Place the saw on the work surface, and align the
mounting holes of the saw with those drilled through
the surface.
9 Fasten the saw to the work surface
Fig° C
2
O
Fig. D
BLADE RAISING HANDWHEEL (FIG. E)
1 Attach the handwheel (1) to the elevation screw (2)
Make sure the slots (3) in the hub of the handwheel
engage with the pins (4)
2 Attach and tighten the dome nut (5) at the end of the
shaft (Fig. F).
Fig. E
3 2 4
Failure to provide the sawdust fall-through hole will cause
sawdust to build up in the motor area, which may result
in fire or cause motor damage
KEEPING THE AREA CLEAN (FIG. D)
1. Saw dust and wood chips that fall from under the
saw will accumulate on the floor
2 Make it a practice to pick up and discard this dust
when you have completed cutting
Always keep your work area clean, uncluttered and well
lit, Do not work on floor surfaces that are slippery from
sawdust or wax,
BLADE TILTING HANDWHEEL (FIG, F)
1. Attach the other handwheet (6) to the blade tilting
screw in the same manner as above
2 Attach and tighten the handwheel dome nut (5).
Fig. F
t0
