Creality CR-10 Series User Manual

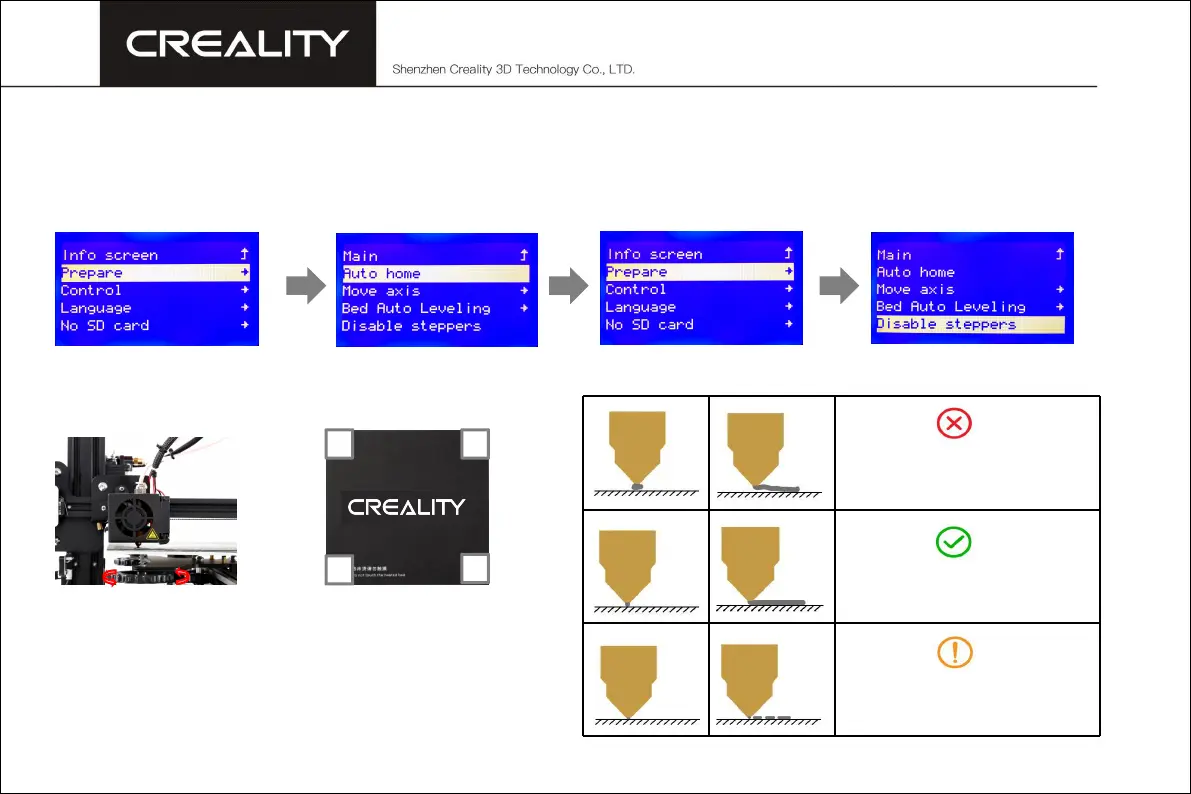

1. Prepare →Auto Home. Waiting for the nozzle to move to the left/front of the platform.→ Prepare→Disable Steppers(Close stepper drive，release motor）
2. Move the nozzle to the front/left leveling screw and adjust the
platform height by turning the knob underneath. Use a piece of
A4 paper (standard printer paper) to assist with the adjustment,
making sure that the nozzle lightly scratches the paper.
3. Complete the adjustment of the screws on all 4 corners.
4. Repeat above steps 1-2 times if necessary.
1
2
34
07/
Bed Leveling
1111111
11111
The nozzle is too far away from the
platform, so the filament can not
adhere to the platform.
Filament are extruded evenly, just
sticking on the platform.
The nozzle is too close to the platform,
and the filament are not extruded
enough, even scraping the platform.

Creality CR-10 Series Specifications

General

Build Volume	300 x 300 x 400 mm
Layer Resolution	0.1-0.4 mm
Filament Diameter	1.75 mm
Connectivity	SD Card, USB
Bed Temperature	Up to 100°C
Power Supply	110V/220V, 360W
Nozzle Diameter	0.4 mm (can be replaced with other sizes)
Supported Materials	PLA, ABS, PETG, TPU
Display	LCD
Frame Structure	Aluminum frame

Summary

Introduction

General List

Device Installation

Install the Gantry Frame

Secure the Gantry Frame to the base using M5X25 bolts.

Install the T-Shaped Fixing Block

Attach the T-shaped block to the profile, ensuring correct nut orientation.

Install the Rack

Attach the bracket and spool holder to the printer rack system.

Install Decoration Strip

Apply decorative strips to the printer for aesthetic enhancement.

Cable Connection

Connect Stepper Motors

Connect stepper motors to 6-pin ports based on yellow labels.

Connect Limit Switches

Connect limit switches to 3-pin ports based on yellow labels.

Connect Aviation Connectors

Connect aviation connectors to the power supply ports.

Screen Information

Loading Filament

Preheat the Nozzle

Preheat nozzle to the specified temperature for filament loading.

Feed Filament

Insert filament into extruder and feed until it extrudes from nozzle.

Bed Leveling

Prepare and Auto Home

Prepare printer and auto home nozzle to starting position.

Adjust Platform Height

Adjust platform height using leveling screws and paper for nozzle clearance.

Complete Corner Adjustments

Adjust leveling screws on all four corners of the platform.

Repeat Leveling Process

Repeat bed leveling steps 1-2 times for optimal results.

Software Installation

Install Creality Slicer Software

Double click installer to begin Creality Slicer software installation.

Launch and Configure Slicer

Launch slicer, select language, machine, and complete configuration.

First Printing

Slicing the Model

Load model in slicer, slice, and save gcode file to TF card.

Start Printing

Insert TF card, select file on printer, and initiate printing.

After-Sales Service

Service Overview

Details on printer return, replacement, and warranty periods.

Replacement Requirements

Conditions for product return/replacement: appearance and completeness.

Warranty Coverage

Items included/excluded from warranty and specific component warranty periods.
