Operation Manual
CE Series Power Amplifiers
page 10
2 Setup

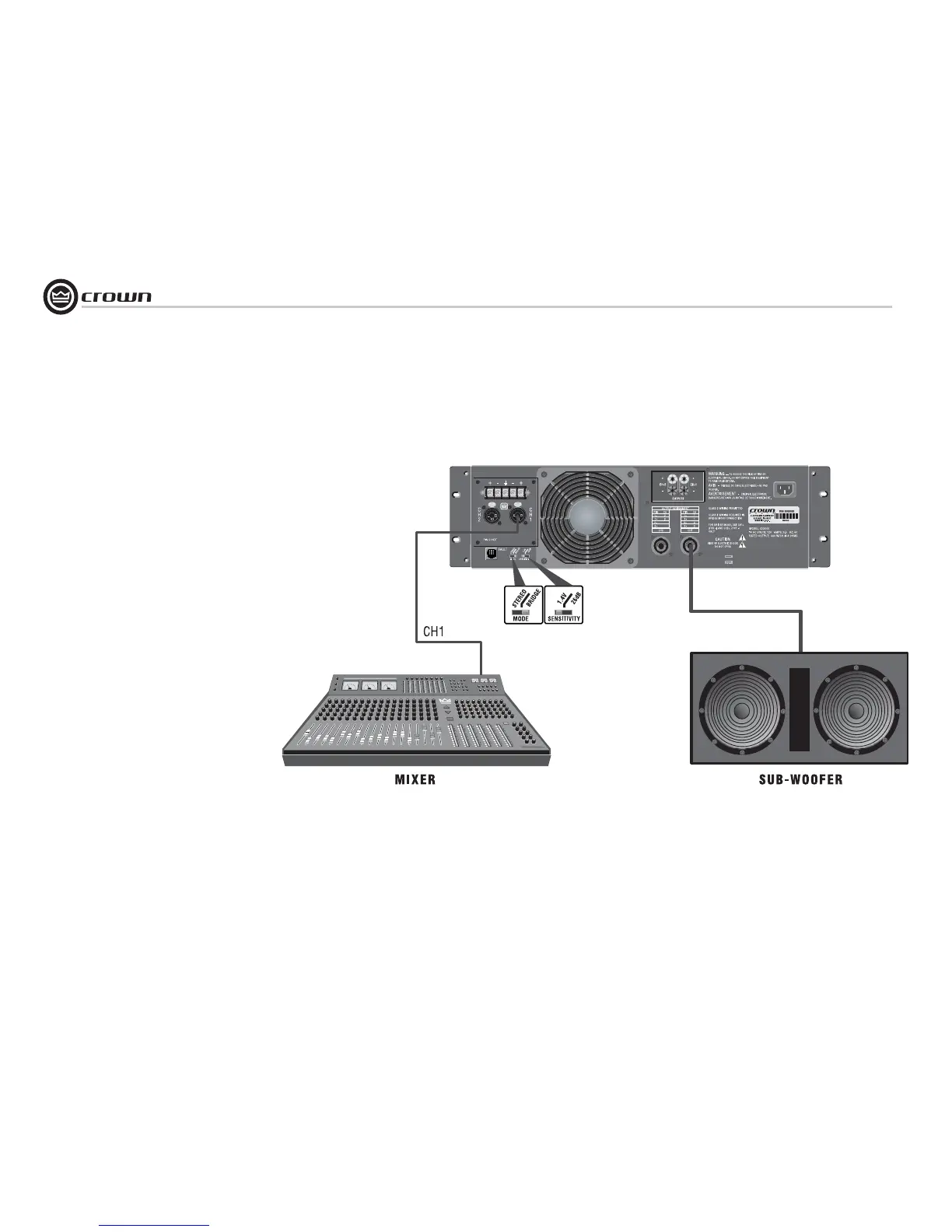

Figure 2.11 Typical System Wiring, Bridge-Mono Mode
2.6.3 Bridge-Mono Mode
Make sure the amplifier is turned off and the
level controls are turned down before you wire
the system.
Typical input and output wiring is shown in
Figure 2.11.
INPUTS: Connect input wiring to CH 1.
OUTPUTS: Connect the speaker across the posi-
tive (+) output terminals. Do not use the negative
(–) terminals when the amplifier is being oper-
ated in Bridge-Mono mode. Refer to Section 2.5
for output connector pin assignments. Make
sure the Mode switch is set to the “Bridge” posi-
tion when operating in Bridge-Mono mode.
NOTE: Turn down (full CCW) the Channel
2 level control when operating the
channel pair in Bridge-Mono mode, as
the Channel 1 level control works both
channels.
NOTE: Crown provides a reference of wiring pin
assignments for commonly used connector
types in the Crown Amplifier Application Guide
available at www.crownaudio.com.
