page 11
D Series Power Amplifiers
Operation Manual
3.2 Controls, Indicators and Con-
nectors

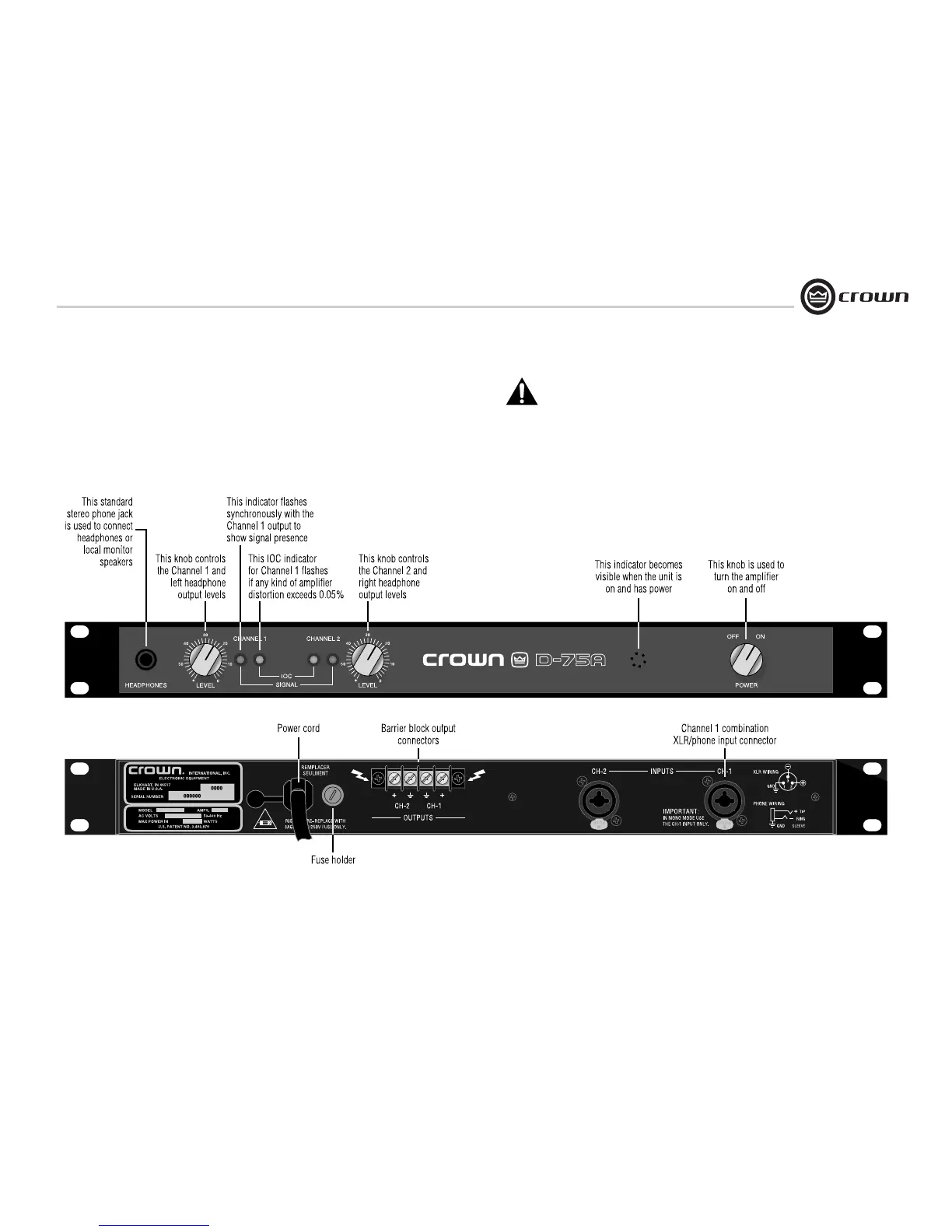

Figure Figure 3.1 shows the controls, indica-
tors and connectors on the front panel and back
panel of the D-75A. The D-45 layout is similar.
Figure 3.1 Front and Back Views
3 Operation
WARNING: HEADPHONE JACK
SUPPLIES FULL OUTPUT POWER AND
MAY DAMAGE HEADPHONES OR
CAUSE HEARING DAMAGE.
