Setup and
Adjustment
IMPORTANT: This unit is shipped without
gasoline or oil in the engine. Fill up gasoline and
oil as instructed in the accompanying engine
manual BEFORE operating your mower.
NOTE: Reference to right or left side of the
mower is observed from the operating position.
Handle Setup
1. Perform the following sequence for
handle setup
a. Lift the upper handle up from folded position
and pull it to extended position (A) following
the arrow in Step 1. The handle should click
into this position.
b. Make sure the carriage bolt is seated properly
in the handle. Tighten wing nuts (B) securing
upper handle to the lower handle.
2. Locate hairpin clip in one hole on the weld pin on
each side of lower handle.
a. Remove hairpin clip from this hole. Using a pair
of pliers, insert hairpin clip into the other hole
on the weld pin. Repeat on other side. See
Step 2.
3. Rope guide Setup as follows in Step 3:
a. Hold the blade control handle against the
upper handle. Position A.
b. Slowly pull starter rope out of the engine.
Position B.
c. Slip starter rope into the rope guide. Position C.
d. Tighten rope guide wing nut. Position D.

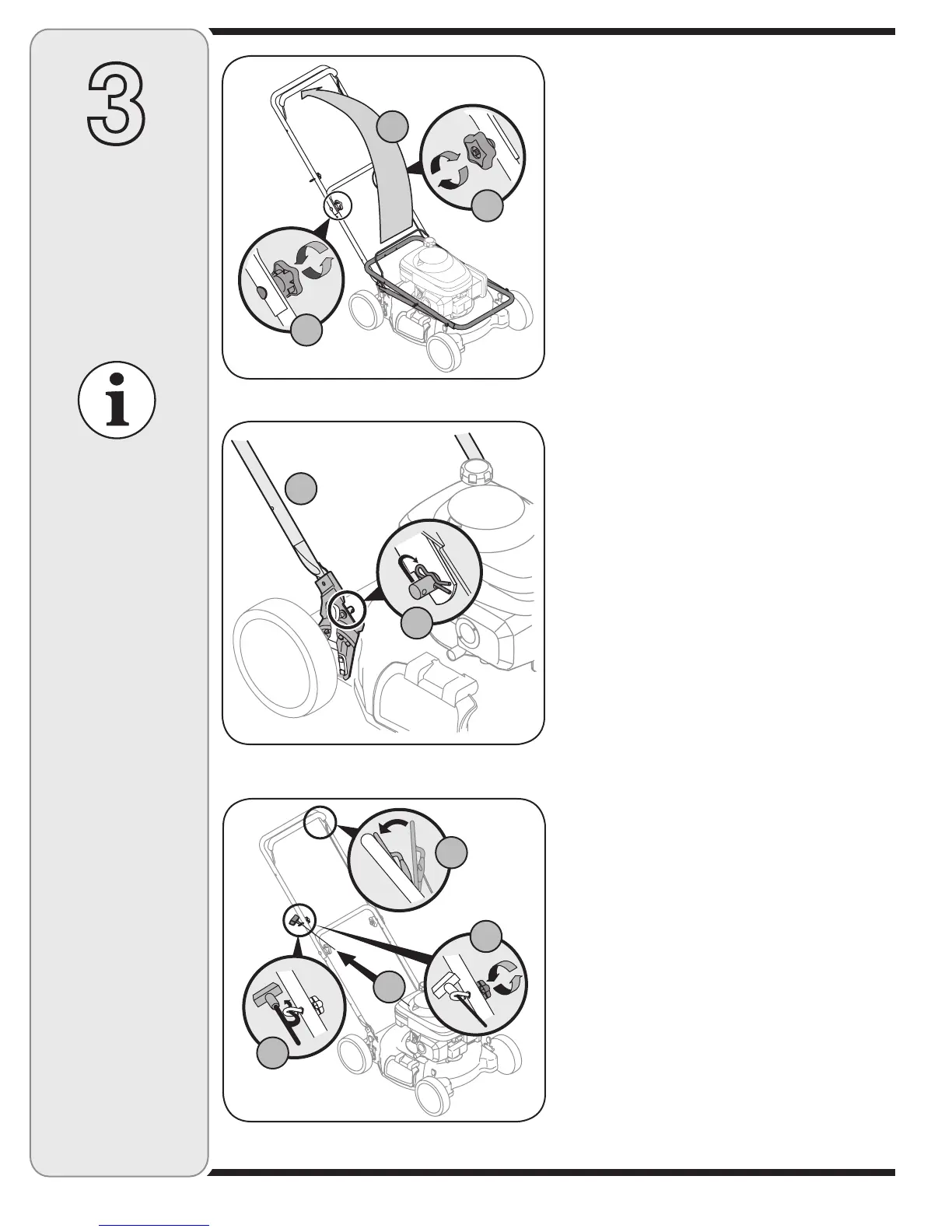

Step 3
Step 2
Step 1
IMPORTANT
This unit is shipped
without gasoline or
oil in the engine. Fill
up gasoline and oil
as instructed in the
accompanying engine
manual BEFORE
operating your mower.
NOTE: Reference to
right or left side of the
mower is observed
from the operating
position.
A
B
B
A
B
A
B
D
B
