28
• Install the new belt routing it EXACTLY as the old
one was routed. Refer to Figure 28.
• Install all tractor components by reversing the
previous instructions and following in the reverse
order.
IMPORTANT:
When remounting the electric PTO clutch,
make certain that is properly oriented against the anti-
rotation bracket prior to securing it to the engine’s
crankshaft. Torque the center hex bolt to between 38
foot-pounds and 50 foot-pounds.
Hydrostatic Transmission
The hydrostatic transmission is sealed at the factory
and is maintenance free. The fluid level cannot be
checked nor can the oil be changed.
Keep the area around the transmission cooling fan free
of grass and debris at all times.

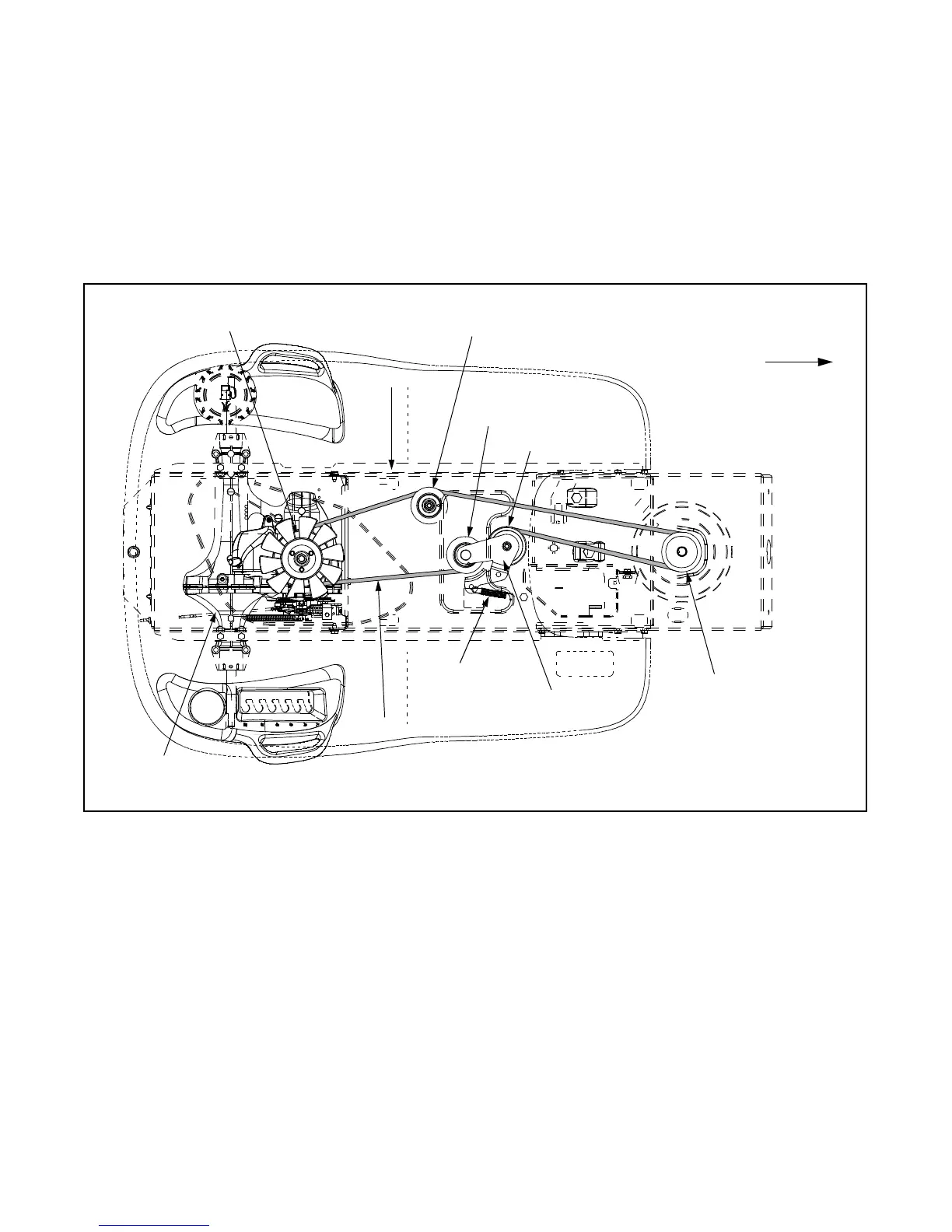

Figure 28
FRONT OF TRACTOR
Fixed V-idler Pulley
Transmission Pulley
Engine Pulley
Hydrostatic
Double-Idler Bracket
V-idler Pulley
NOTE:
View shown from above tractor.
Idler Extension Spring
Drive Belt
Left Frame Rail
Flat idler Pulley
(Beneath Cooling Fan)
Transmission
