Controls & Features
4
9
Chute Assembly
Recoil Starter Handle
Auger
Auger Control
Chute Control Handle
Shave Plate

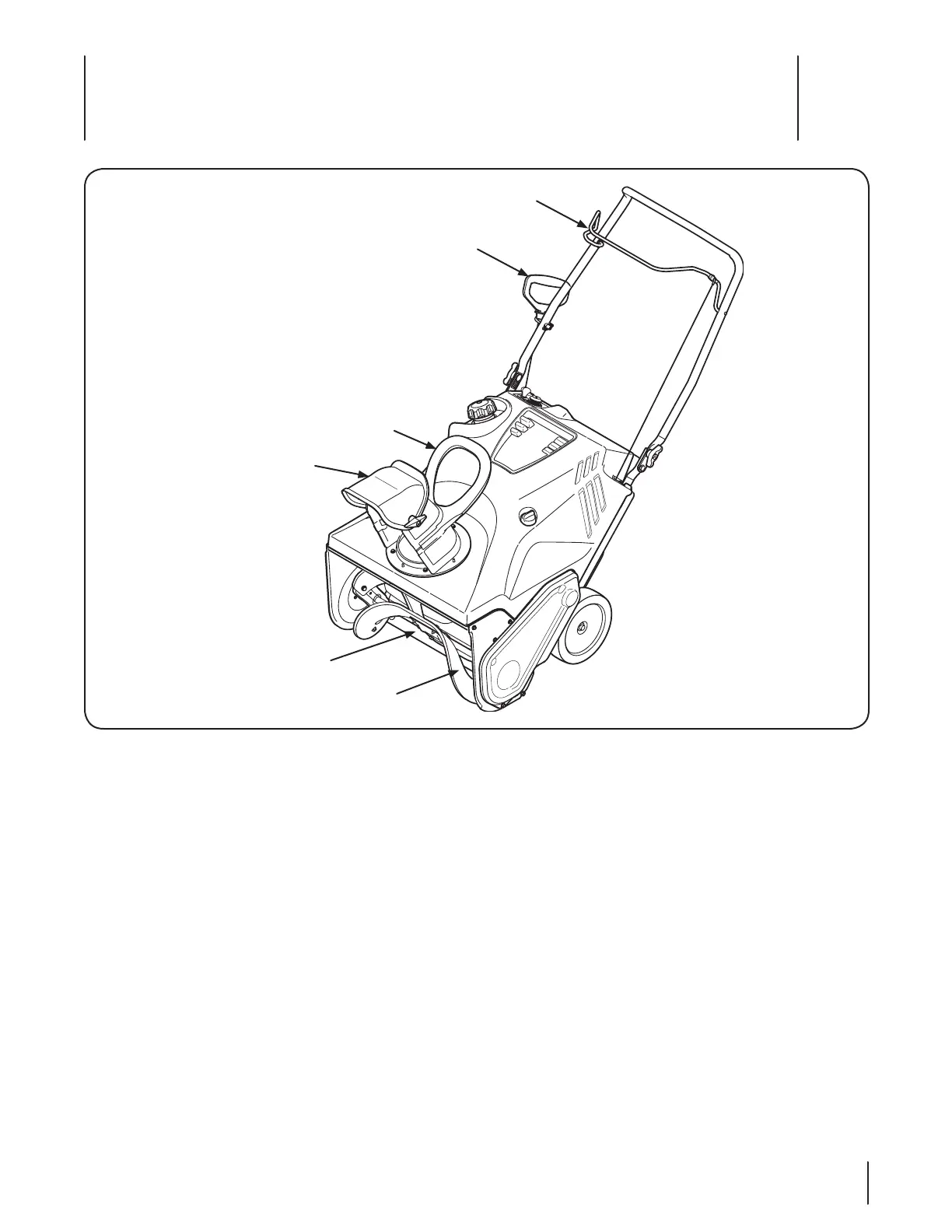

Figure 4-1
Auger
When engaged, the auger rotation draws snow into the auger
housing and throws it out the discharge chute. Rubber paddles
on the auger also aid in propelling the snow thrower as they
come in contact with the pavement.
Auger Control
Located on the upper handle, the auger control is used to
engage and disengage drive to the auger. Squeeze the control
against the upper handle to engage the auger; release it to
disengage.
EZ Chute
The rotation of the chute is controlled by rotating the chute
control handle left or right. The angle/distance that snow is
thrown is changed by manually tilting the upper chute to the
desired position.
Shave Plate
The shave plate maintains contact with the pavement as
the snow thrower is propelled, allowing snow close to the
pavement’s surface to be discharged.
Recoil Starter Handle
The recoil starter handle is used to manually start the engine.
