HEAD LIGHT BULB REPLACEMENT
The tractor is equipped with four headlight bulbs. If
one of the bulbs should burn out, replace the bulb
as follows:
• Fully raise the hood so that the hood prop
cylinders hold the hood in the raised position.
• Pull both locking tabs of the wire harness plug
away from the bulb/socket assembly and
unplug the wire harness from the bulb
assembly. See Figure 37.

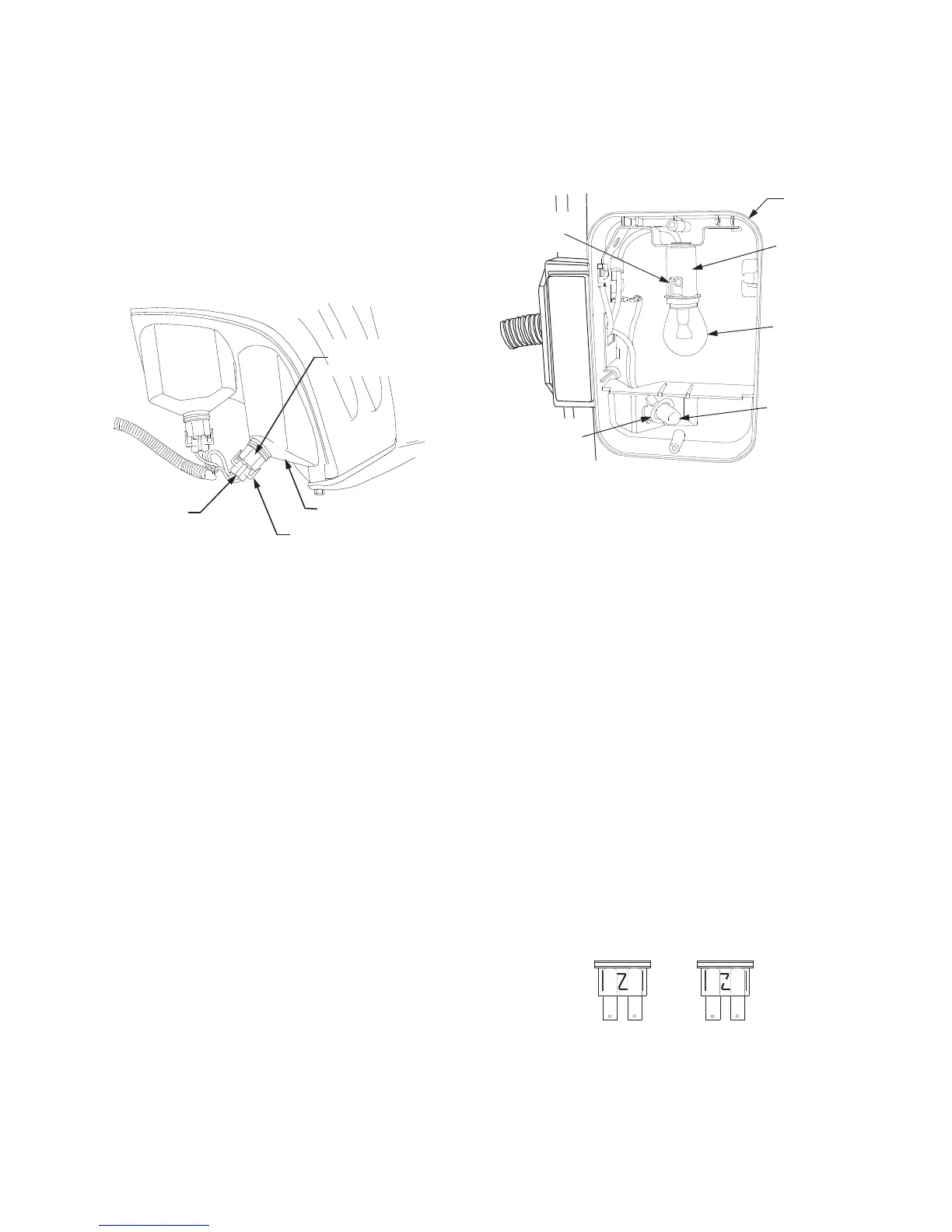

Figure 37
• Turn the bulb/socket assembly approximately a
quarter turn counterclockwise to align its tabs
with the notches of the reflector, then remove
from the reflector.
• Replace with a new bulb/socket assembly (Cub
Cadet No. 725-3161A).
• Align the tabs of the new bulb/socket assembly
with the notches of the reflector and insert the
bulb.
• Turn the bulb/socket assembly clockwise to
lock in place. Plug the wire harness into the
socket, making sure the plug locking tabs lock
onto the socket assembly.
TAIL LIGHT/HAZARD LIGHT BULB
REPLACEMENT
Each hazzard light assembly has two light bulbs —
the hazzard light bulb and the taillight bulb.
Replace the taillight bulb or hazzard light bulb as
follows:
• Remove the two screws fastening the rear
lense (amber and red) to the hazzard light
housing.
• Remove the taillight bulb by simply pulling the
bulb from the taillight socket. Replace with a
like bulb. Align the bulb terminals with the
socket terminals, and push the new bulb fully
into the socket. Refer to Figure 38.
Figure 38
• To remove the hazzard bulb, push the bulb
upward in the socket and turn counterclockwise
to remove the bulb from the light socket. Refer
to Figure 38.
• Replace with a like bulb.
• Align the post of the new bulb with the slot in
the socket, push the bulb into the socket, and
turn clockwise to lock it in the socket.
• Position the rear lense in the housing and
secure with the two screws removed earlier.
SERVICING ELECTRICAL SYSTEM
Fuses are installed to protect the tractor’s electrical
system from damage caused by excessive amper-
age. Always use the same capacity fuse for
replacement. If the electrical system does not func-
tion, check for blown fuses. See Figure 39
If you have a recurring problem with blown fuses,
have the tractor’s electrical system checked by your
Cub Cadet dealer.
Figure 39
BULB/SOCKET
ASSEMBLY.
WIRE
HARNESS
PLUG
LOCKING TAB
REFLECTOR
HAZZARD
HAZZARD
BULB
TAILLIGHT
BULB
SOCKET
HOUSING
TAILLIGHT
SOCKET
SOCKET
SLOT
GOOD
BAD
