SECTION 1: CONTROLS AND FEATURES
SWITCHES AND DASH MOUNTED CONTROLS

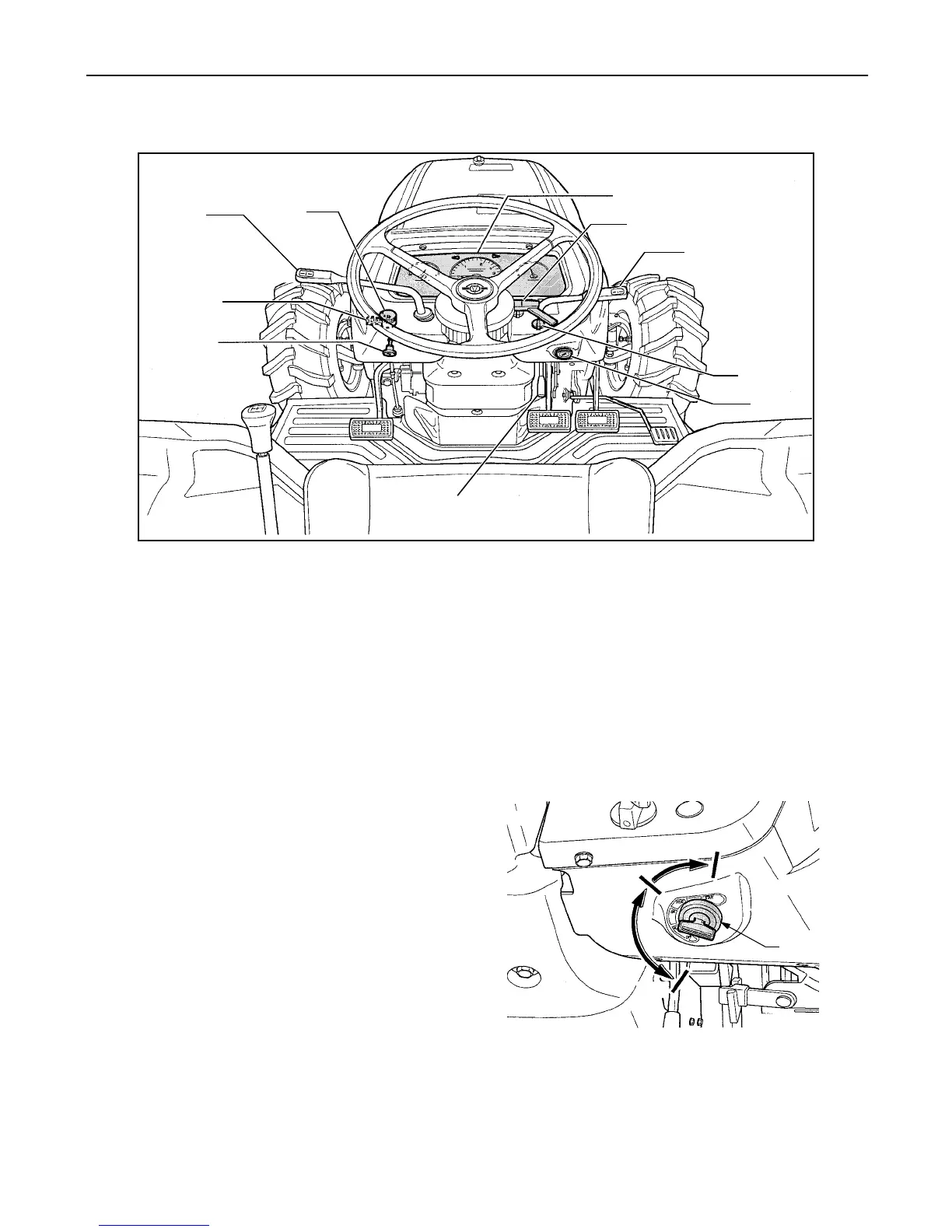

Figure 1
A. Ignition Switch
NOTE: To prevent accidental starting and/or battery
discharge, remove the key from the ignition switch
when the tractor is not in use.
The ignition switch has four positions turning
clockwise as follows (Refer to Figure 2):
OFF - The engine and electrical system is turned off.
ACC - Energizes the accessory circuit.
ON/HEAT - Energizes the tractor’s electrical system.
Warning lamps on the instrument panel are
momentarily illuminating to test the system. Engine
glowplugs are also energized to preheat the
combustion chamber.
START - Activates the starter motor to turn over and
start the engine. When the engine starts release the
key immediately and it will return to the ON position.
NOTE: The safety circuit will prevent the starter from
turning if the clutch pedal is not depressed.
Figure 2
Start
On/Heat
Off
IGNITION
SWITCH
A
B
C
D
E
F
G
H
I
J
F.
G.
H.
I.
J.
Ignition Switch
Light Switch
Turn Signal Switch
Hazard Lamp Switch
PTO Switch
Steering Tilt Lock Lever
Parking Brake Lever
Forward/Reverse Shift Lever
Hand Throttle Lever
Instrument Panel
A.
B.
C.
D.
E.

Cub Cadet 8404 Specifications
