Belt Replacement
To remove and replace either the auger belt or the drive belt,
follow the steps below and then proceed to the specific steps
listed under respective sub-headings.

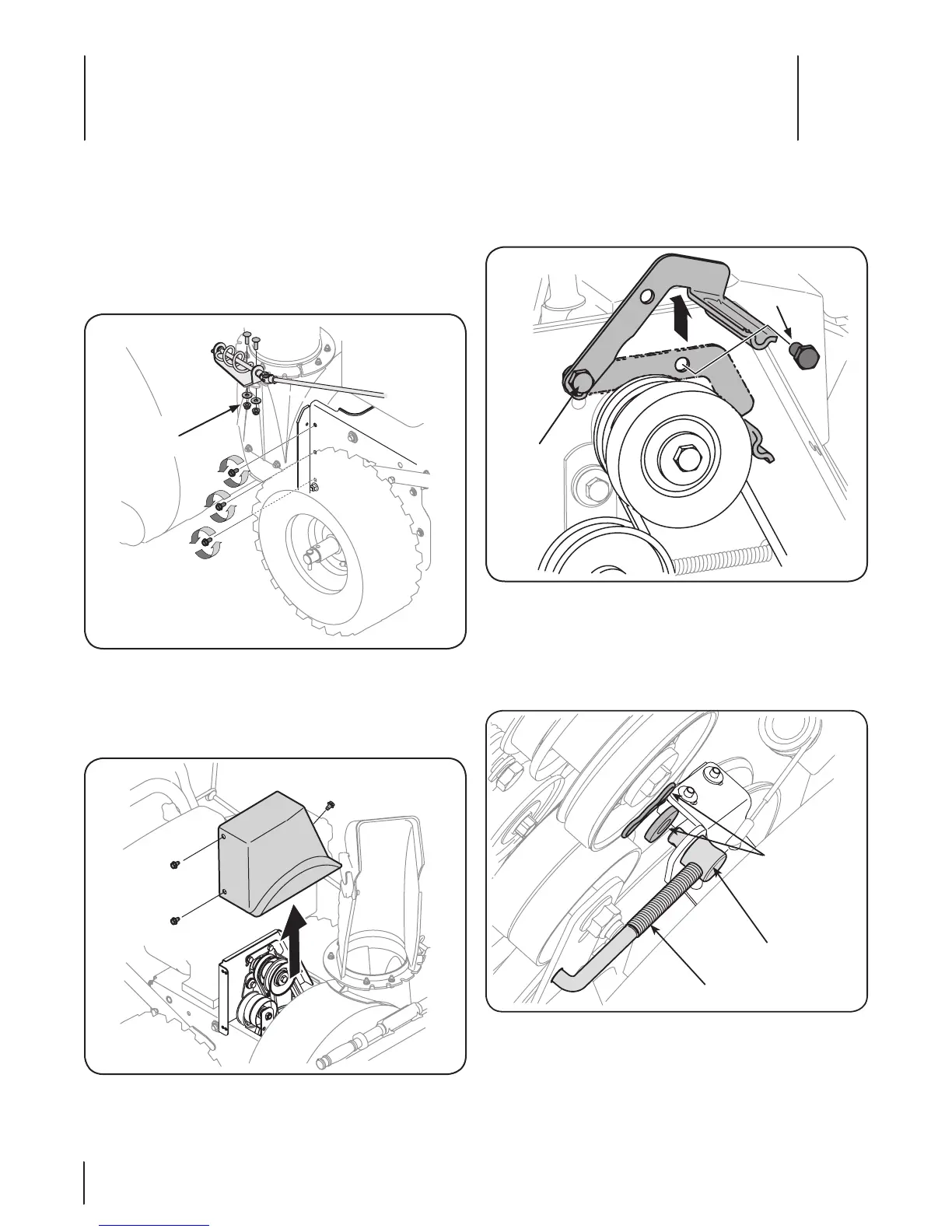

Disconnect the chute crank assembly by removing the two 1.
nuts which secure the chute bracket to the chute adapter.
See Figure 7-1.
Remove the plastic belt cover, located near the engine, by 2.
removing the three self-tapping screws that secure it. See
Figure 7-2.
Loosen the bolt shown in Figure 7-3 securing 3.
the belt keeper bracket and remove the other
bolt. Push the belt keeper and bracket up off the
engine pulley.
Auger Belt Replacement
Remove the clip and flat washer from the ferrule in order 1.
to disconnect the auger idler rod from the brake bracket
assembly. See Figure 7-4.
Slip the auger belt (the front belt) off the engine pulley. 2.
Figure 7-4
Figure 7-1
Figure 7-2
Figure 7-3
Ferrule
Auger Idler Rod
Hairpin
Clip and
Washer
Service
7
18
