11Section 3 — ASSembly & Set-Up
4. Lift chute door on the grass bag adapter and slide grass
bag onto the adapter. See Fig. 3-6.
Side Discharge Chute
Follow steps below to install the side discharge chute:
1. Remove mulching baffle or grass bag adapter from unit by
disconnecting wing nuts.
2. Attach side discharge chute to unit and secure with the
three wing nuts. See Fig. 3-7.
Adjustments
Cutting Height
The cutting height adjustment lever is located above the rear left
wheel. See Fig. 3-8A insert.
1. Pull lever out and away from mower.
2. Move lever forward or back for desired cutting height.
3. Release lever towards mower deck.
The front wheel cutting height is determined by selecting one
of six positions on each caster assembly. To adjust front cutting
height, refer to Fig. 3-8B and proceed as follows:
1. Remove wing nut from axle bolt. Slide axle bolt and wave
washer from the assembly and select a cutting height.
2. With wave washer on axle bolt, reinsert hardware in the
square hole desired through wheel assembly and secure
with wing nut previously removed.
IMPORTANT: All wheels must be placed in the same
relative position. For rough or uneven lawns, move the
height adjustment lever to a higher position. This will stop
scalping of grass.
The casters can be locked in a straight ahead position or position
to swivel freely. See Figure 3-8C insert.
1. Lift lock pins.
2. Place in larger holes to lock wheels. Place pins in smaller
holes to allow casters to rotate freely for turning.

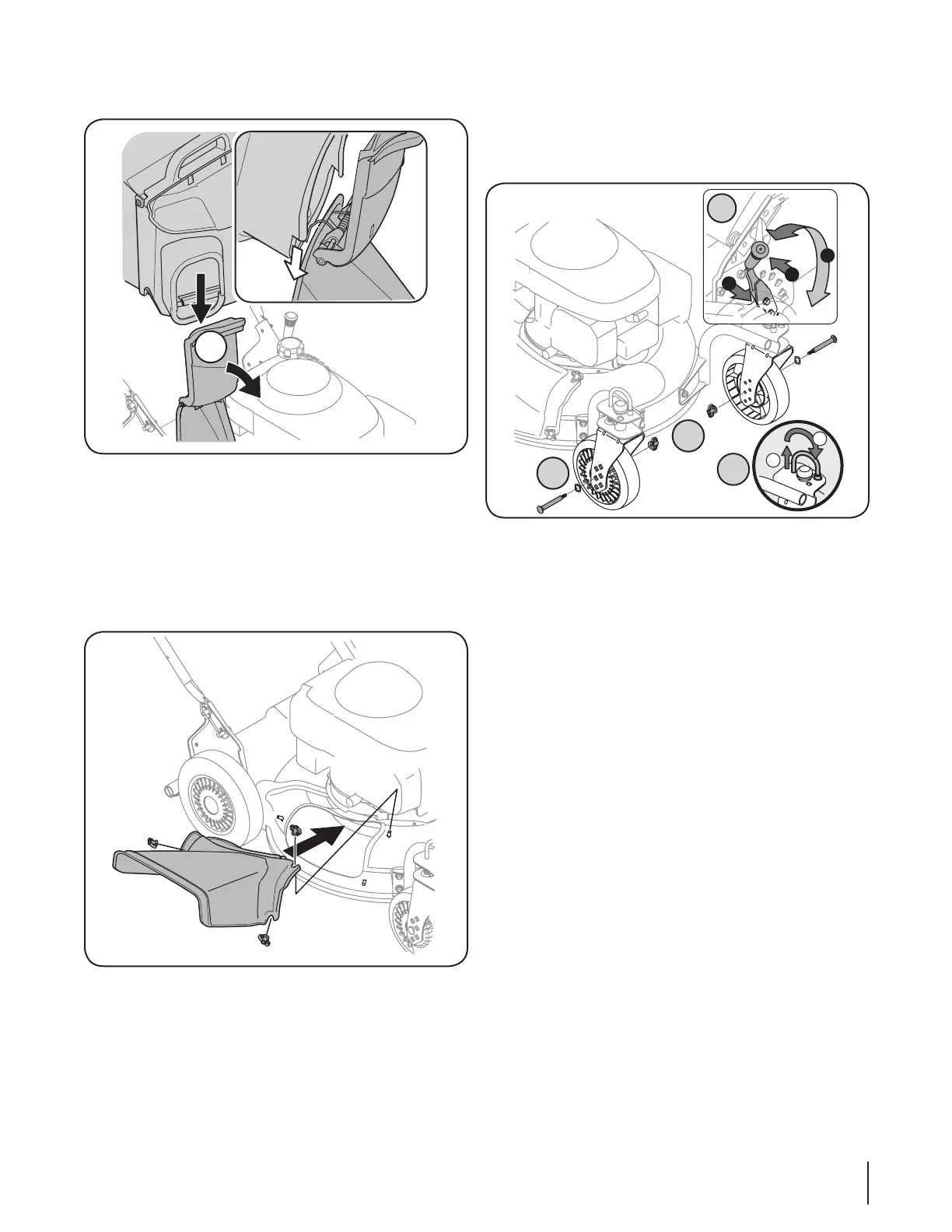

Figure 3-8
Figure 3-6
Figure 3-7
