7
SECTION 2: KNOW YOUR UTILITY VEHICLE
NOTE: Reference to right or left hand side of the utility vehicle is observed from the operating position.

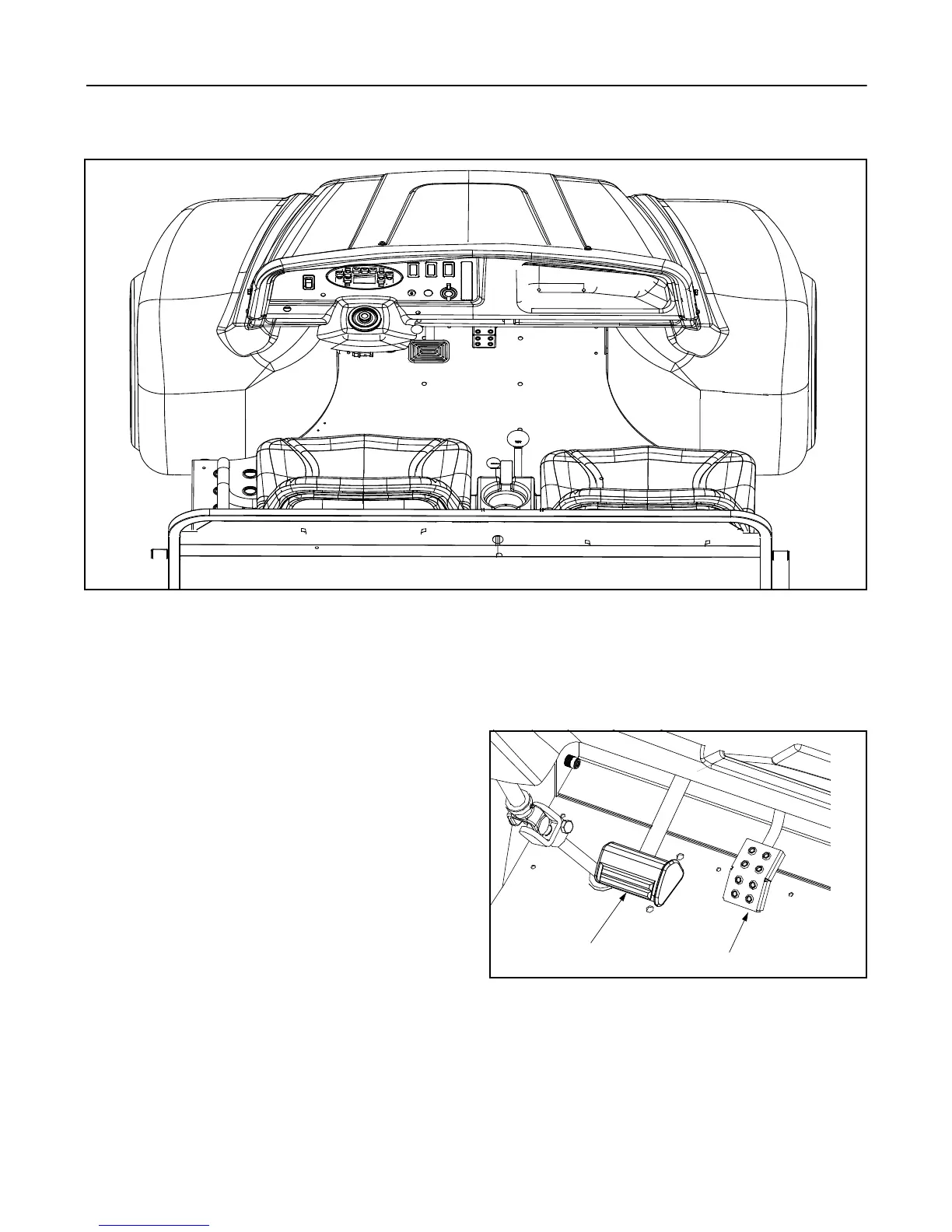

Figure 1
Read this operator’s manual, safety labels, and
operating instructions on the vehicle before operating.
Compare the illustrations in this manual with your unit
to familiarize yourself with the location of various
controls and adjustments. Reference to the right or left
hand side of unit is observed from the operating
position. Save this manual for future reference.
See Figure 1.
Read the Kohler Engine operator’s manual before
operating this vehicle to familiarize yourself with the
engine controls and adjustments.
NOTE: Before operating your vehicle, follow the
starting instructions in the Operating Section and
check tire pressure per the recommendations in the
Maintenance Section.
Accelerator Pedal
The accelerator pedal is located on the right side of the
floor beneath the dash panel. Depressing the
accelerator pedal will move the vehicle in the direction
selected on the gearshift. As the pedal is depressed,
speed will increase to the maximum selected range.
Releasing the pedal reduces the speed, but does not
stop the vehicle. The brake must be applied to stop
vehicle. See Figure 2.
Brake Pedal
The brake pedal is located on the left side of the floor
beneath the dash panel. Remove foot from accelerator
pedal and apply pressure to the brake pedal evenly
until vehicle slows down and stops. See Figure 2.
Figure 2
Parking Brake Latch
The parking brake latch is located on the dash panel to
the right of the steering wheel. It holds the brake in the
engaged position for parking. See Figure 3.
Brake Pedal
Accelerator Pedal
