Cutting Deck Removal
To remove the cutting deck, proceed as follows:
Place the PTO/Blade Engage knob in the disengaged (OFF) 1.
position and engage the parking brake.
Lower the deck by moving the deck lift lever into the 2.
bottom notch on the right fender.

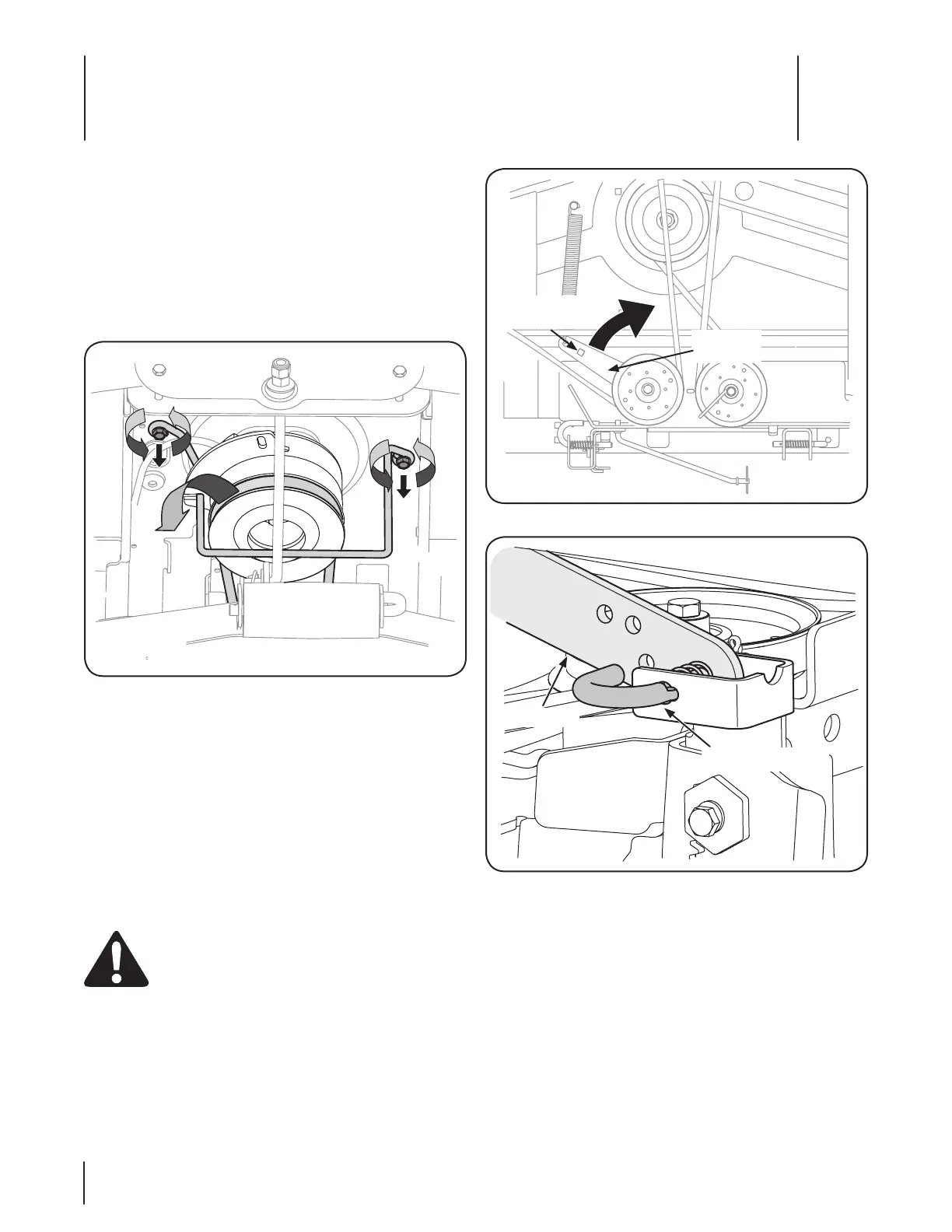

Locate the PTO clutch under the front of your tractor. See 3.
Fig. 7-1.
Remove the belt guard and belt as follows Refer to Fig. 7-1:4.
Remove the hex screws.a.
Pull the belt keeper rod to the right and down to b.
remove.
Remove the deck belt from around the tractor’s c.
electric PTO clutch.
NOTE: If there is too much tension on the belt for it to be easily
removed from the electric PTO clutch, carefully insert a ⁄” drive
ratchet wrench (set to tighten) into the square hole found in the
left-hand deck idler bracket and pivot it toward the tractor’s right
side to relieve tension on the belt. See Fig. 7-2.
WARNING! Avoid pinching injuries. Never place
your fingers on the idler spring or between the belt
and a pulley while removing the belt.
Looking at the cutting deck from the left side of the tractor, 4.
locate the deck support pin on the rear left side of the
deck.
Pull the deck support pin outward to release the deck from 5.
the deck lift arm. See Fig. 7-3.
Repeat the above steps on the tractor’s right side.6.
Move the deck lift lever into the top notch to raise the deck 7.
lift arms up and out of the way.
Remove the cotter pin from the end of the stabilizer rod 8.
and slide the stabilizer out of the hanger bracket on the
deck. See Fig. 7-4.
Gently slide the cutting deck (from the right side) out from 9.
underneath the tractor.
Figure 7-1
Deck Idler
Bracket
Insert Ratchet
Here
Figure 7-2
Deck Lift Arm
Deck Support Pin
Figure 7-3
Service
7
24
