38

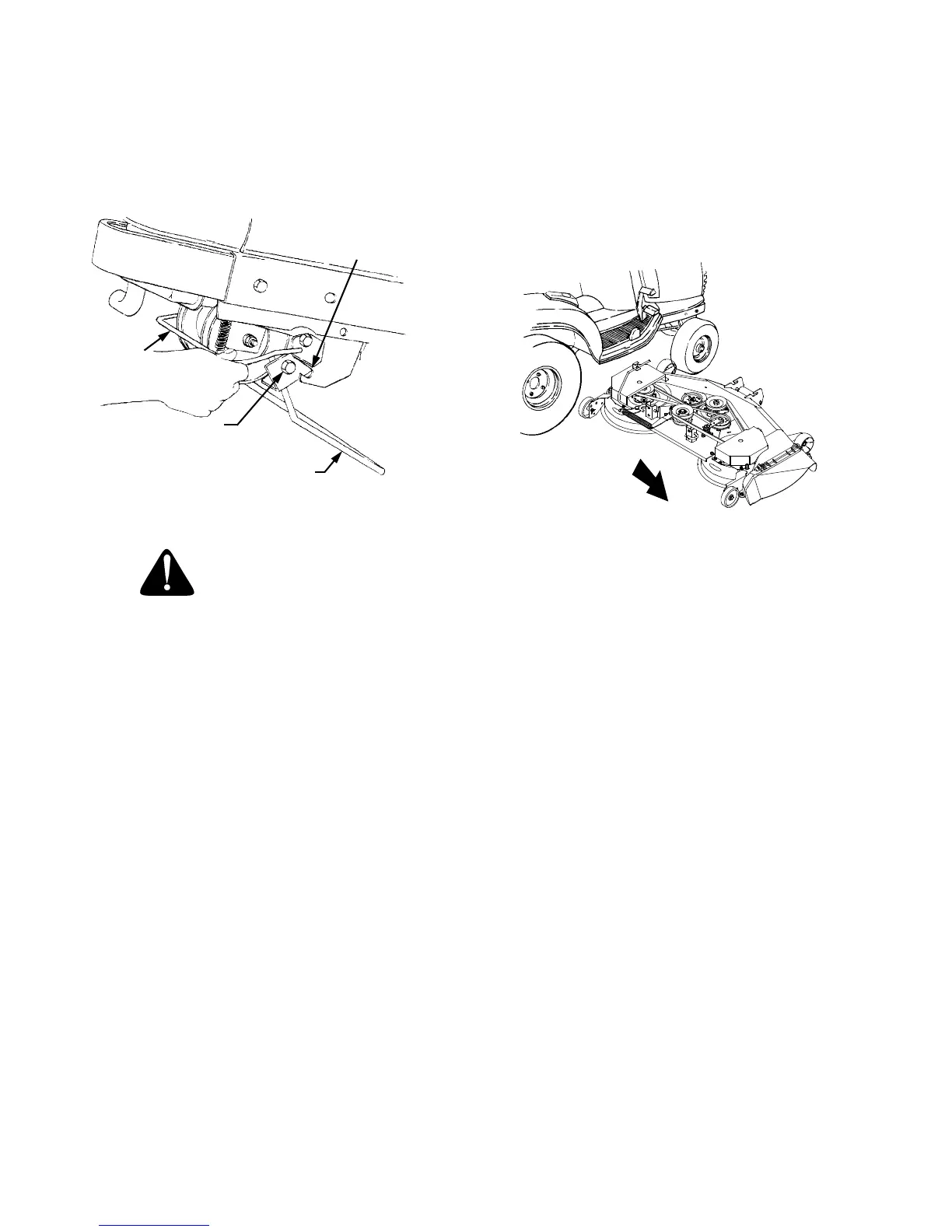

9. From the front of the tractor, push downward and
hold the tractor quick-attach rod. Pull the front lift
rod/bracket assembly forward to release the
shoulder bolts on each side of the bracket from
the left and right tractor latch receivers. Release
the tractor quick-attach rod ( See Figure 46).
Figure 46
CAUTION
To avoid possible equipment damage, make
sure that the tractor implement lift handle is
raised to its highest setting before sliding the
deck out from under the tractor.
NOTE: To aid in sliding the deck out from under the
tractor, turn the steering wheel as needed to obtain more
room as you maneuver the deck from under the tractor.
10. With the tractor implement lift handle raised to its
highest setting, slide the deck to the right and out
from under the tractor (See Figure 47).
Figure 47
11. Connect the spark plug wires and close the
tractor hood.
QUICK
ATTACH
ROD
SHOULDER BOLT
(BOTH SIDES)
FRONT LIFT
ROD/BRACKET
ASSEMBLY
TRACTOR
LATCH RECEIVER
(BOTH SIDES)
SLIDE
OUT
