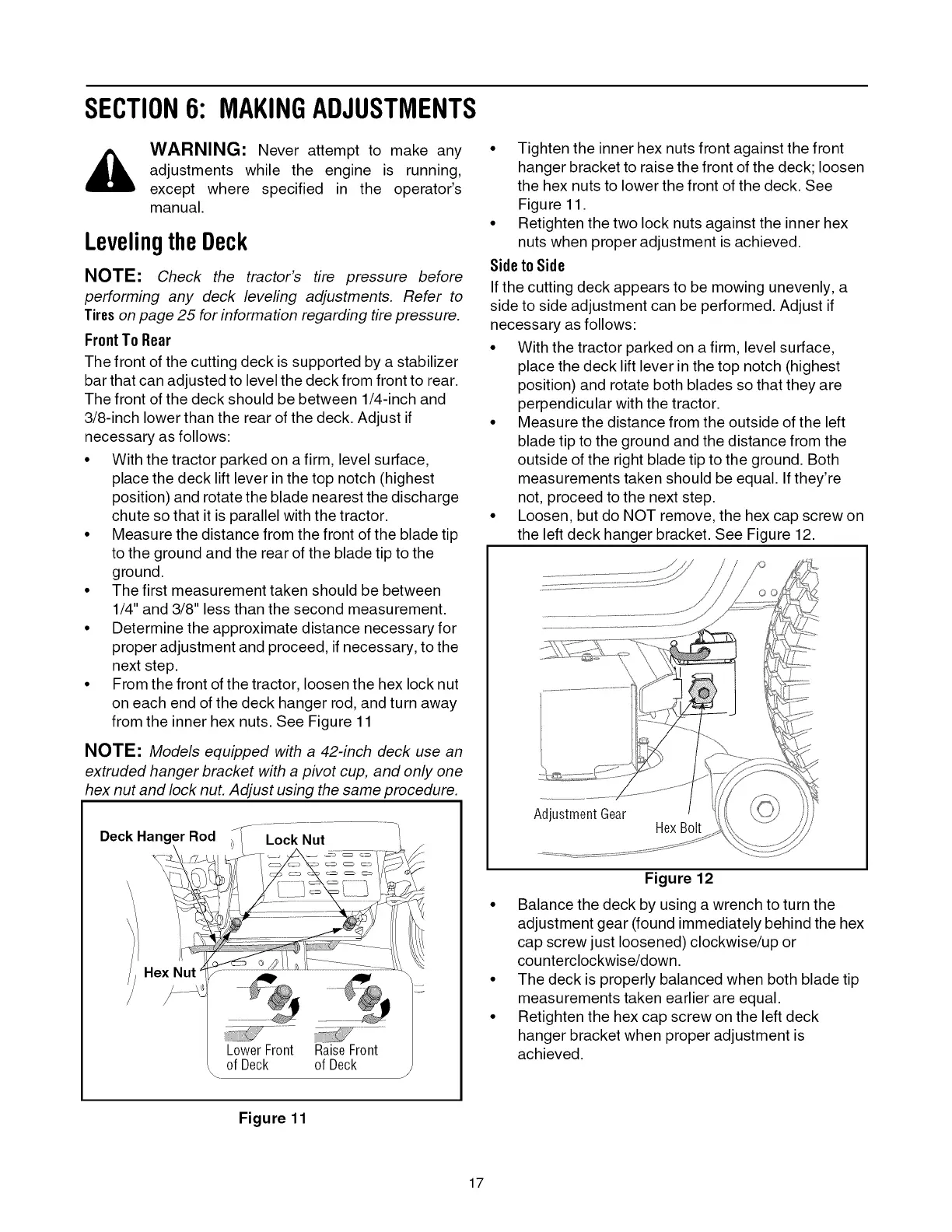

SECTION6: MAKINGADJUSTMENTS
_, WARNING: Never attempt to make any
adjustments while the engine is running,
except where specified in the operator's
manual.
LevelingtheDeck
NOTE: Check the tractor's tire pressure before
performing any deck leveling adjustments. Refer to
Tires on page 25 for information regarding tire pressure.
FrontTo Rear
The front of the cutting deck is supported by a stabilizer
bar that can adjusted to level the deck from front to rear.
The front of the deck should be between 1/4-inch and
3/8-inch lower than the rear of the deck. Adjust if
necessary as follows:
• With the tractor parked on a firm, level surface,
place the deck lift lever in the top notch (highest
position) and rotate the blade nearest the discharge
chute so that it is parallel with the tractor.
• Measure the distance from the front of the blade tip
to the ground and the rear of the blade tip to the
ground.
• The first measurement taken should be between
1/4" and 3/8" less than the second measurement.
• Determine the approximate distance necessary for
proper adjustment and proceed, if necessary, to the
next step.
• From the front of the tractor, loosen the hex lock nut
on each end of the deck hanger rod, and turn away
from the inner hex nuts. See Figure 11
NOTE: Models equipped with a 42-inch deck use an
extruded hanger bracket with a pivot cup, and only one
hex nut and lock nut. Adjust using the same procedure.
Deck Hanger Rod
Hex Nut _
LowerFront RaiseFront
of Deck ofDeck
• Tighten the inner hex nuts front against the front
hanger bracket to raise the front of the deck; loosen
the hex nuts to lower the front of the deck. See
Figure 11.
• Retighten the two lock nuts against the inner hex
nuts when proper adjustment is achieved.
Sideto Side
If the cutting deck appears to be mowing unevenly, a
side to side adjustment can be performed. Adjust if
necessary as follows:
• With the tractor parked on a firm, level surface,
place the deck lift lever in the top notch (highest
position) and rotate both blades so that they are
perpendicular with the tractor.
• Measure the distance from the outside of the left
blade tip to the ground and the distance from the
outside of the right blade tip to the ground. Both
measurements taken should be equal. If they're
not, proceed to the next step.
• Loosen, but do NOT remove, the hex cap screw on
the left deck hanger bracket. See Figure 12.
AdjustmentGear
Hex Bolt
Figure 12
• Balance the deck by using a wrench to turn the
adjustment gear (found immediately behind the hex
cap screw just loosened) clockwise/up or
counterclockwise/down.
• The deck is properly balanced when both blade tip
measurements taken earlier are equal.
• Retighten the hex cap screw on the left deck
hanger bracket when proper adjustment is
achieved.
Figure 11
17
To Next Page
