Changing the Deck Belt
WARNING! Shut the engine off and remove
ignition key before removing the cutting blade(s) for
using heavy gloves when grasping blades and
pulleys.
WARNING! The V-belts found on your tractor are
specially designed to engage and disengage safely.
not disengaging completely. For a proper working
machine, use factory approved belts.
All belts on your tractor are subject to wear and should be
replaced if any signs of wear are present . To change or replace
the deck belt on your tractor, proceed as follows:
Remove the deck as instructed on page 24.
Remove the belt guards by removing the hex screws that 2.
fasten them to the deck. See Fig. 7-7.
Loosen, but do not remove the belt keeper rod on the
pulley located near the back of the deck. See Fig. 7-7
Carefully remove the deck belt from around the three 4.
spindle pulleys and the two deck idler pulleys.
Fuse
WARNING! Before servicing, repairing, or
brake, stop engine and remove key to prevent
unintended starting.
excessive amperage.
will not crank, first check to be certain that the fuse has not
blown. It is located under the hood, mounted behind the top of
the dash panel on the support bar.
CAUTION: Always use a replacement fuse with the
same amperage capacity as the blown fuse.
Tires
WARNING! Never exceed the maximum inflation
pressure shown on the sidewall of the tire.
maximum psi. Do not overinflate.
Uneven tire pressure could cause the cutting deck to mow
unevenly.
Changing the Transmission Drive Belt
Several components must be removed and special tools used in
Cub Cadet dealer to have the transmission drive belt replaced.
Belt Guards
Hex Screws
Belt Keeper Rod
Deck Idler Pulley

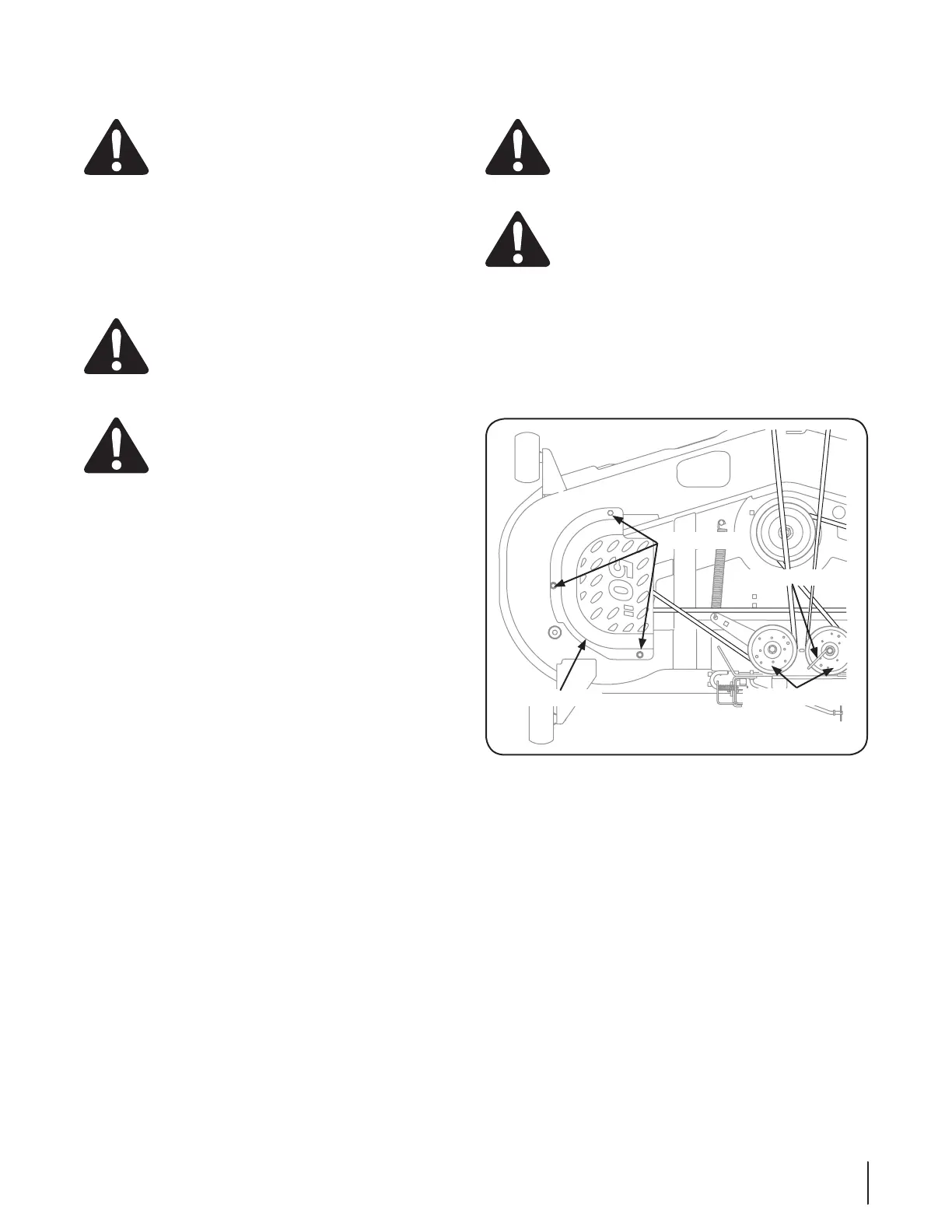

Figure 7-7
27se c t i O n 7 — se r v i c e
