Pull the deck support pin outward to release the deck from 6.
the deck lift arm. See Fig. 7-3.
Repeat the above steps on the tractor’s right side.7.
Move the deck lift lever into the top notch to raise the deck 8.
lift arms up and out of the way.
Remove the cotter pin from the end of the stabilizer rod 9.
and slide the stabilizer out of the hanger bracket on the
deck. See Fig. 7-4.
Gently slide the cutting deck (from the right side) out from 10.
underneath the tractor.
Deck Lift
Arm
Deck Support
Pin

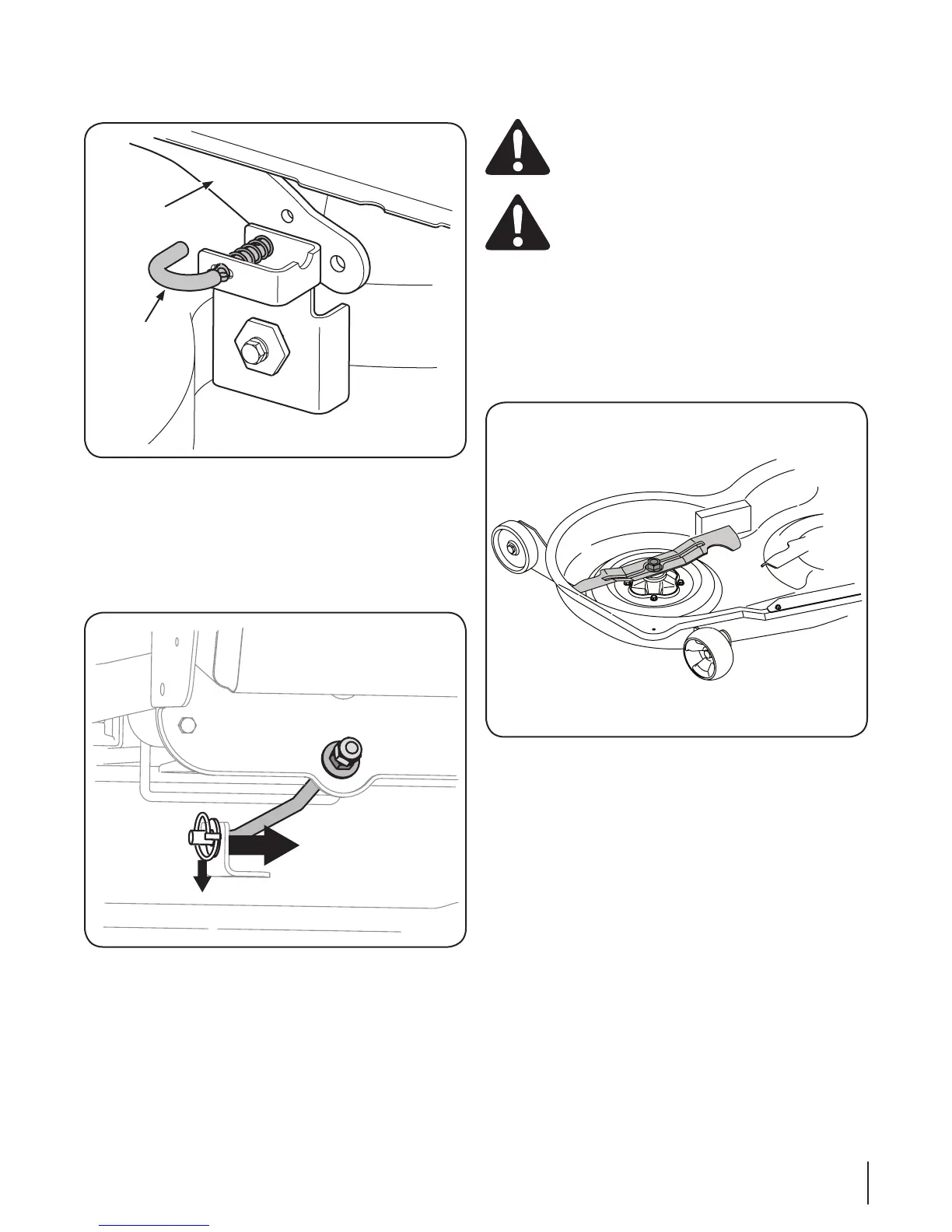

Figure 7-3
Cutting Blades
WARNING! Shut the engine off and remove
ignition key before removing the cutting blade(s) for
sharpening or replacement. Protect your hands by
using heavy gloves when grasping the blade
WARNING! Periodically inspect the blade and/or
spindle for cracks or damage, especially after you’ve
struck a foreign object. Do not operate the machine
until damaged components are replaced.
To remove the blades, proceed as follows.
Remove the deck from beneath the tractor, (refer to 1.
Cutting Deck Removal earlier in this section) then gently
flip the deck over to expose its underside.
Place a block of wood between the center deck housing 2.
baffle and the cutting blade to act as a stabilizer.
See Fig. 7-5.
Remove the hex flange nut that secures the blade to the 3.
spindle assembly. See Fig. 7-5.
Figure 7-5
Figure 7-4
25Se c t i o n 7 — Se r v i c e
