CSG 600 SLIDING GATE OPERATOR USER’S MANUAL

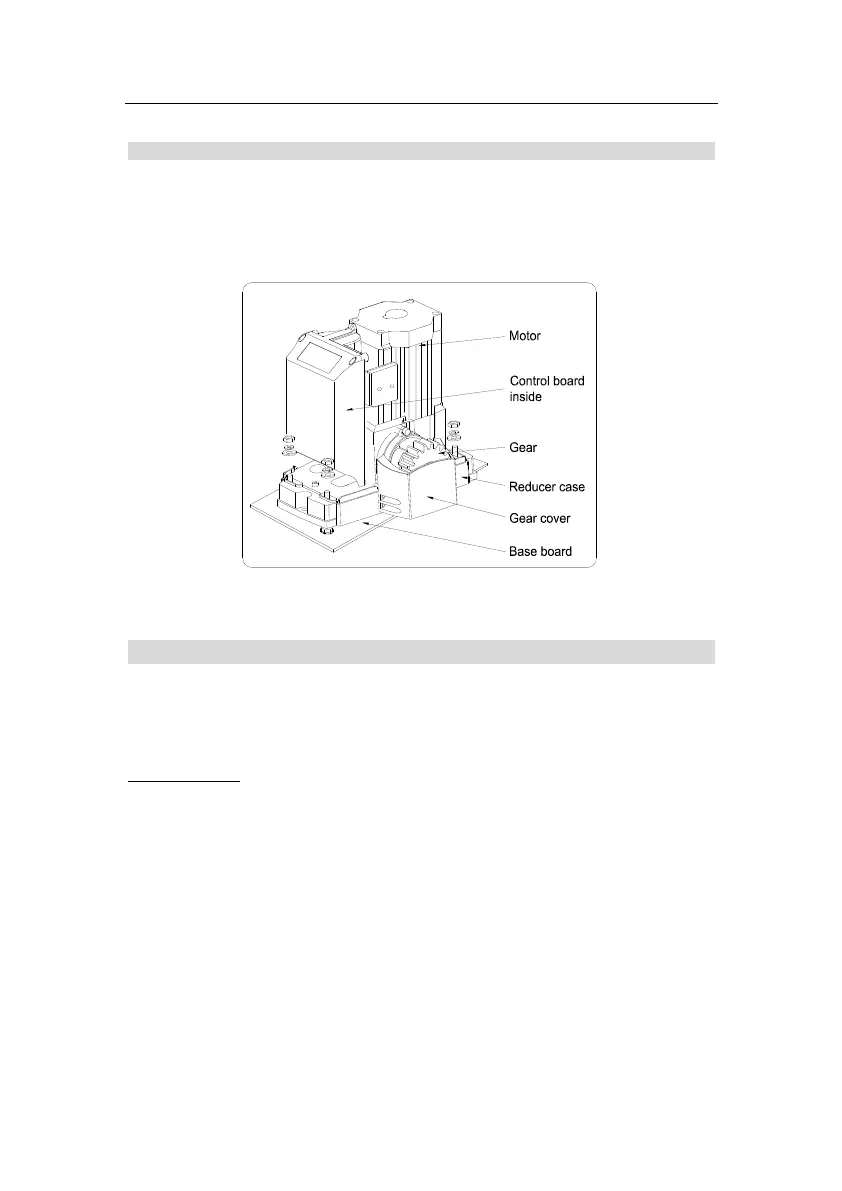

3. Working Principle and Main Structure
CSG 600 all-in-one multifunctional sliding gate operator integrated the electric control board
into the operator, it is composed of a single-phase motor, worm and worm gear, the main shaft
of the motor rotates the worm with the clutch engaged, the worm rotates the worm gear and
output gear, which pushes the rack attached to the sliding gate, thus moving the gate.
Fig.1
4. Installation and Adjustment
The CSG 600 rack-driven gate operator operates by forcing a drive rack past a drive gear. The
entire configuration is shown in Fig.2 . The gate operator must be installed on the inside of the
gate.
Gate preparation
Be sure the gate is properly installed and slides smoothly before installing the sliding gate
operator. The gate must be plumb, level, and move freely.

Cuppon CSG 600 Specifications

General

Brand	Cuppon
Model	CSG 600
Category	Gate Opener
Language	English
